Removal and Replacement

HEATER UNIT AND BLOWER ASSEMBLY

REMOVAL AND INSTALLATION

WARNING:
- Before removing the front seat assembly, and Air Bag Module and Clock Spring.
- When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle.

Pre-removal & Post-installation Operation:

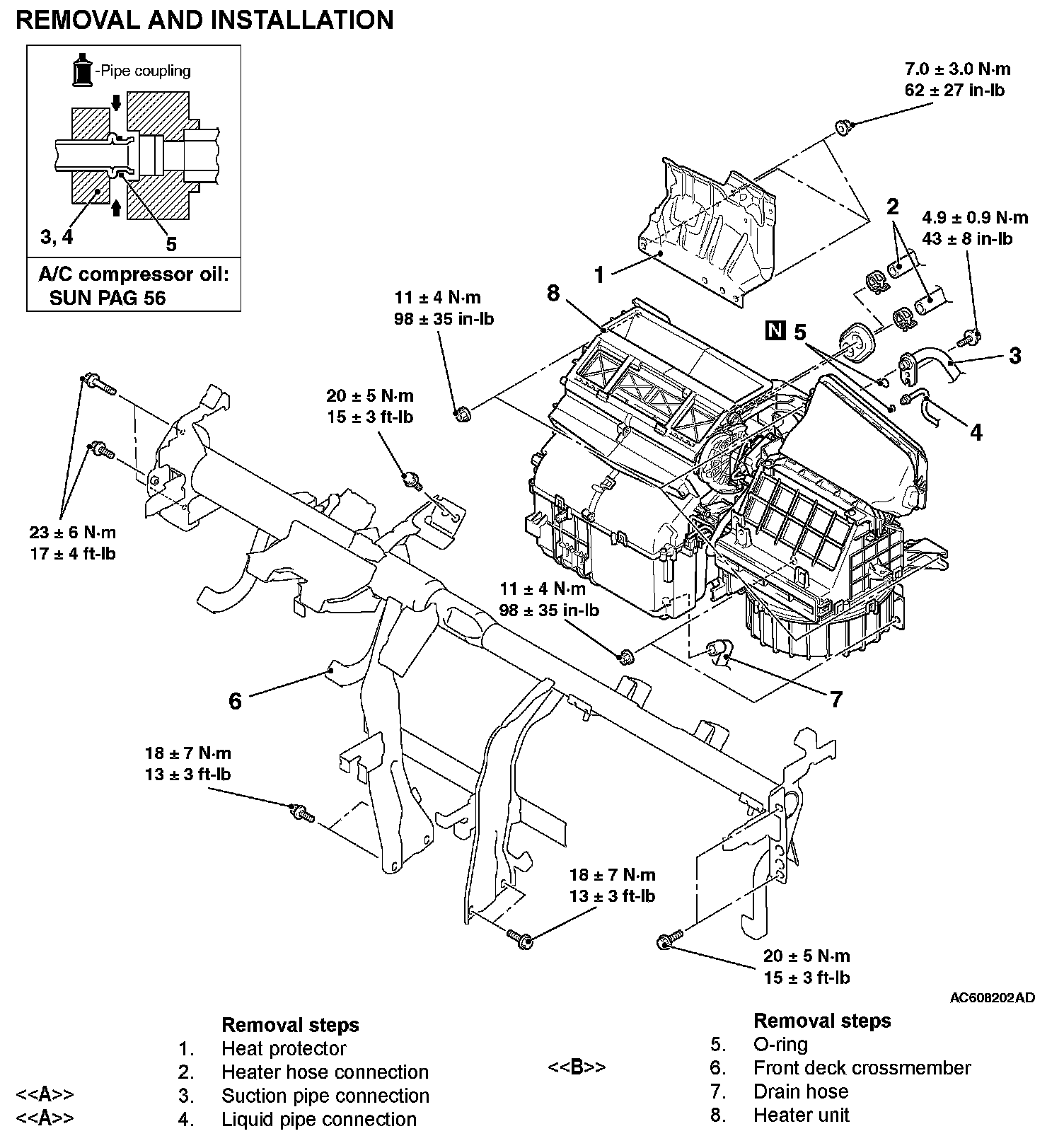

Removal Steps 1-8:

REMOVAL SERVICE POINTS

[[A]] SUCTION PIPE AND LIQUID PIPE DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.

[[B]] FRONT DECK CROSSMEMBER ASSEMBLY REMOVAL

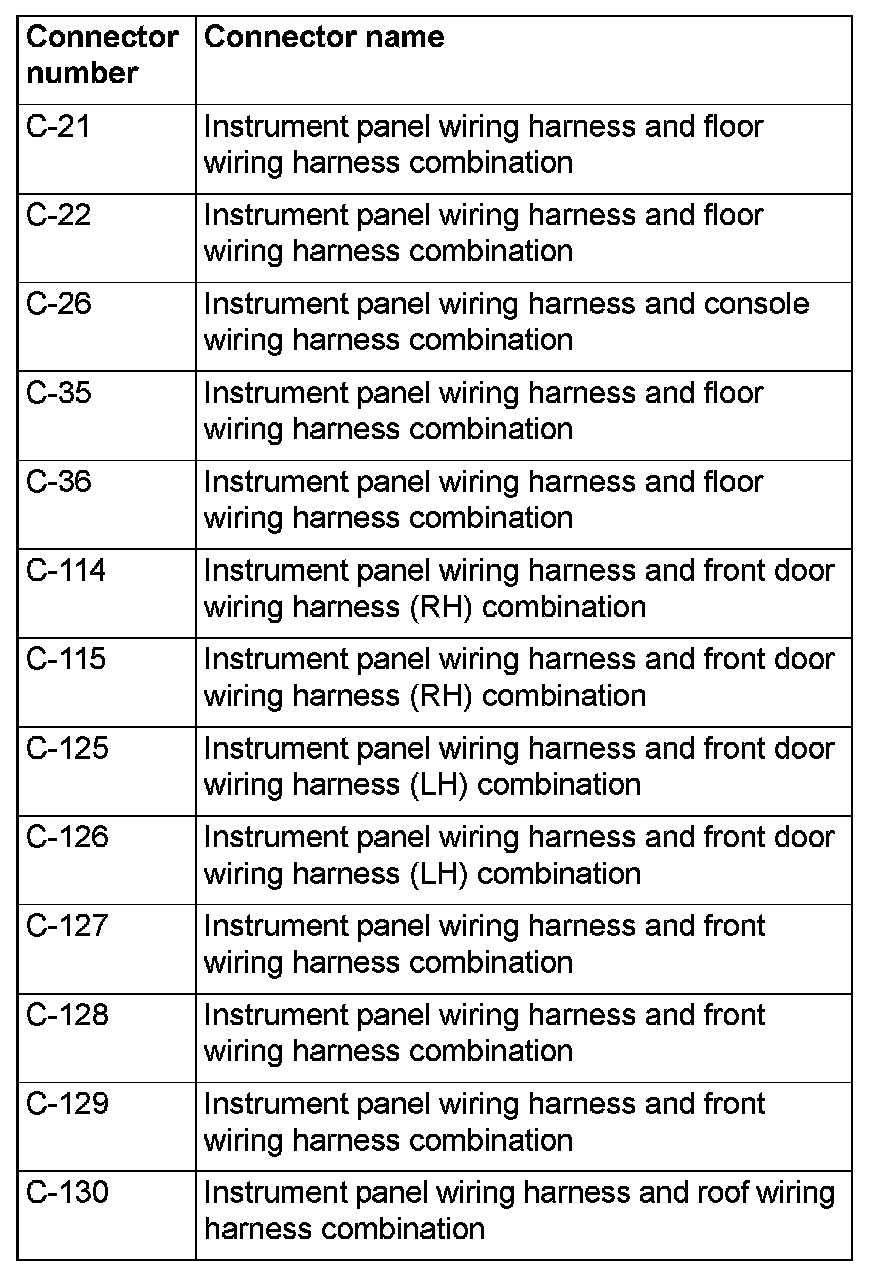

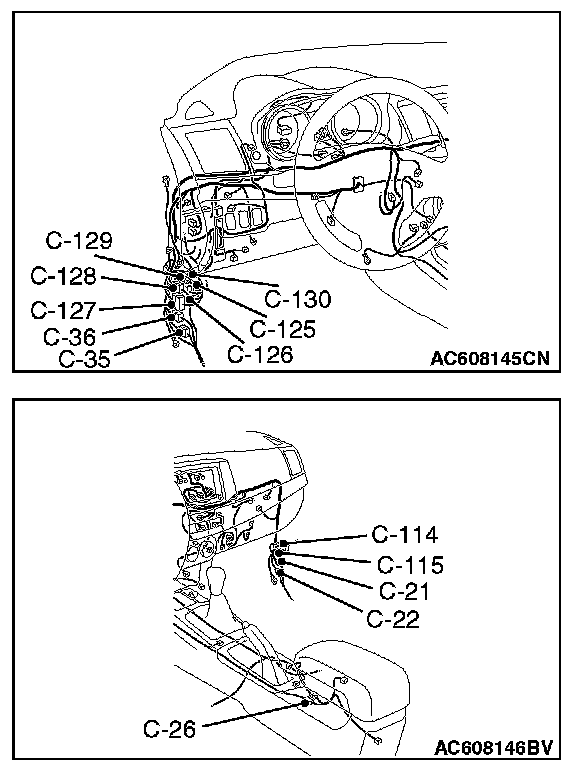

Disconnect the following connectors to gain access to the front deck crossmember.
