HEATER UNIT AND BLOWER ASSEMBLY
DISASSEMBLY AND REASSEMBLY

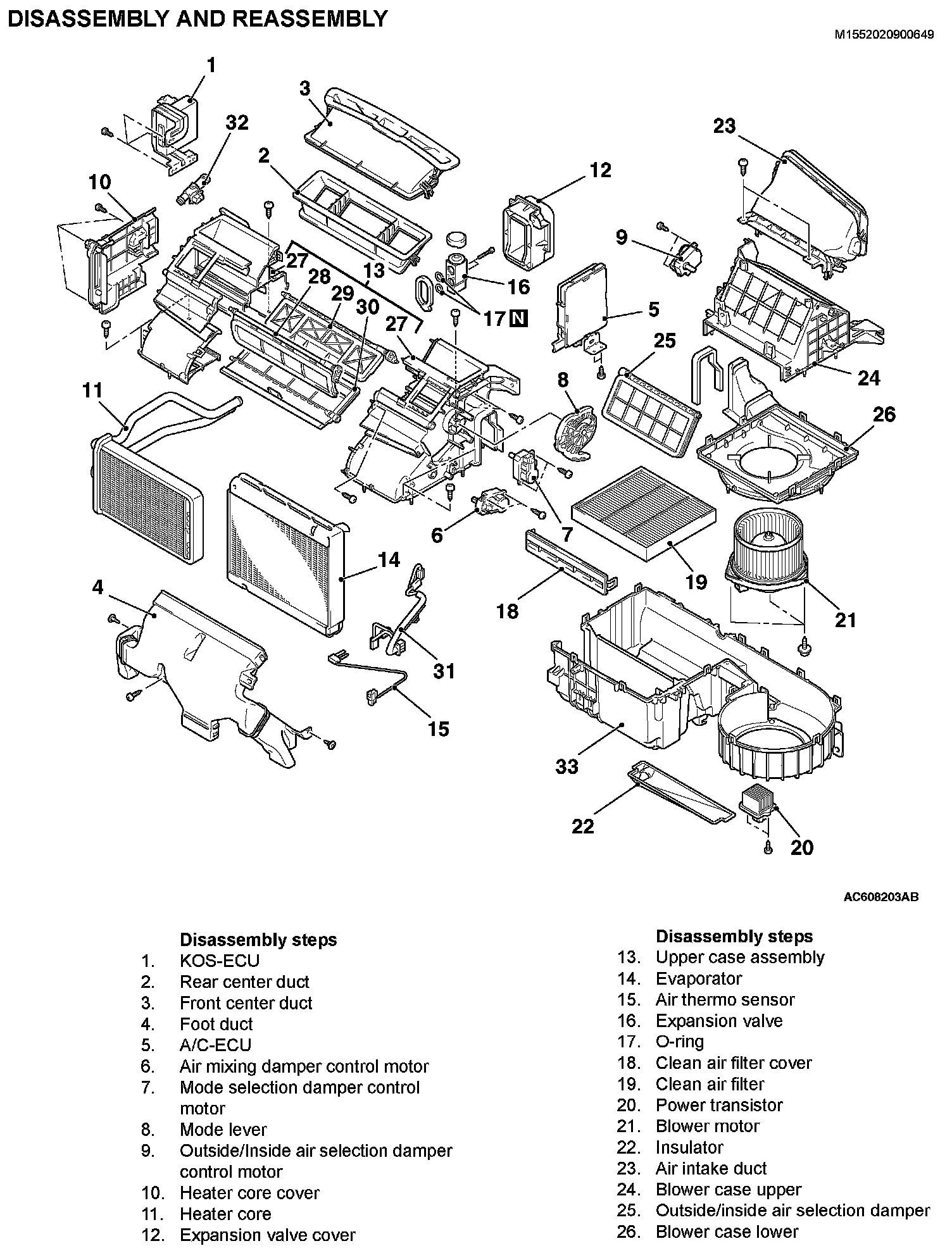

Disassembly Steps 1-33 (Part 1):

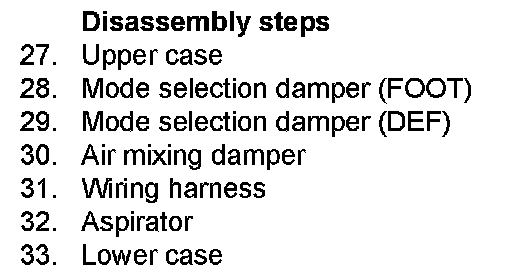

Disassembly Steps 1-33 (Part 2):
