Overhaul

COMPRESSOR ASSEMBLY [Except RALLIART]

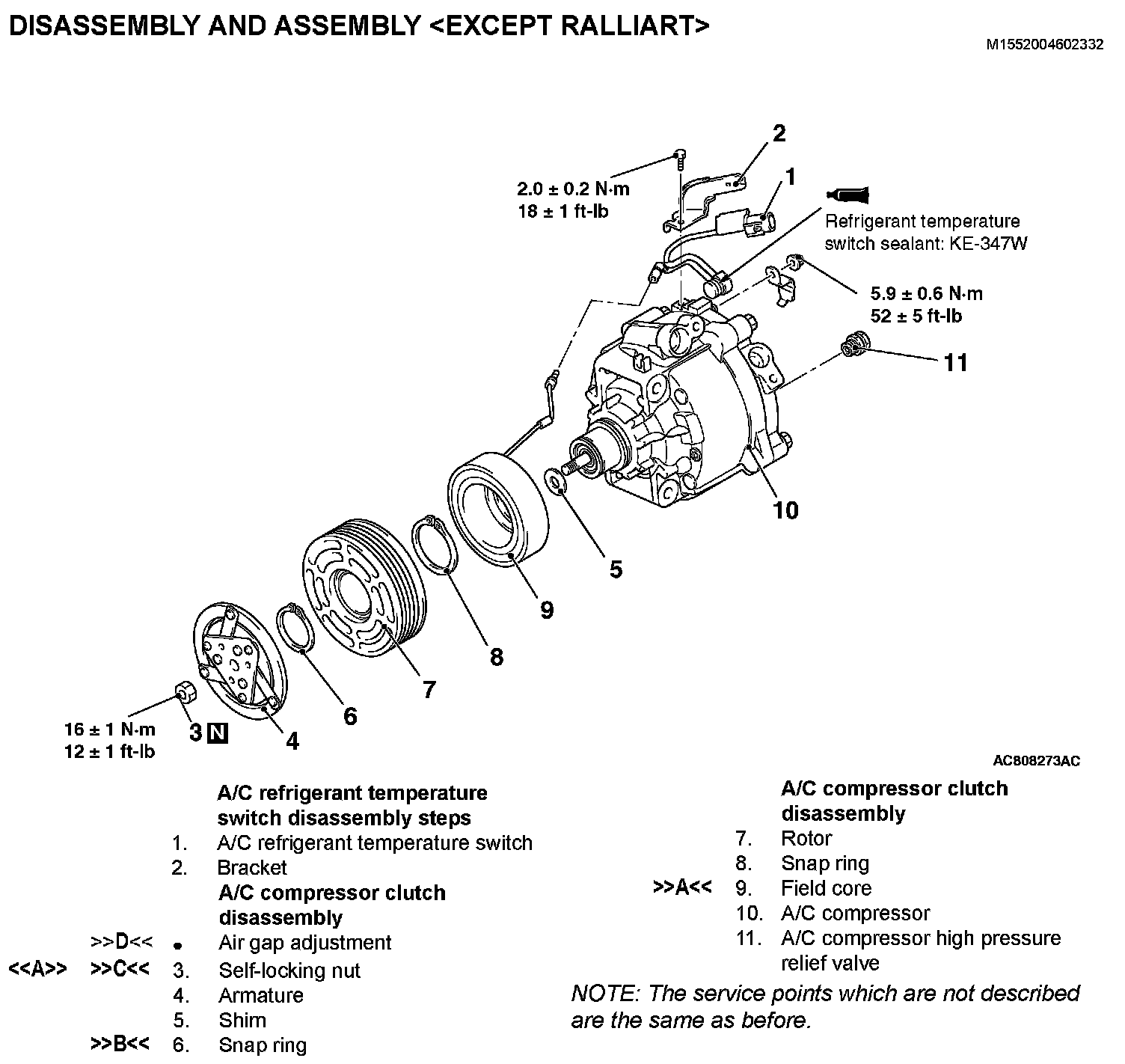

DISASSEMBLY AND ASSEMBLY [EXCEPT RALLIART]

Disassembly Steps 1-11:

DISASSEMBLY SERVICE POINT

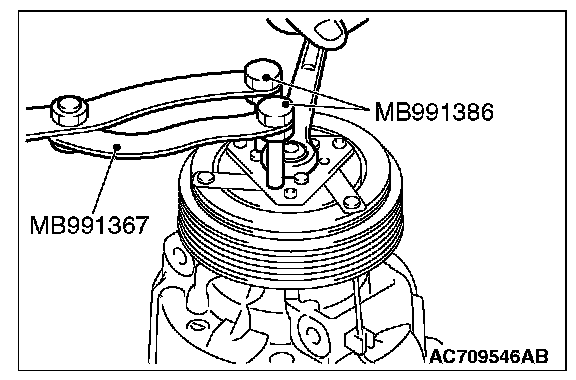

[[A]] SELF-LOCKING NUT REMOVAL







ASSEMBLY SERVICE POINTS

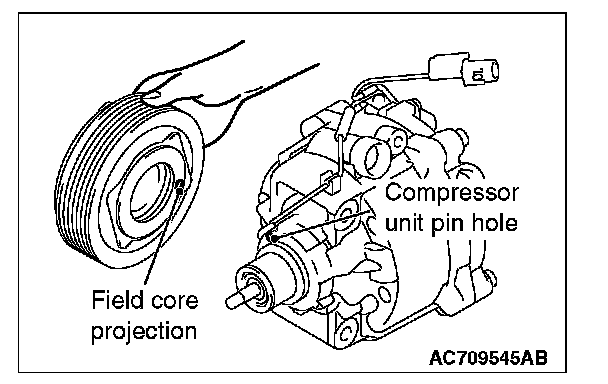

]]A[[ FIELD CORE ATTACHMENT







Line up the pin hole on the compressor unit with the field core projection and attach.

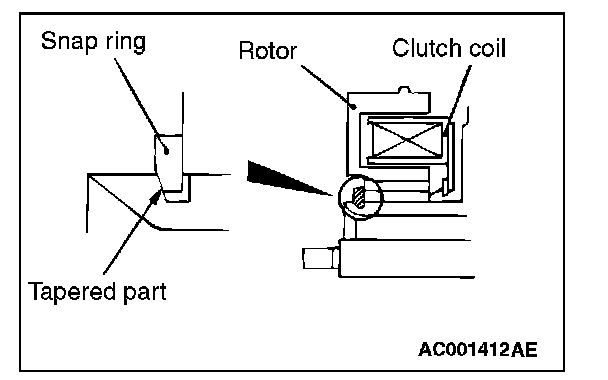

]]B[[ SNAP RING INSTALLATION







Using snap ring pliers, fit the snap ring so that the snap ring's tapered part is on the outside.

]]C[[ SELF-LOCKING NUT INSTALLATION







Using a special tool, as when removing the nut, secure the armature and tighten the self-locking nut.

]]D[[ AIR GAP ADJUSTMENT







Check whether or not the air gap of the clutch is within the standard value.

Standard value: 0.25 -0.45 mm (0.010 -0.017 inch)

NOTE: If there is a deviation of the air gap from the standard value, make the necessary adjustment by adjusting the number of shims.
