Air Door Actuator / Motor: Testing and Inspection

MOTORS AND TRANSISTOR

INSPECTION

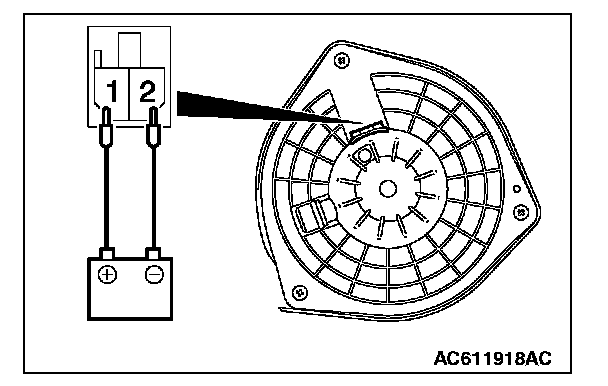

BLOWER MOTOR CHECK







Check that the motor turns when applying battery power between the connector terminals. Also check to see that there is no abnormal sound emitted from the motor at this time.
