Engine - Timing Chain Learned Value Procedure Addition

No: TSB-10-00-008
Date: July, 2010
MODEL: See Below

SUBJECT
TIMING CHAIN LEARNED VALUE PROCEDURE
ADDED - SERVICE MANUAL REVISION

PURPOSE

The Timing Chain Learned Value Reset procedure was not included in the service manuals. This TSB provides the missing procedure.

AFFECTED VEHICLES

2010 Lancer
2010 Lancer Sportback
2010 Outlander

AFFECTED SERVICE MANUALS

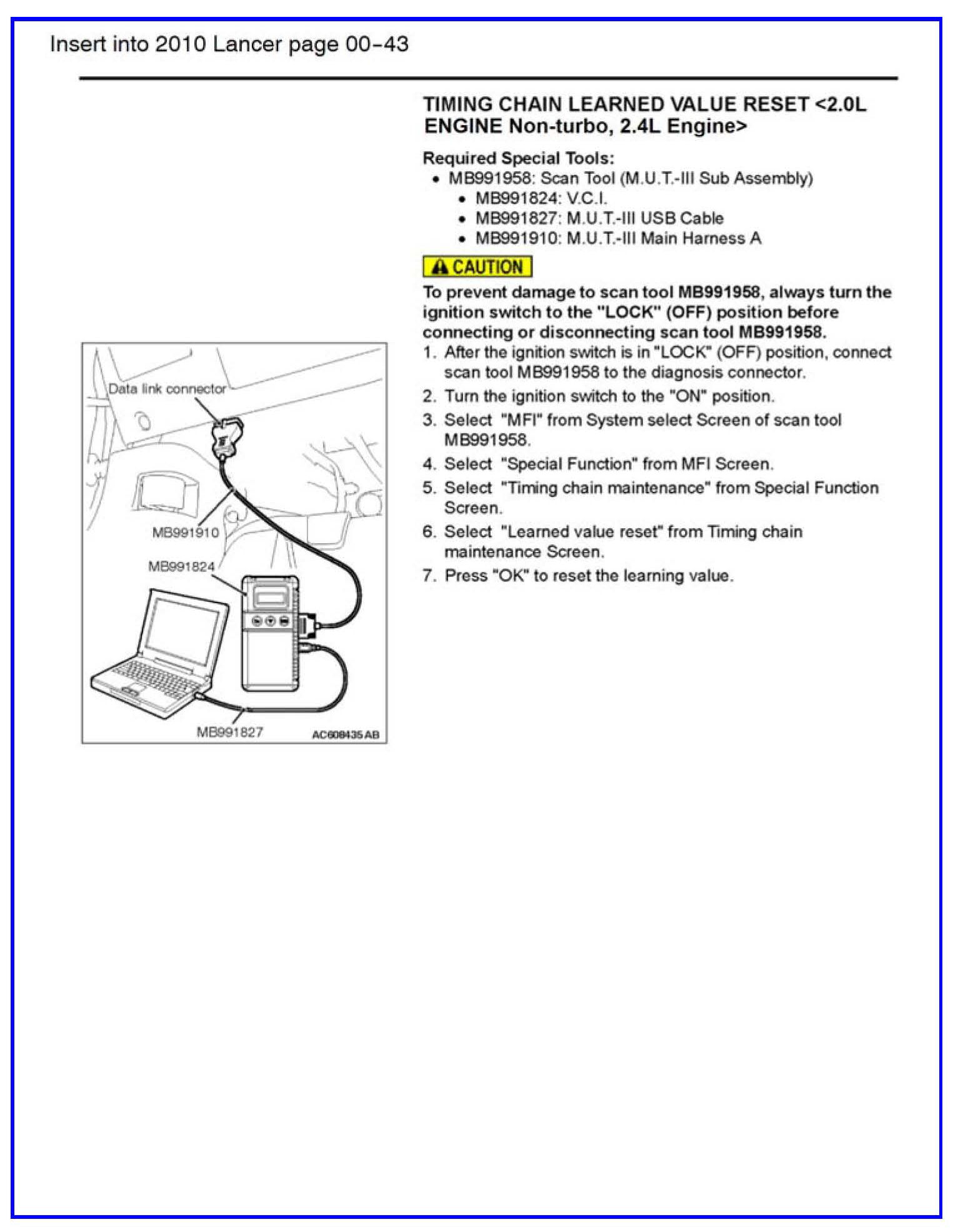

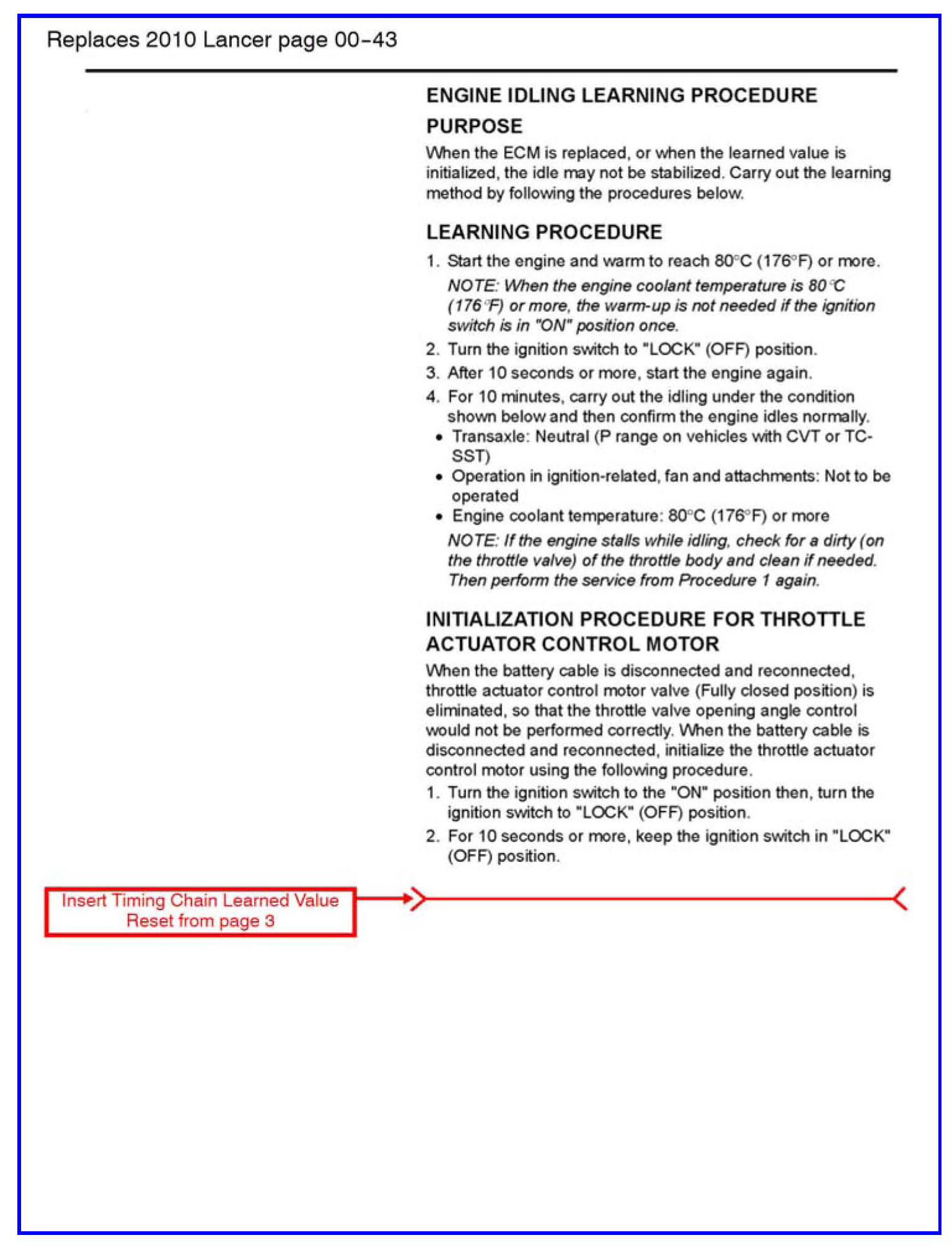

2010 Lancer page 00-43








2010 Lancer Sportback page 00-38

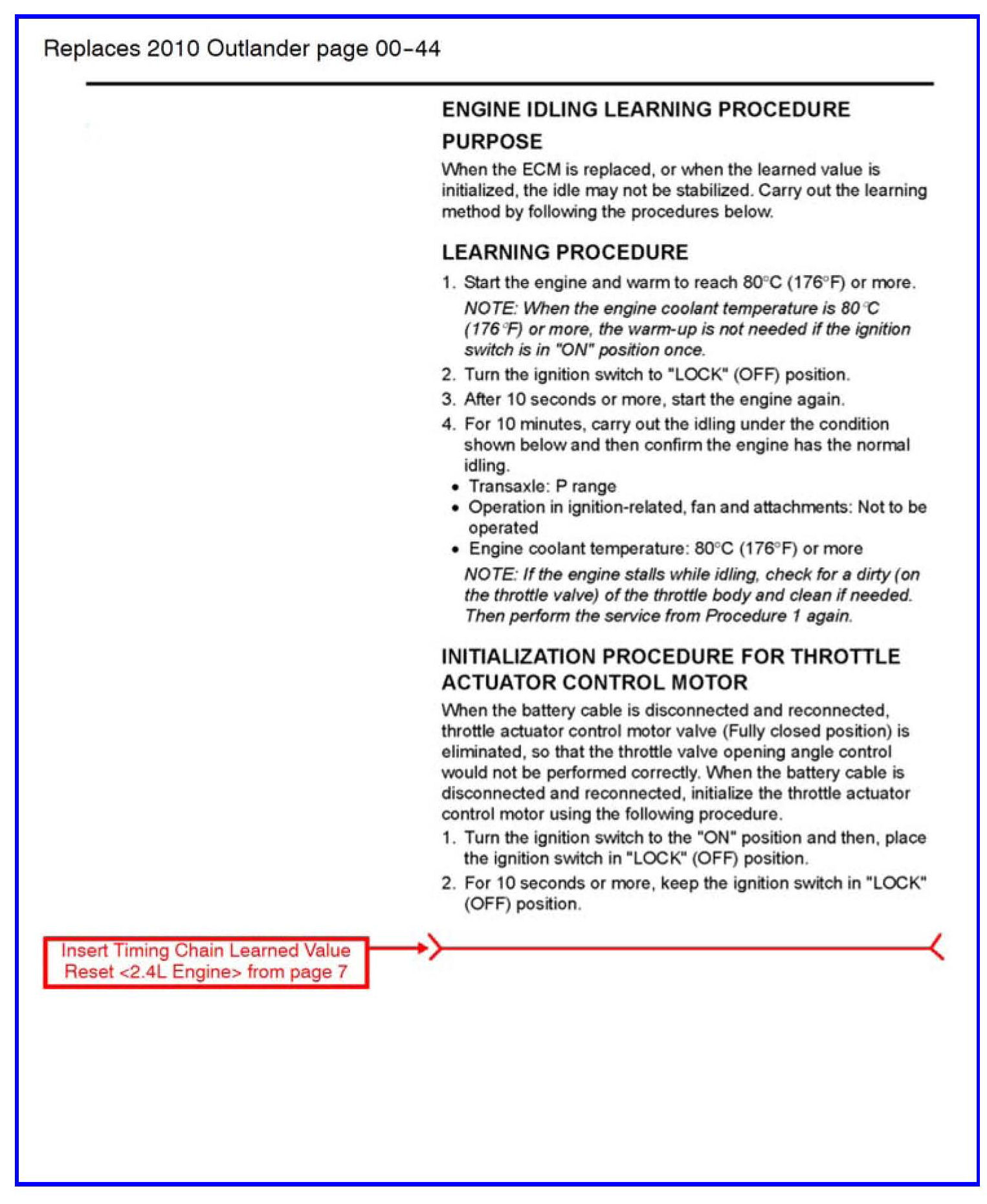

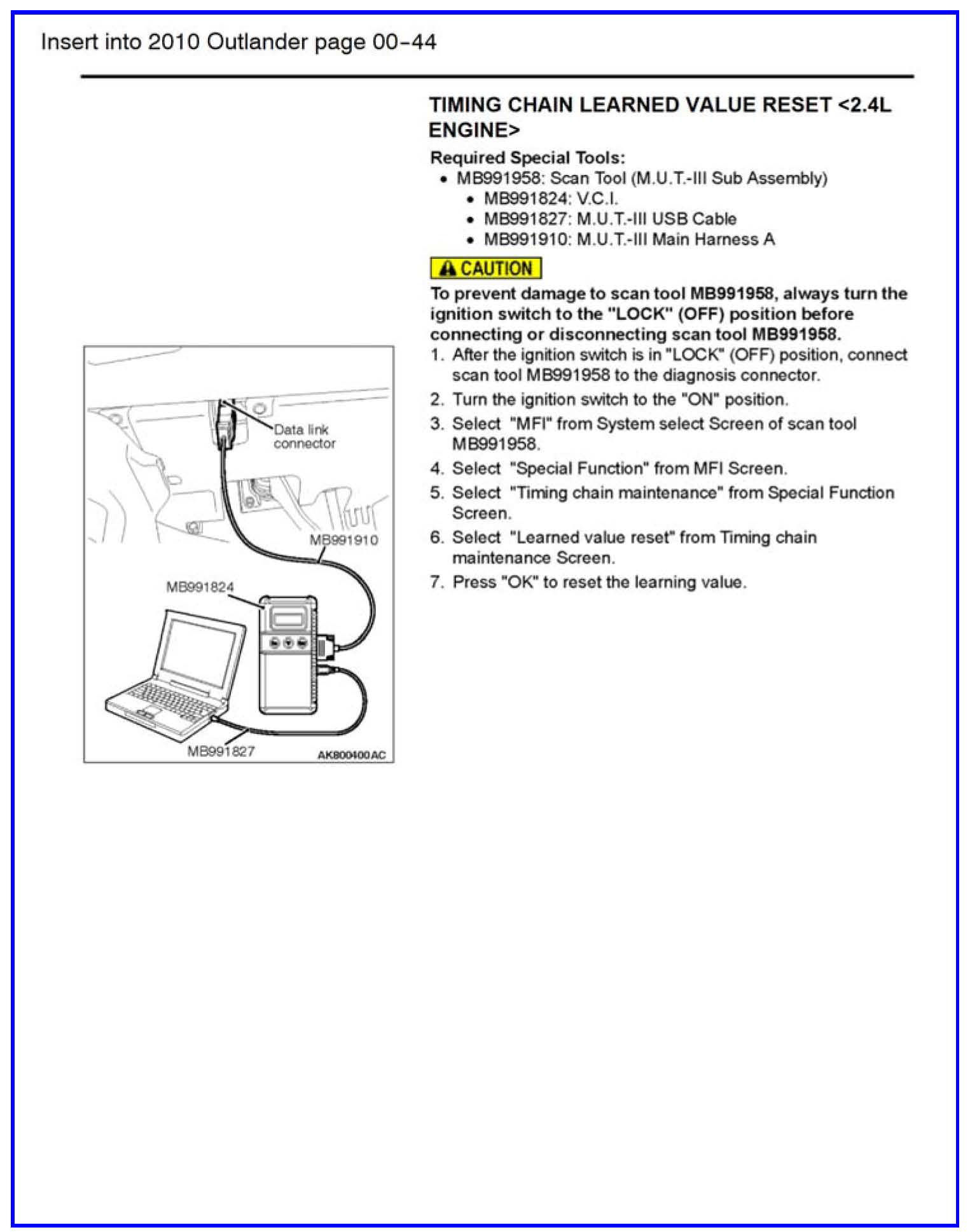

2010 Outlander 2.4L page 00-44
