Home >> Mitsubishi >> 2010 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

ENGINE DIAGNOSIS

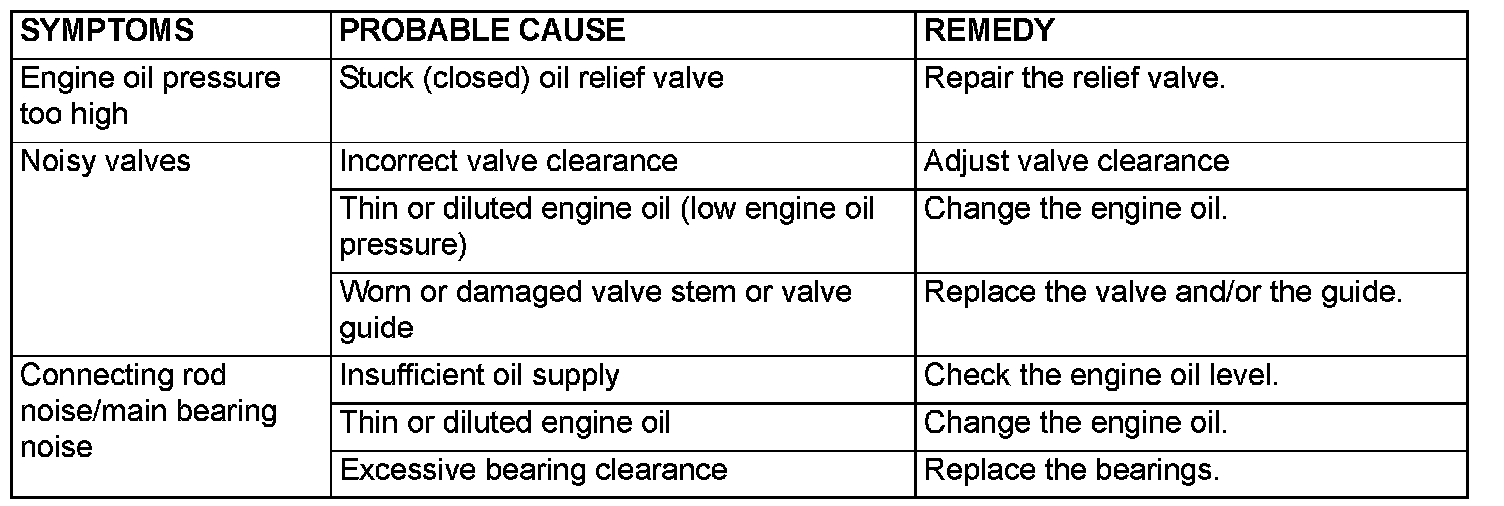

Symptom Charts (Part 1):

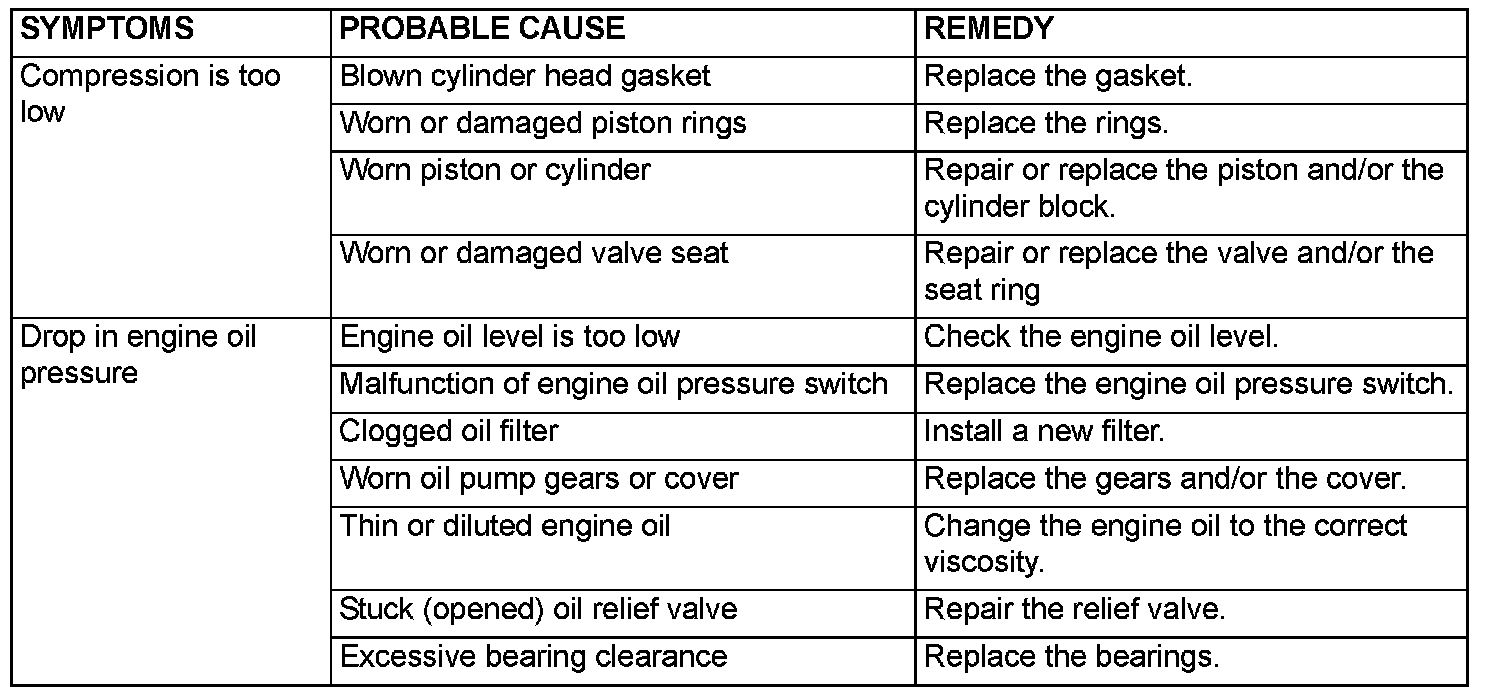

Symptom Charts (Part 2):
