Engine Mount: Service and Repair

ENGINE MOUNTING

REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

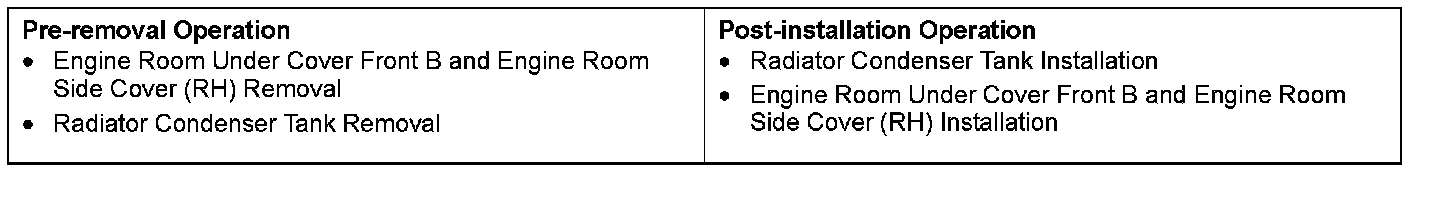

Pre-removal & Post-installation Operation:

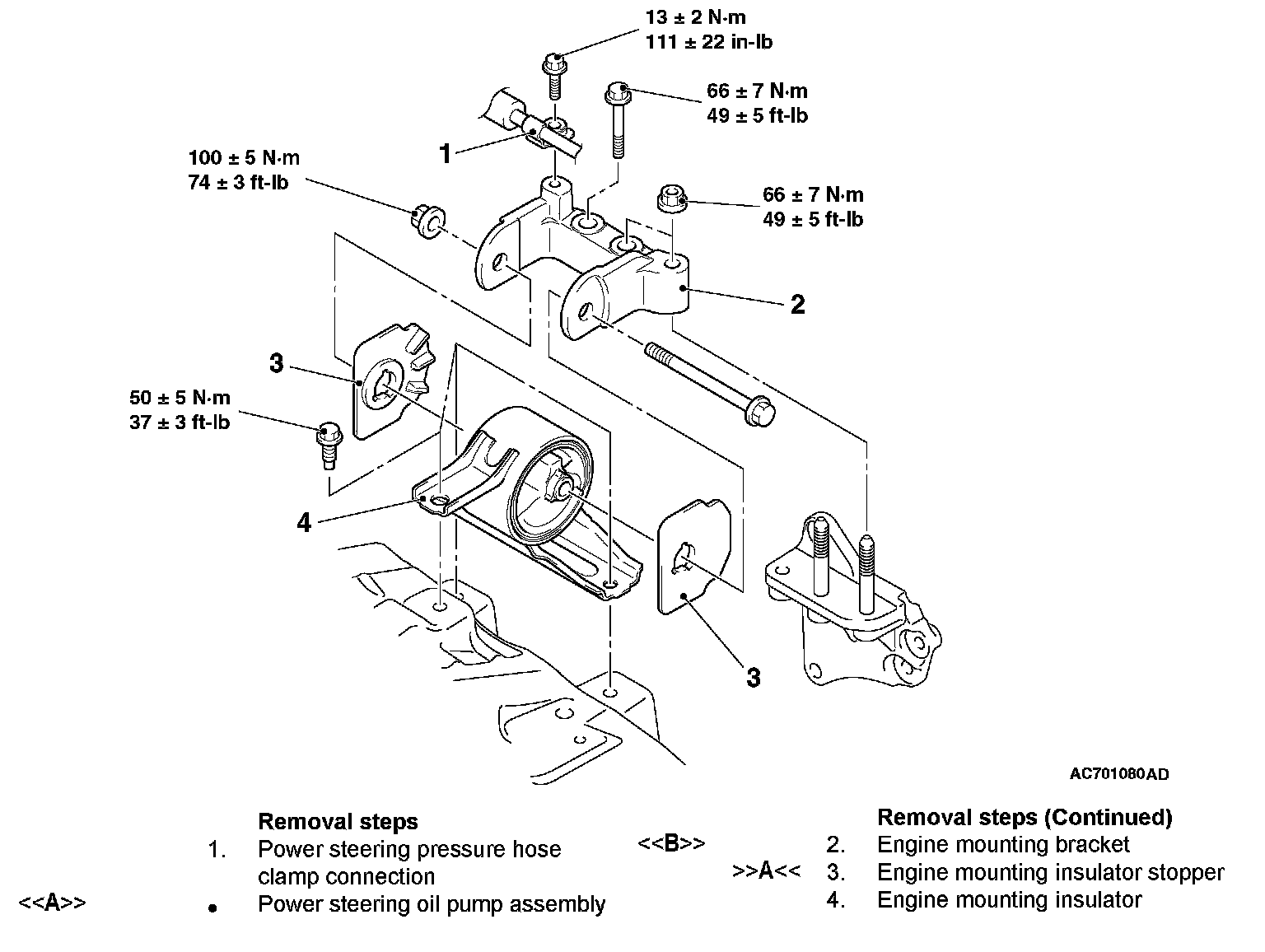

Removal Steps 1-4:

REMOVAL SERVICE POINTS

[A] POWER STEERING OIL PUMP ASSEMBLY REMOVAL
Remove the power steering oil pump assembly together with the hose from the bracket.

[B] ENGINE MOUNTING BRACKET REMOVAL

CAUTION:
When supporting the engine and transaxle assembly with a garage jack, be careful not to deform the engine oil pan.

1. Place a garage jack against the engine oil pan with a piece of wood in between to support the engine and transaxle assembly.
2. Operate a garage jack so that the engine weight is not applied to the engine mounting insulator, and remove the engine mounting insulator.

INSTALLATION SERVICE POINT

[A] ENGINE MOUNTING INSULATOR STOPPER INSTALLATION

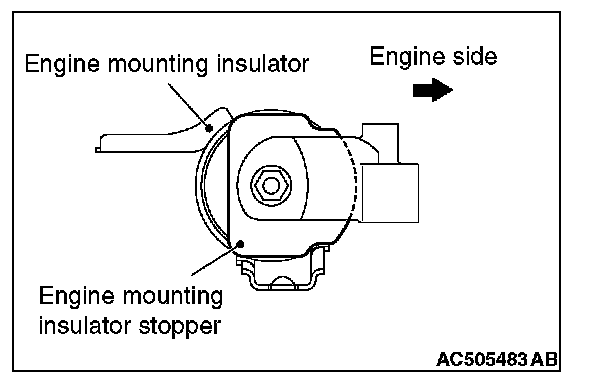

Install the engine mounting insulator stopper as shown in the figure.
