Scan Tool Testing and Procedures

DATA LIST REFERENCE TABLE

CAUTION:
- Driving tests always need two people: one driver and one observer.
- When shifting the selector lever to "D" range apply the brakes should be applied so that the vehicle does not move forward.

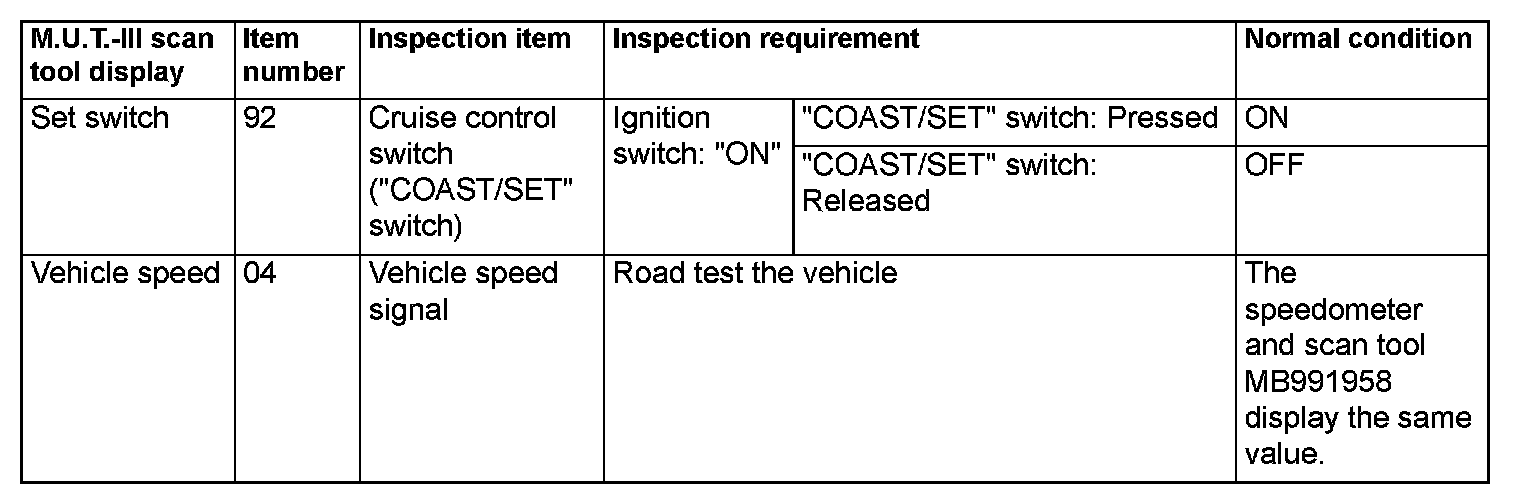

Data List Reference Table (Part 1):

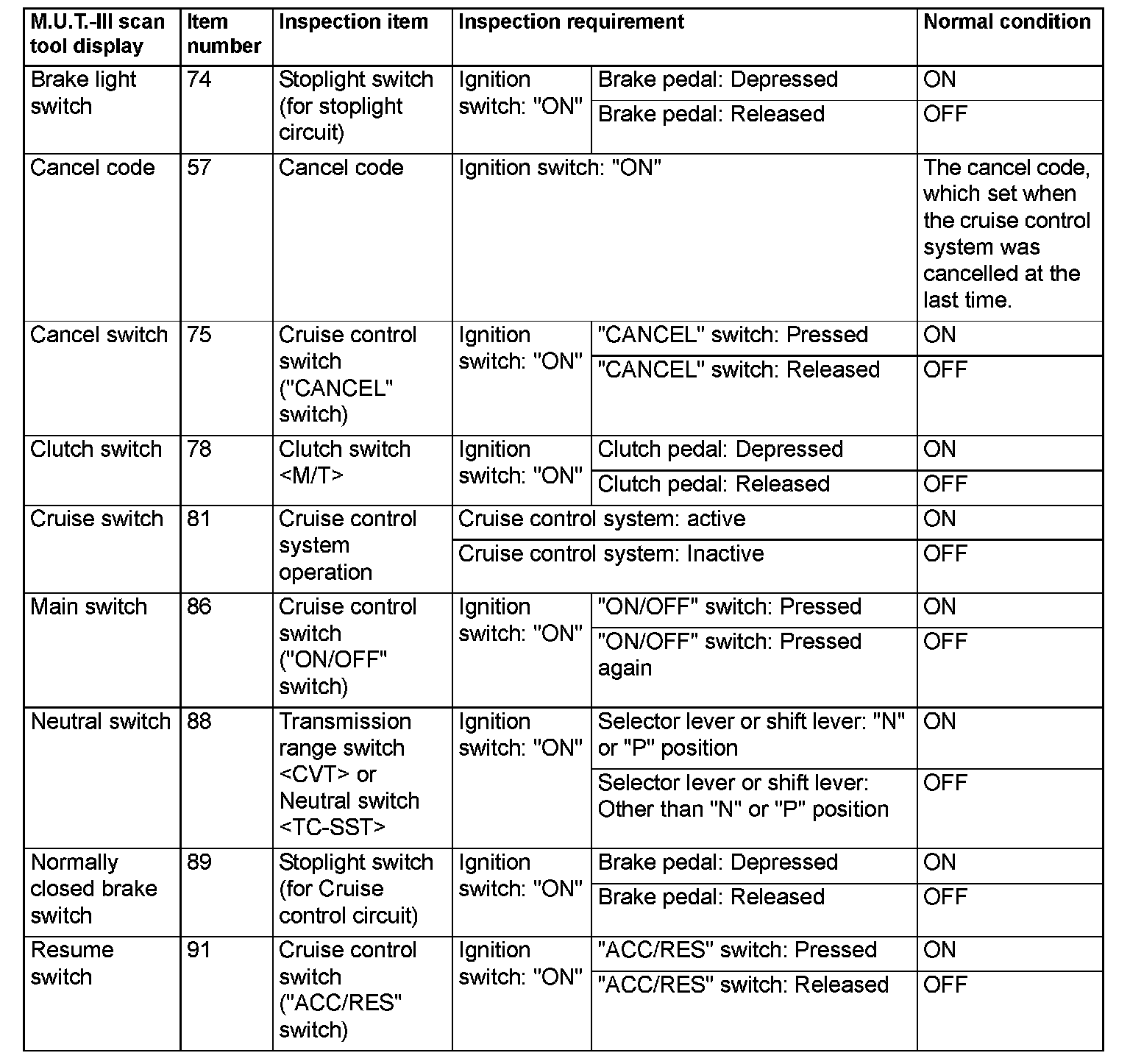

Data List Reference Table (Part 2):
