Component Tests and General Diagnostics

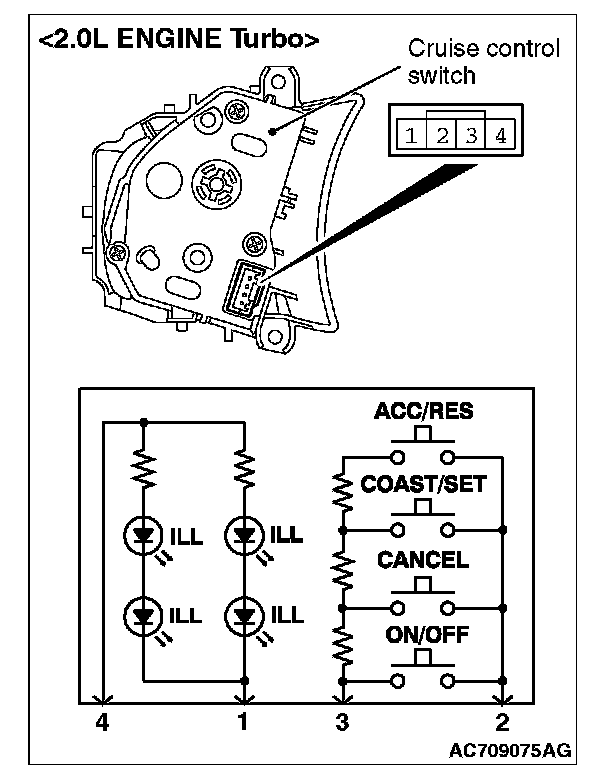

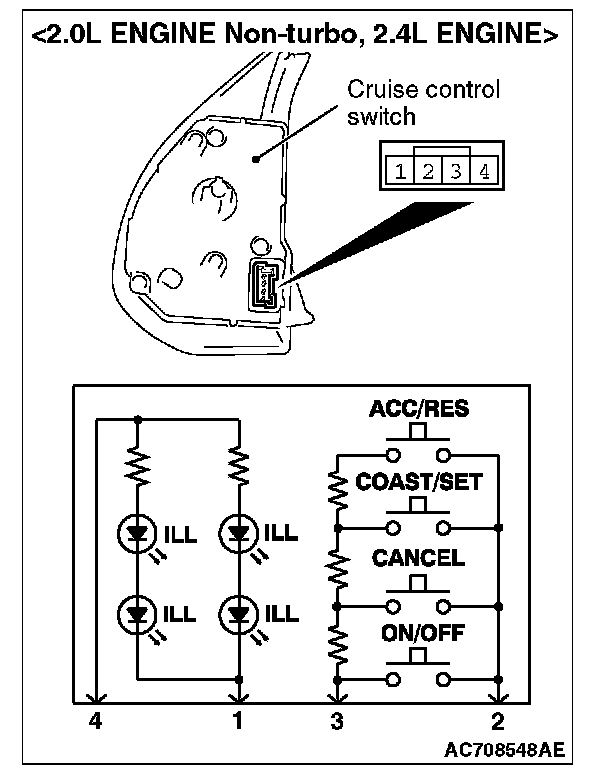

CRUISE CONTROL SYSTEM COMPONENT CHECKCRUISE CONTROL SWITCH CHECK
1. Remove the cruise control switch.

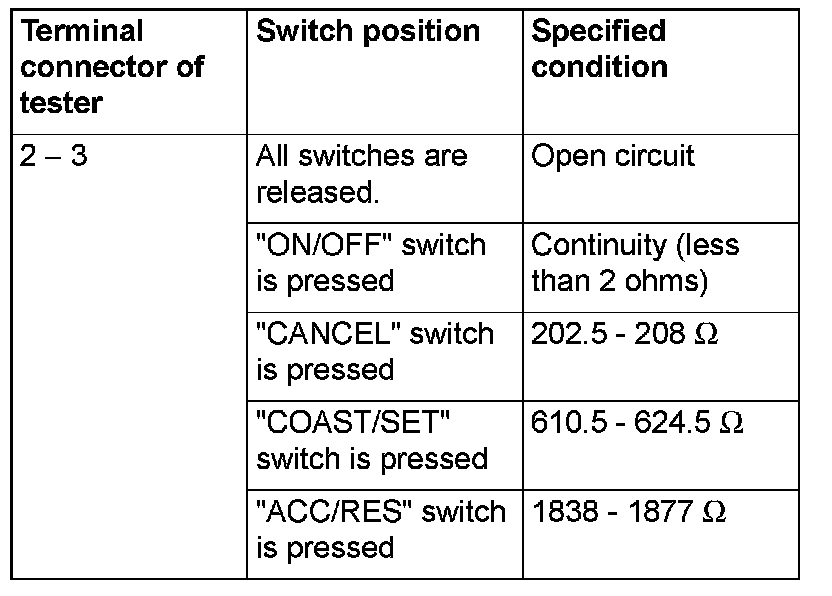

2. Measure the resistance between terminal number 2 and terminal number 3 when each of the "ON/OFF", "CANCEL", "COAST/SET" and "ACC/RES" switches is pressed. If the values measured at the time each switch is pressed correspond to those in the table below, the resistance values are correct.
3. Check that the cruise control switch illuminates when a positive battery terminal is connected to the connector terminal number 4, and terminal number 1 is grounded.
STOPLIGHT SWITCH CHECK
Refer to Brake Pedal, Inspection - Stoplight Switch Check. Testing and Inspection
CLUTCH SWITCH CHECK [M/T]
Refer to On-vehicle Service - Clutch Switch Check. Testing and Inspection
TRANSMISSION RANGE SWITCH ("N" POSITION) [CVT]
Refer to On-vehicle Service, Essential Service - Transmission Range Switch Continuity Check. [1][2]Testing and Inspection
THROTTLE ACTUATOR CONTROL MOTOR
Refer to On-vehicle Service - Throttle Actuator Control Motor Check [2.0L ENGINE Non-turbo.] Throttle Actuator Control Motor Check
Refer to On-vehicle Service - Throttle Actuator Control Motor Check [2.0L ENGINE Turbo.] Throttle Actuator Control Motor Check
Refer to On-vehicle Service - Throttle Actuator Control Motor Check [2.4L ENGINE.] Throttle Actuator Control Motor Check
