Removal and Installation

PARKING BRAKE LINING AND DRUM

REMOVAL AND INSTALLATION [EXCEPT RALLIART]

Post-installation Operation:

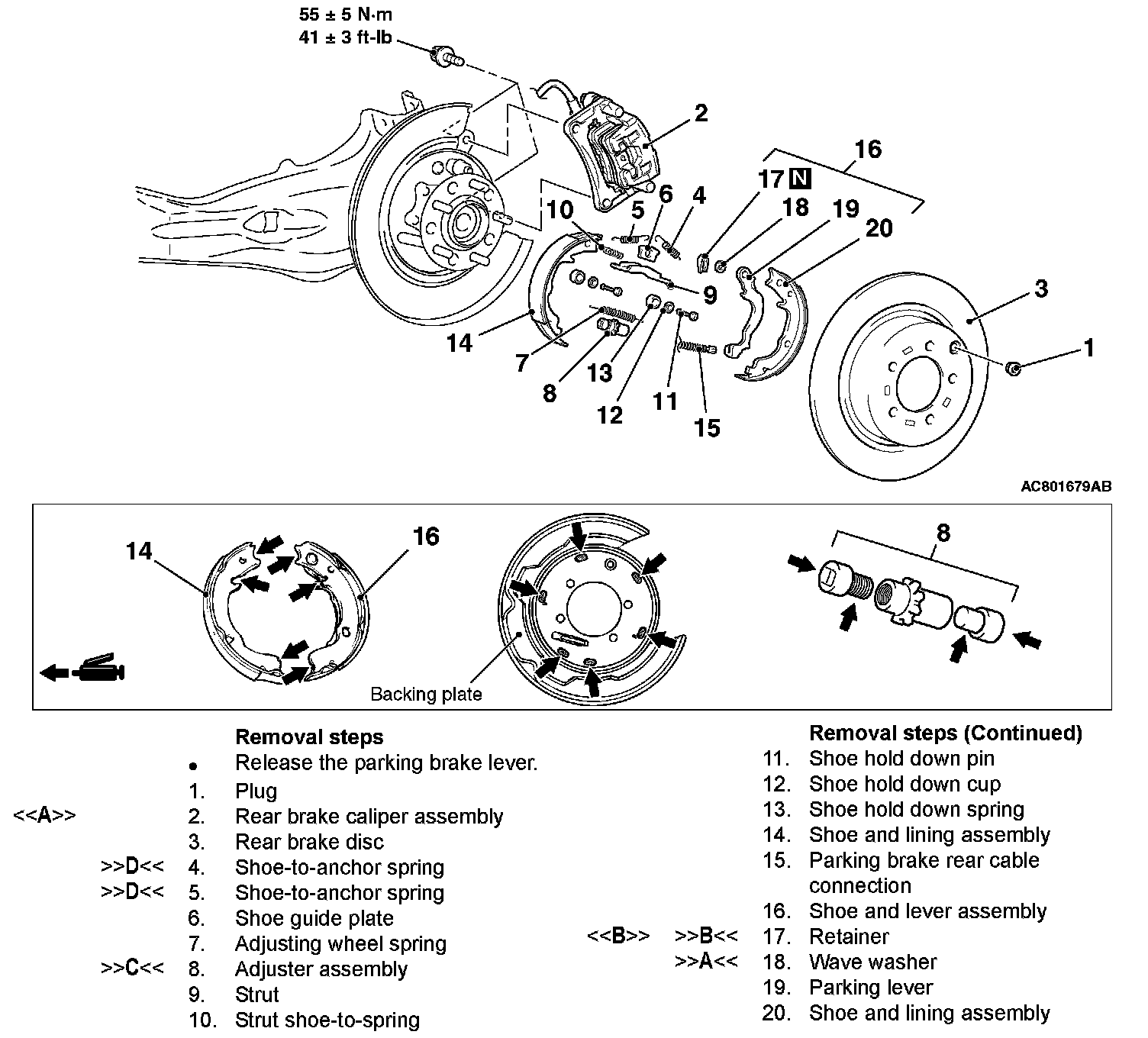

Removal Steps 1-20:

REMOVAL SERVICE POINTS

[A] REAR BRAKE CALLIPER ASSEMBLY REMOVAL
1. Remove the rear brake caliper assembly with the brake hose.
2. Secure the removed rear brake caliper assembly with a wire or other similar material at a position where it will not interfere with the removal and installation operations.

[B] RETAINER REMOVAL

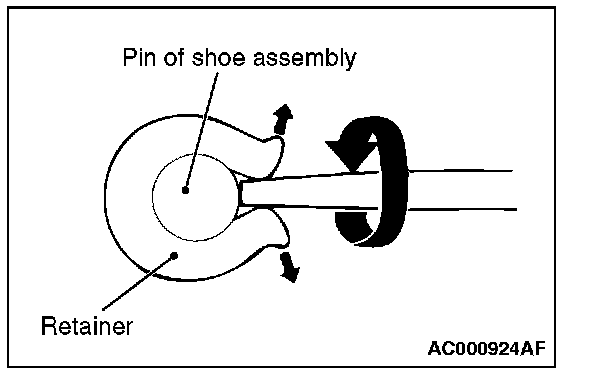

Use a flat-tipped screwdriver or a similar tool to open up the retainer joint. Then remove the retainer.
