Installation Service Points

INSTALLATION SERVICE POINTS

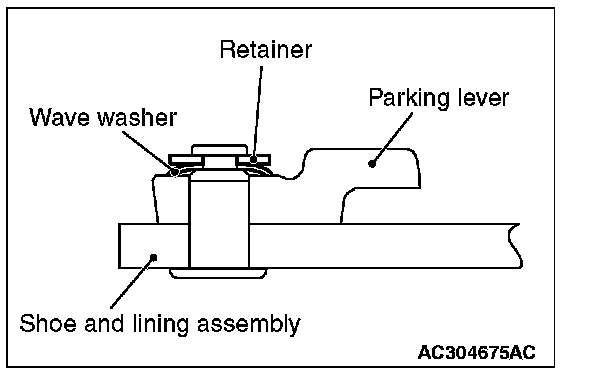

[A] WAVE WASHER INSTALLATION





Install the wave washer in the direction shown in the illustration.

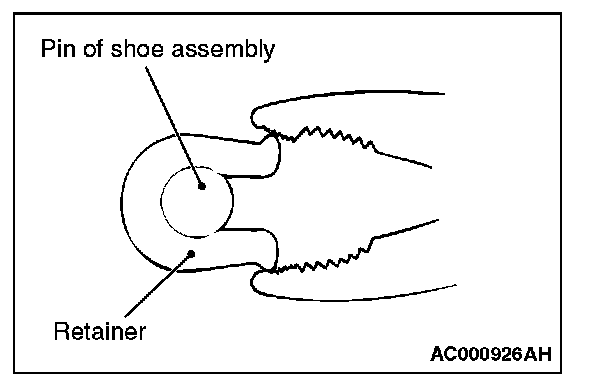

[B] RETAINER INSTALLATION





Use pliers or a similar tool to close the retainer end onto the pin.

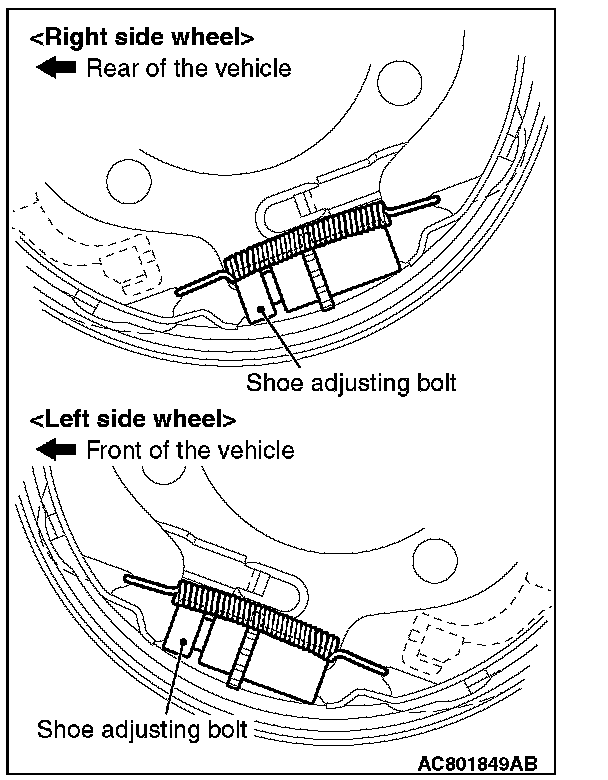

[C] ADJUSTER ASSEMBLY INSTALLATION





Install the adjuster assemblies. The shoe adjusting bolt should be mounted to the rear of the vehicle for the right wheel, and to the front of the vehicle for the left wheel.

[D] SHOE-TO-ANCHOR SPRING INSTALLATION





The shoe-to-anchor springs are not interchangeable because their spring loads are different. The one with blue paint mark should be installed to the front of the vehicle, and the other with yellow paint to the rear of the vehicle, respectively.
