Brake Lining Thickness Check

BRAKE LINING THICKNESS CHECK

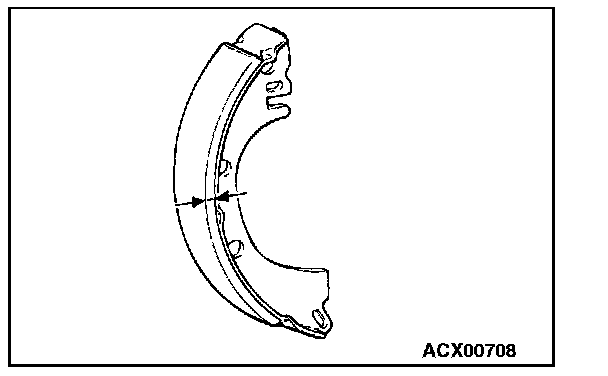

1. Measure the lining thickness at the most worn area.
Standard value: 2.8 mm (0.11 inch)
Limit: 1.0 mm (0.04 inch)
2. If the thickness is less than the limit value, replace the right and left shoe and lining assemblies as a set.
