REAR DISC BRAKE ASSEMBLY
REMOVAL AND INSTALLATION [EXCEPT RALLIART]

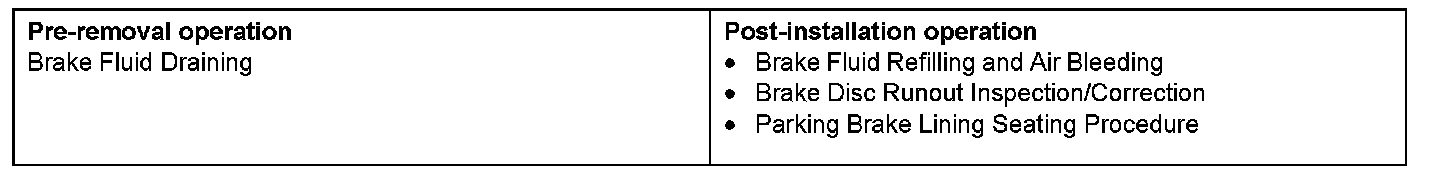

Pre-removal & Post-installation Operation:

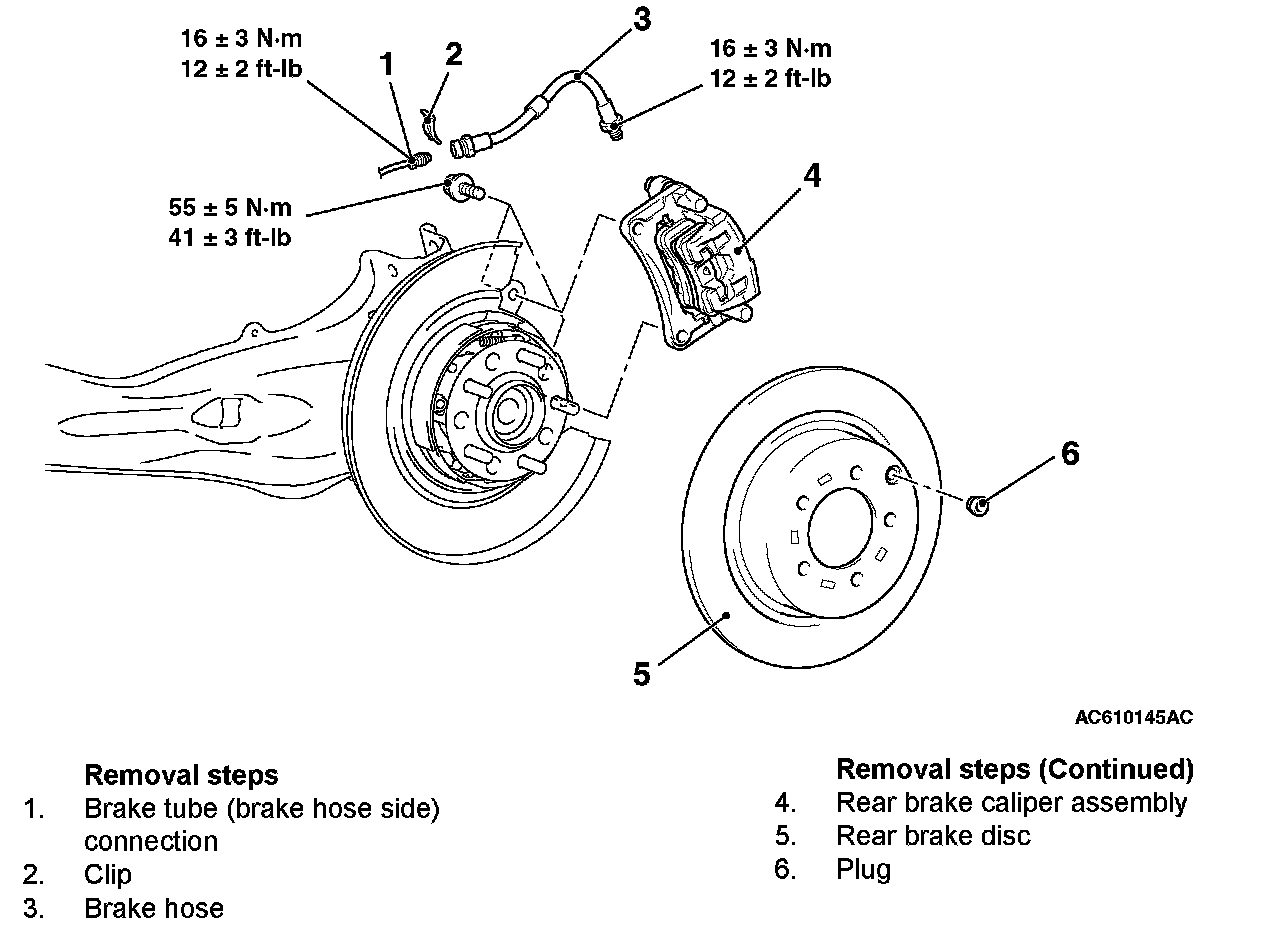

Removal Steps 1-6:
