16-Inch Rear Disc Brake

DISASSEMBLY SERVICE POINTS

[B] PISTON SEAL REMOVAL

CAUTION:
Do not use a flat-tipped screwdriver or similar tool to remove the piston seal. These may damage the inner side of the cylinder.

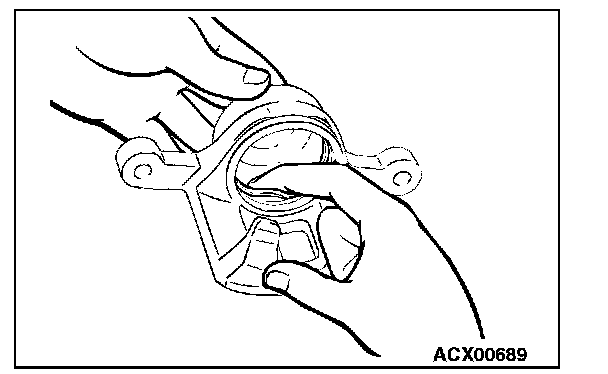

1. Remove the piston seal with your finger tip.
2. Clean the piston surface and cylinder inner face with alcohol or specified brake fluid.
Brake fluid: DOT3 or DOT4
