16-Inch Front Disc Brake
16-Inch Front Disc Brake

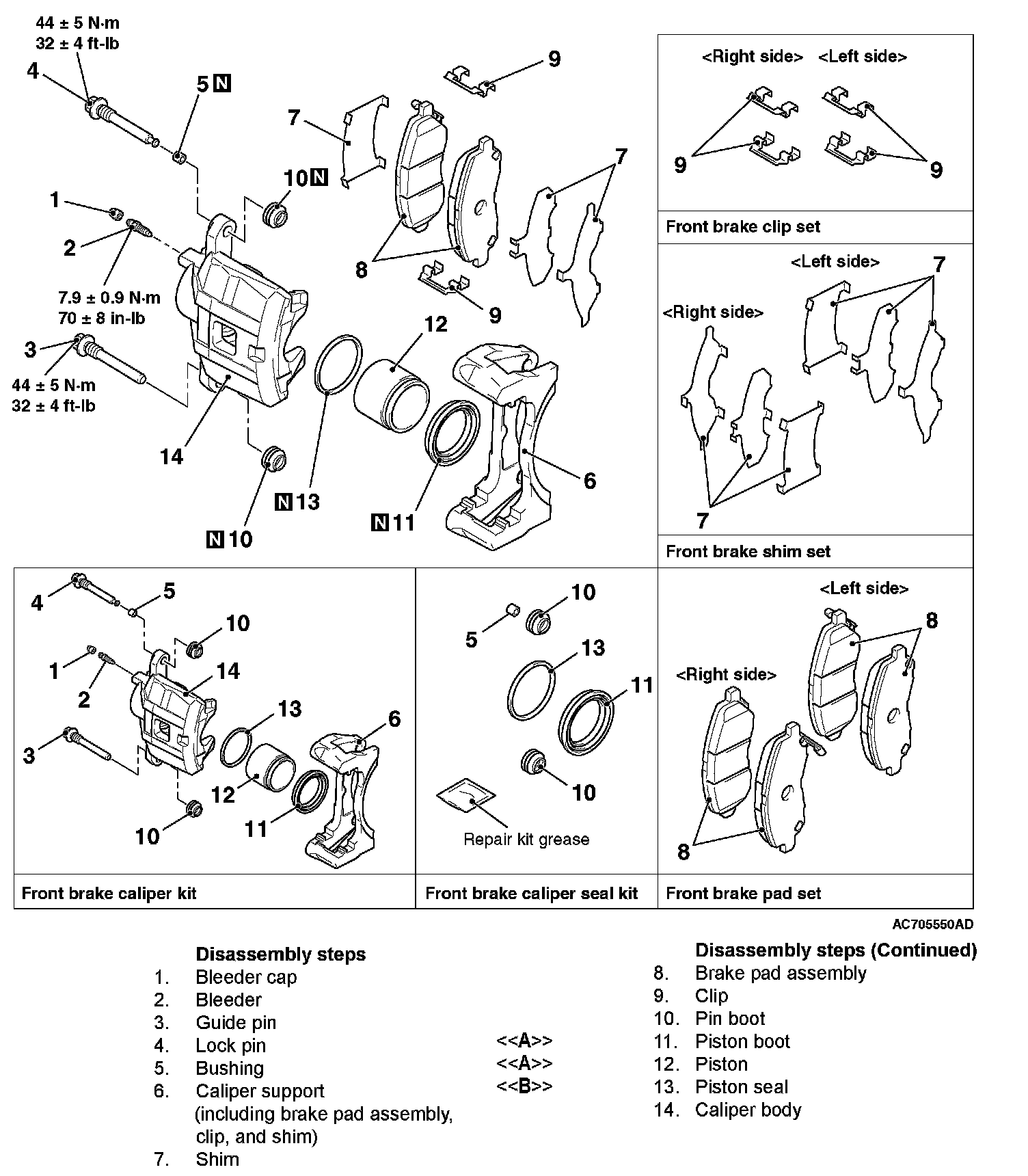

DISASSEMBLY AND ASSEMBLY [16-INCH FRONT DISC BRAKE (EXCEPT RALLIART)]
Disassembly Steps 1-14:
