16-Inch Front Disc Brake

[B] PISTON SEAL REMOVAL

CAUTION:
Do not use a flat-tipped screwdriver to remove the piston seal. This may damage the inner side of the cylinder.

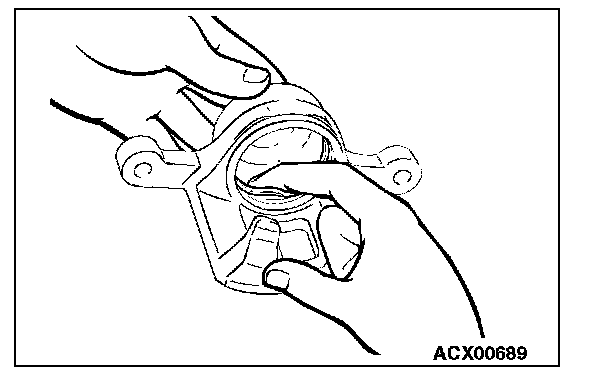

1. Remove the piston seal with your finger tip.
2. Clean the piston surface and cylinder inner face with alcohol or specified brake fluid.
Brake fluid: DOT3 or DOT4
