Brake Pad Replacement

BRAKE PAD REPLACEMENT [EXCEPT RALLIART]

[FRONT]

CAUTION:
When replacing, replace both brake pads (right and left) as a set.

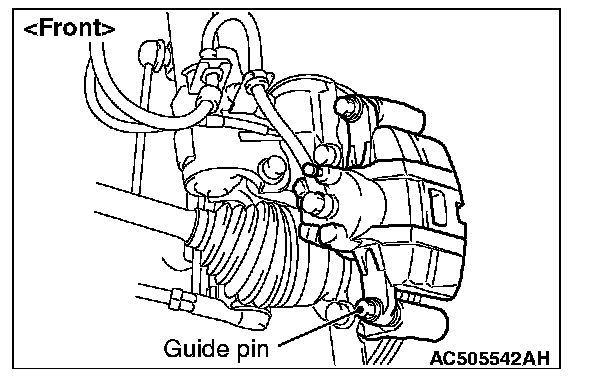

1. Remove the parts indicated in the figure, swivel the caliper body upward and retain it with a wire or similar tool.

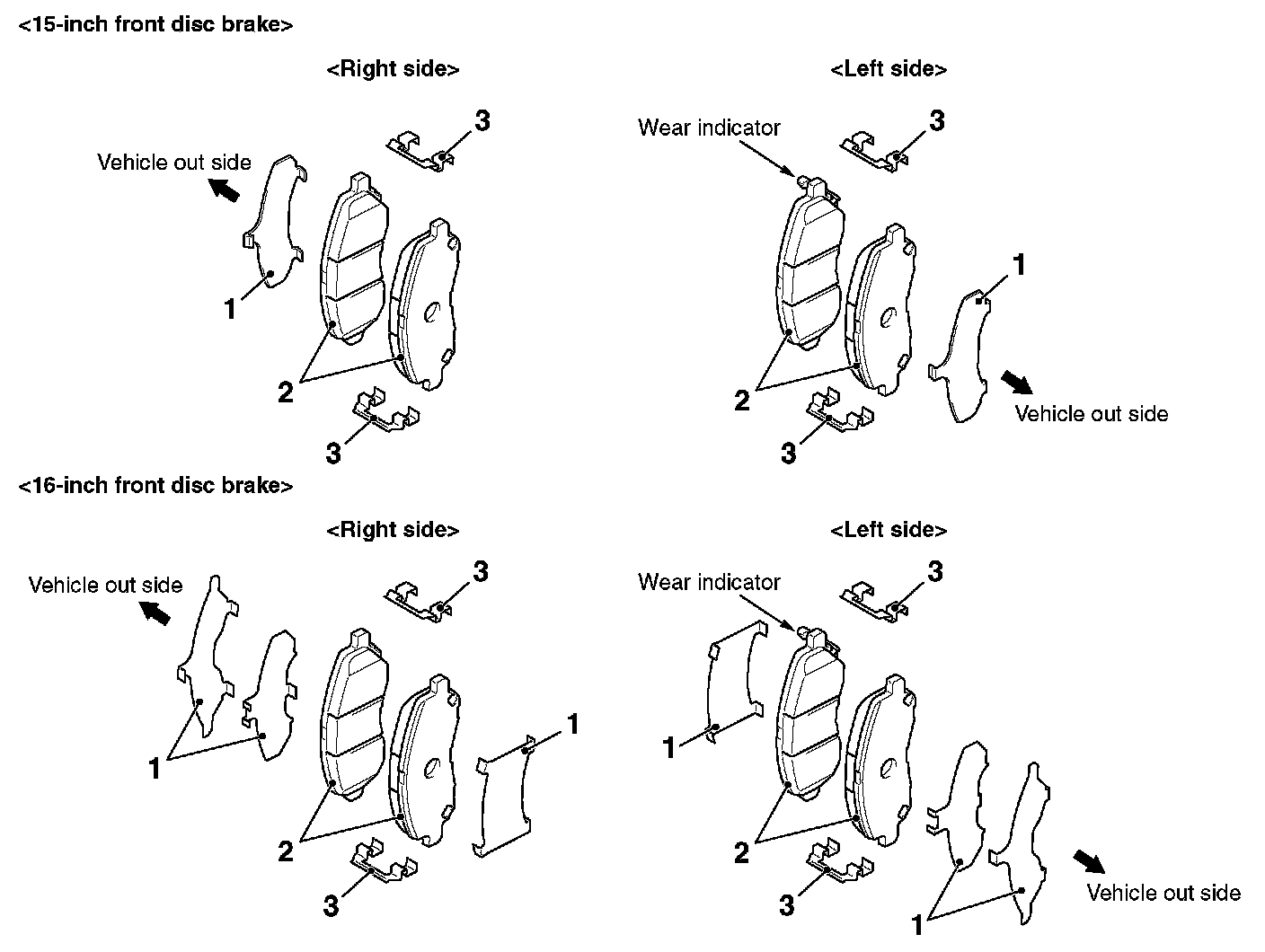

2. Remove the following parts from the caliper body.
1) Shim
2) Brake pad assembly
3) Clip

NOTE:
^ The brake pad assembly with wear indicator is installed only to the inner side of the brake disc of the left-side brake at factory.
^ As for the accessory pad set, the brake pad with wear indicator has been established to the inner side of the brake disc on both right side brake and left side brake.

CAUTION:
Keep grease or other soiling off the pad and brake disc friction surfaces.

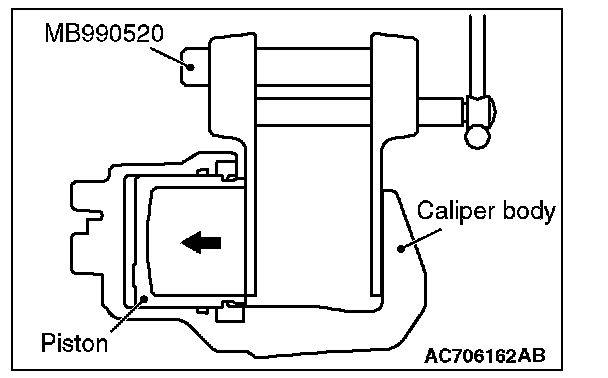

3. Clean the piston part, and press the piston into the cylinder using the special tool piston expander (MB990520).
4. Assemble the shim, brake pad assembly and clip to the caliper support, and tighten the guide pin to the specified torque.
Tightening torque: 44 ± 5 Nm (32 ± 4 ft-lb)

NOTE: Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.

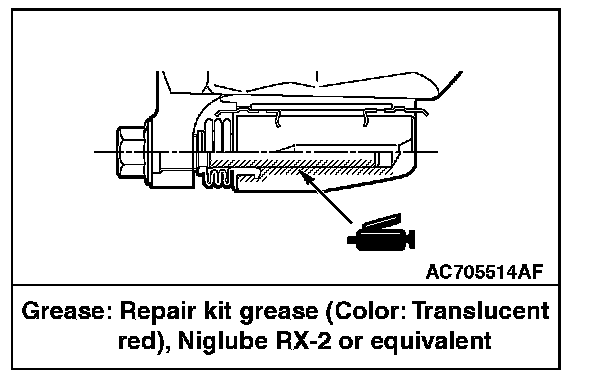

LUBRICATION POINT

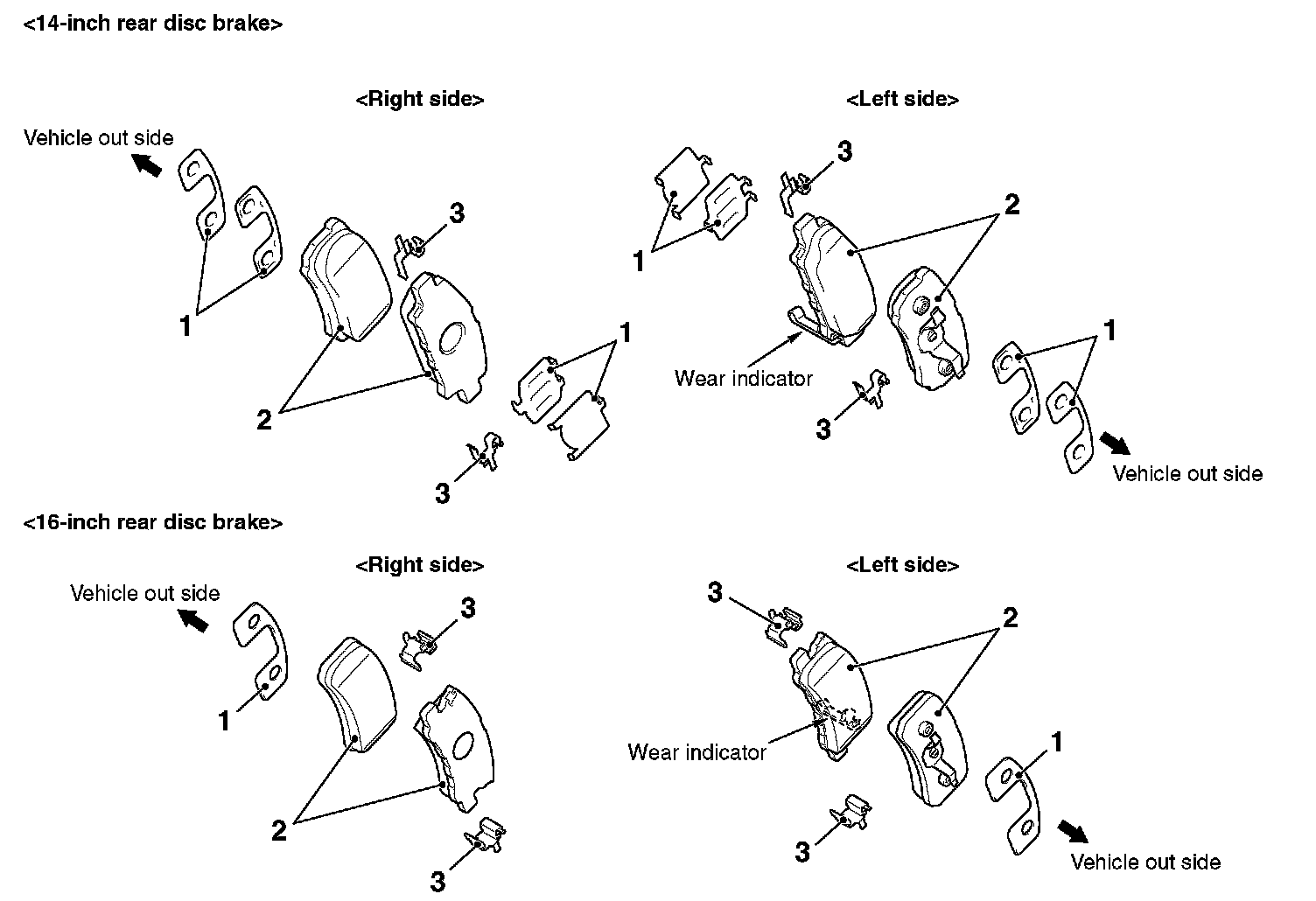

[REAR]

CAUTION:
When replacing, replace both brake pads (right and left) as a set.

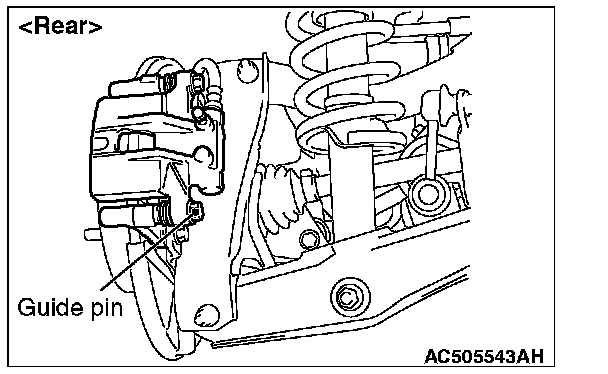

1. Remove the parts indicated in the figure, swivel the caliper body upward and retain it with a wire or similar tool.
