Spoiler: Service and Repair

REAR SPOILER

REMOVAL AND INSTALLATION

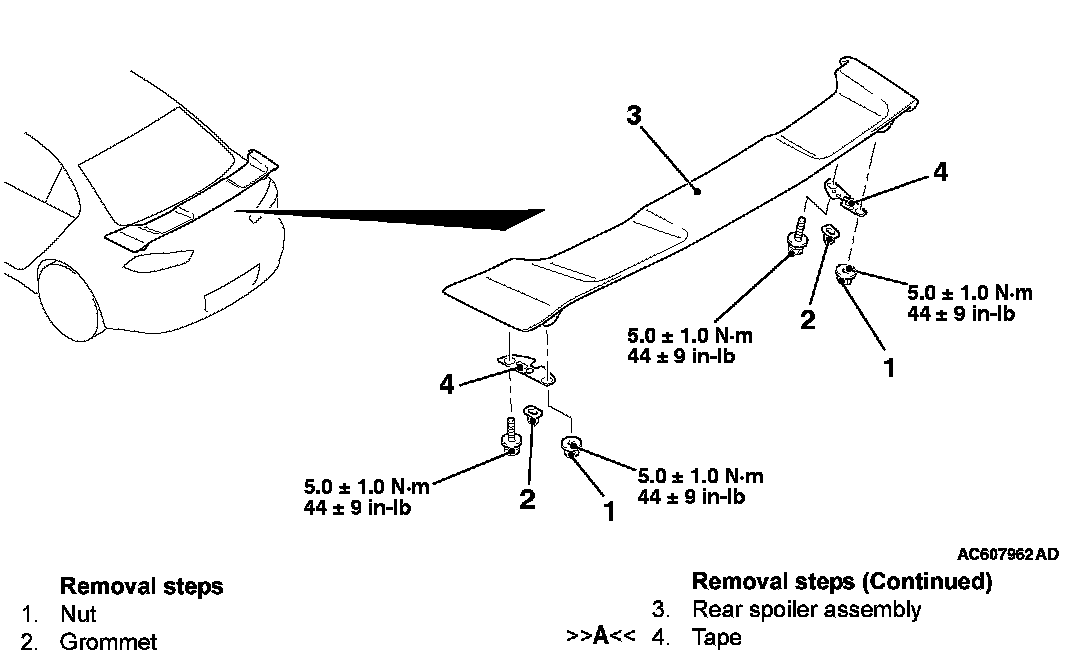

Removal Steps 1-4:

INSTALLATION SERVICE POINT

]]A[[ TAPE INSTALLATION







1. Installation position

CAUTION:
- The ambient temperature should be 15° C (59° F) to 40° C(104° F). Ensure that the working area is clean.
- If ambient temperature is less than 15° C (59° F), heat the tape and application surface to a temperature of 15° C (59° F) to 40° C (104° F).
- Be careful that air bubbles are not formed under the tape.

2. Installation procedure
1. Wipe the tape application surface and clean it with a rag moistened with isopropyl alcohol.
2. Remove backing paper from the tape, and apply it to the rear spoiler assembly.
