Seats: Testing and Inspection

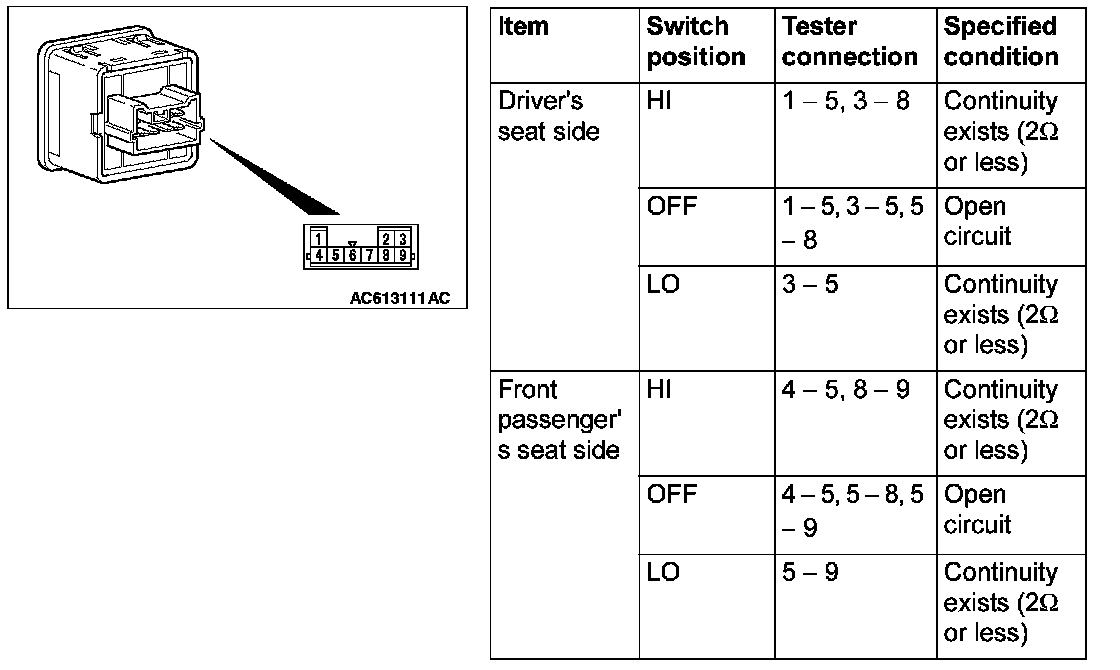

INSPECTIONCONTINUITY TEST OF HEATED SEAT SWITCH
1. Check for continuity between terminals.
Continuity Test Of Heated Seat Switch:
2. Check that the indicator is lighted at HI or LO when battery voltage is supplied to terminal 5 and terminal 8 is grounded.
3. Check that indicator is lighted when battery voltage is supplied to terminals 2 and terminal 6.

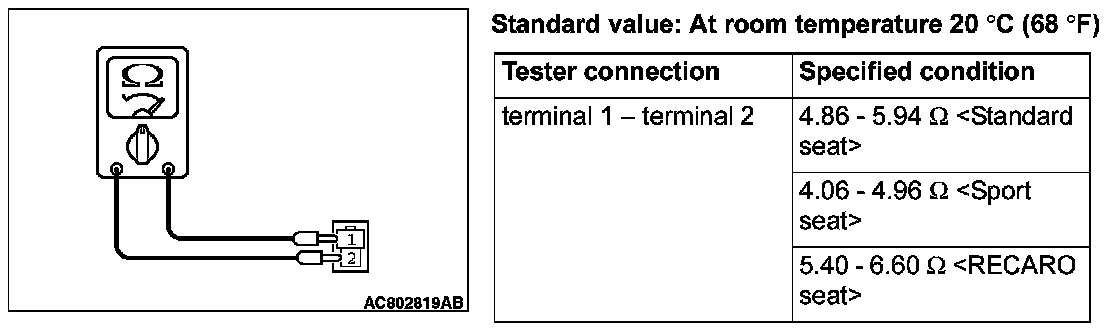

SEAT CUSHION HEATER CHECK
Measure the resistance between terminals.
Standard value: At room temperature 20° C (68° F)
Seat Cushion Heater Check:

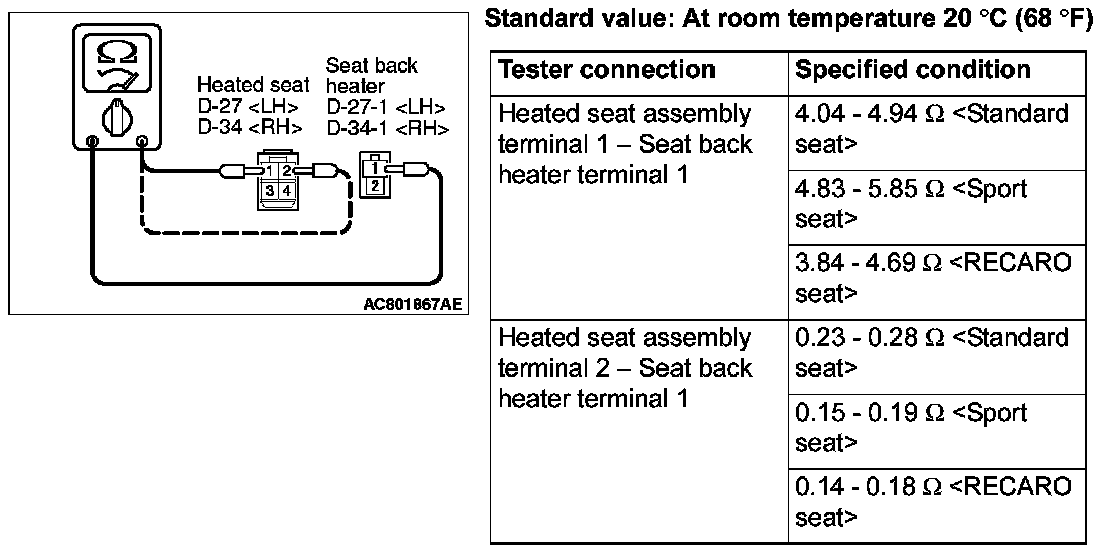

SEATBACK HEATER CHECK
Measure the resistance between terminals.
Standard value: At room temperature 20° C (68° F)
Seatback Heater Check:
HEATED SEAT RELAY CONTINUITY CHECK

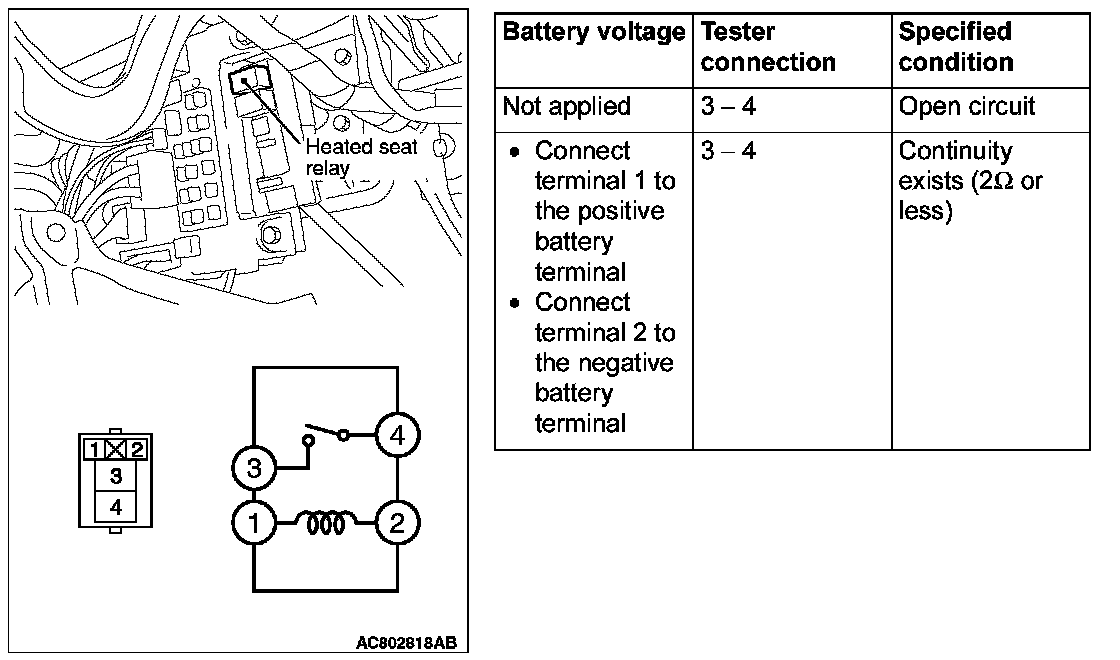

Heated Seat Relay Continuity Check:
