Rear Seat

REAR SEAT ASSEMBLY

REMOVAL AND INSTALLATION

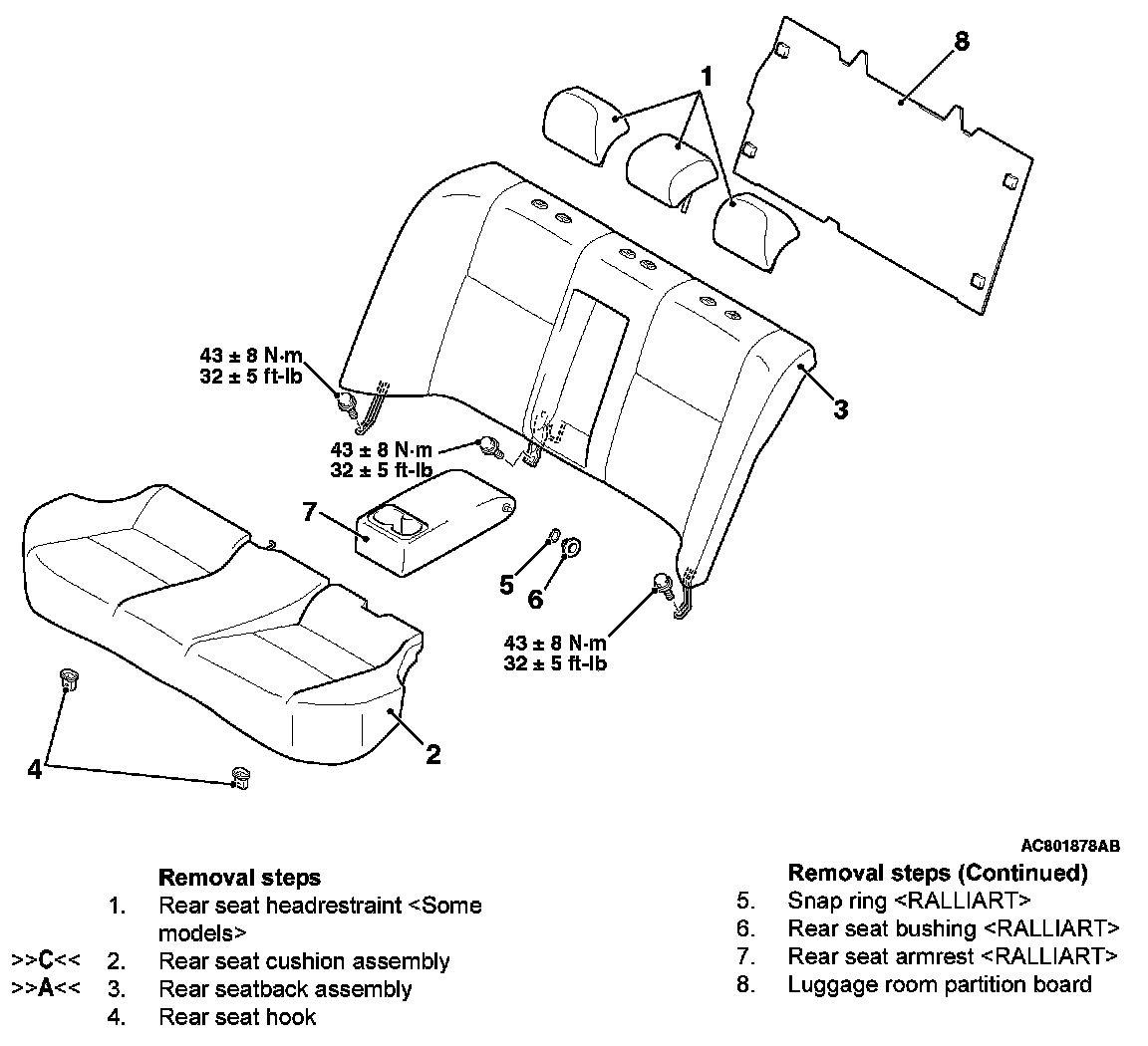

[BENCH SEAT]

Removal Steps 1-8:

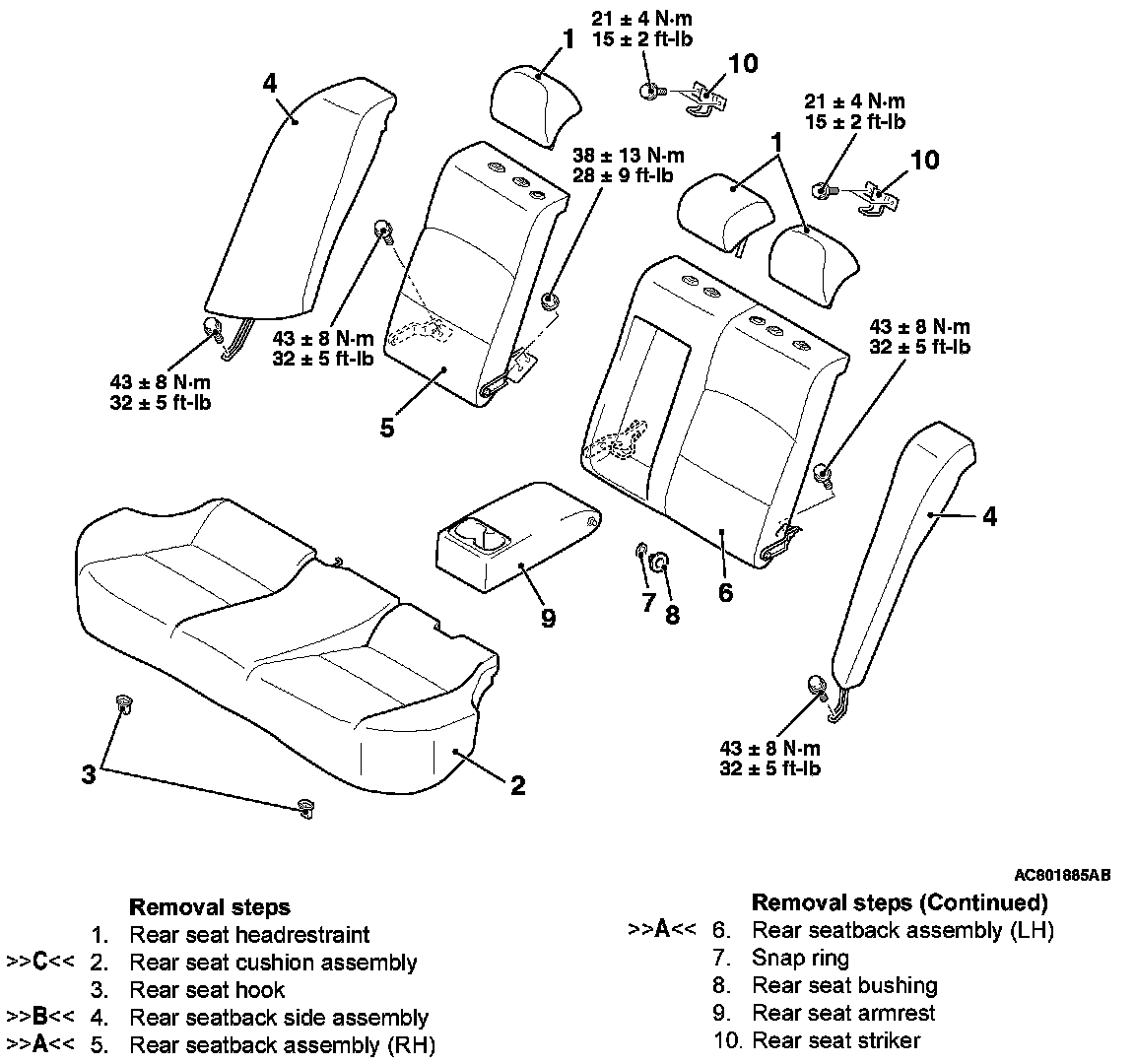

[SPLIT SEAT]

Removal Steps 1-10:

INSTALLATION SERVICE POINTS

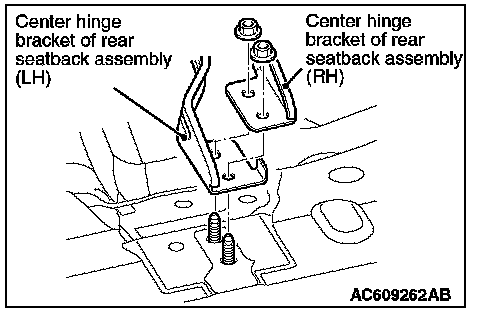

]]A[[ REAR SEATBACK ASSEMBLY (LH/RH) INSTALLATION







Place the center hinge bracket of the rear seatback assembly (LH) on top of the center hinge bracket of the rear seatback assembly (RH) for installation.

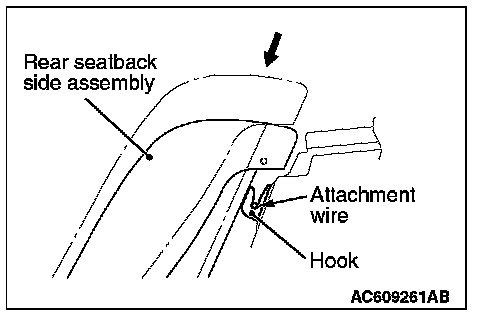

]]B[[ REAR SEATBACK SIDE ASSEMBLY (LH/RH) [SPLIT SEAT] / REAR SEATBACK ASSEMBLY[BENCH SEAT] INSTALLATION







Press the rear seatback side assembly in the direction shown in the illustration and fit the attachment wire into the hook securely to install the rear seatback side assembly.

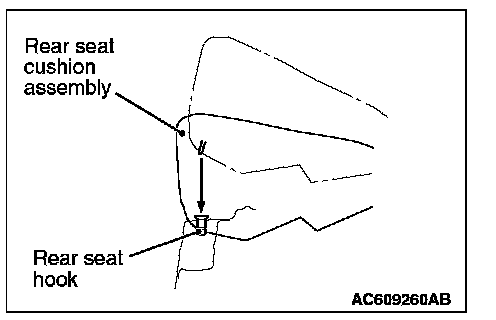

]]C[[ REAR SEAT CUSHION ASSEMBLY INSTALLATION







Fit the rear seat cushion into the rear seat hook securely.
