Rear Seat

DISASSEMBLY AND ASSEMBLY

[BENCH SEAT]

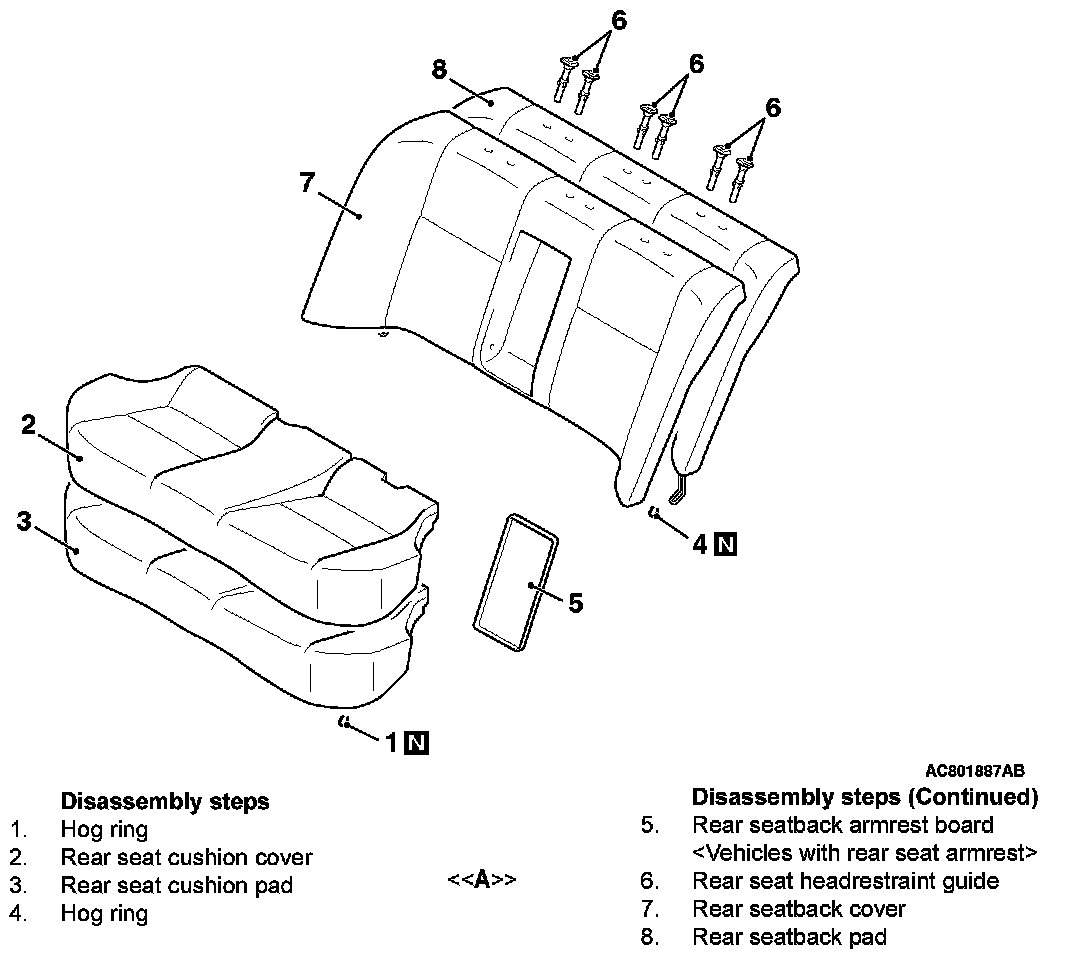

Disassembly Steps 1-8:






[SPLIT SEAT]

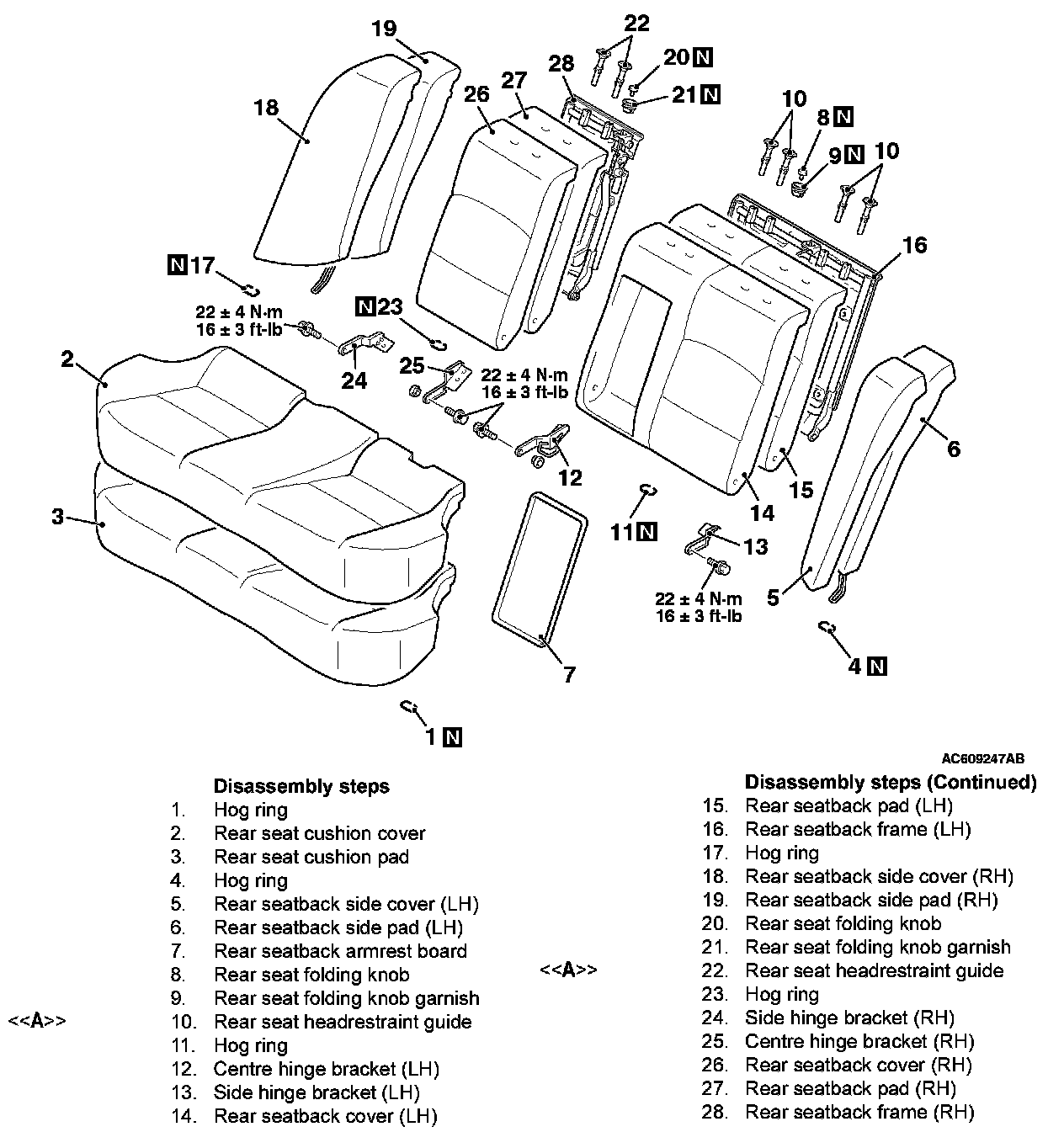

Disassembly Steps 1-28:






DISASSEMBLY SERVICE POINT

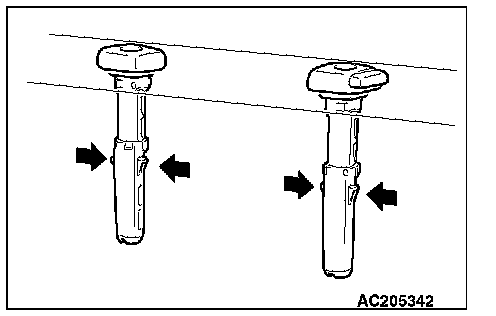

[[A]] HEADRESTRAINT GUIDE REMOVAL
