Component Tests and General Diagnostics

INSPECTION

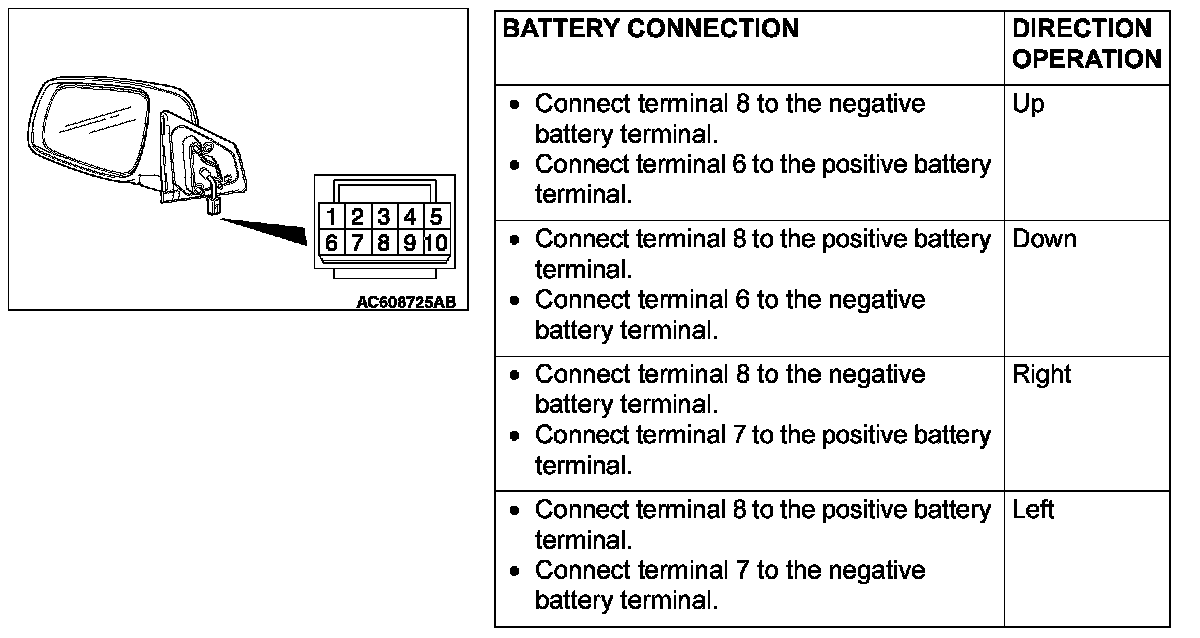

REMOTE CONTROLLED MIRROR OPERATION CHECK

Remote Controlled Mirror Operation Check:

Check that the mirror moves as described in the table when each terminal is connected to the battery.

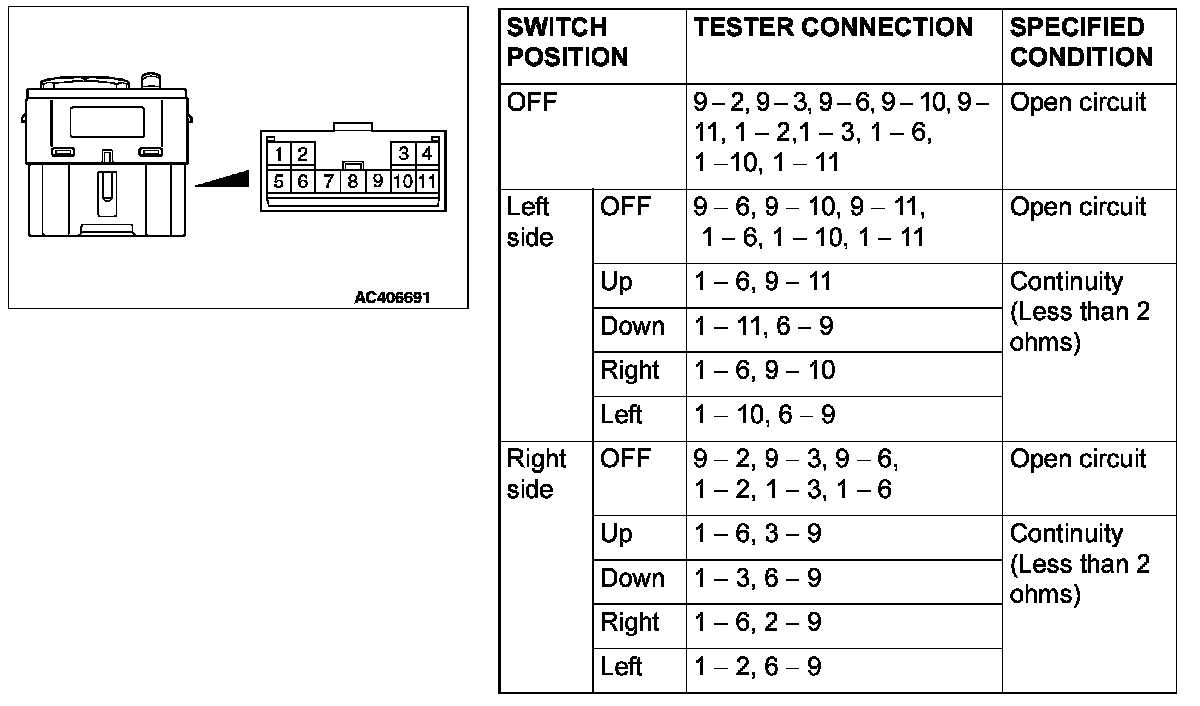

DOOR MIRROR CONTROL SWITCH CONTINUITY CHECK

Door Mirror Control Switch Continuity Check:

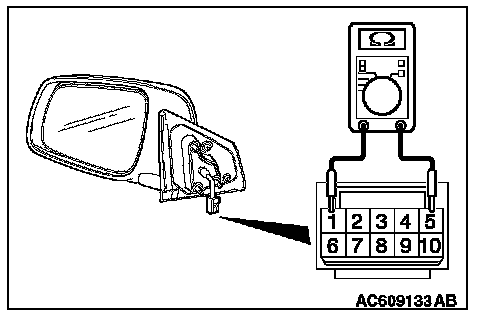

HEATED DOOR MIRROR CHECK

CAUTION: When relocating the car between locations with extremely different temperatures (warm and cold), leave the car in the location for a while to adapt to the temperature prior to checking it.







Check that the resistance value between the connector terminals is at the standard value.

Standard value: 8.4 ± 1.2 ohms at 25° C(77° F)
