Warning and Warning Indicator List

KEYLESS OPERATION SYSTEM (KOS)

WARNING AND WARNING INDICATOR LIST [VEHICLES WITHOUT COLOR LIQUID CRYSTAL DISPLAY]

If the KOS failed, operated improperly, KOS-ECU warns the driver of this by setting off the outer tone alarm and the keyless operation warning indicator, on the multi information display in the combination meter. If the TPMS fails or the tire pressure is low, KOS-ECU warns the driver of that state by the TPMS warning light and the multi information display in the combination meter.

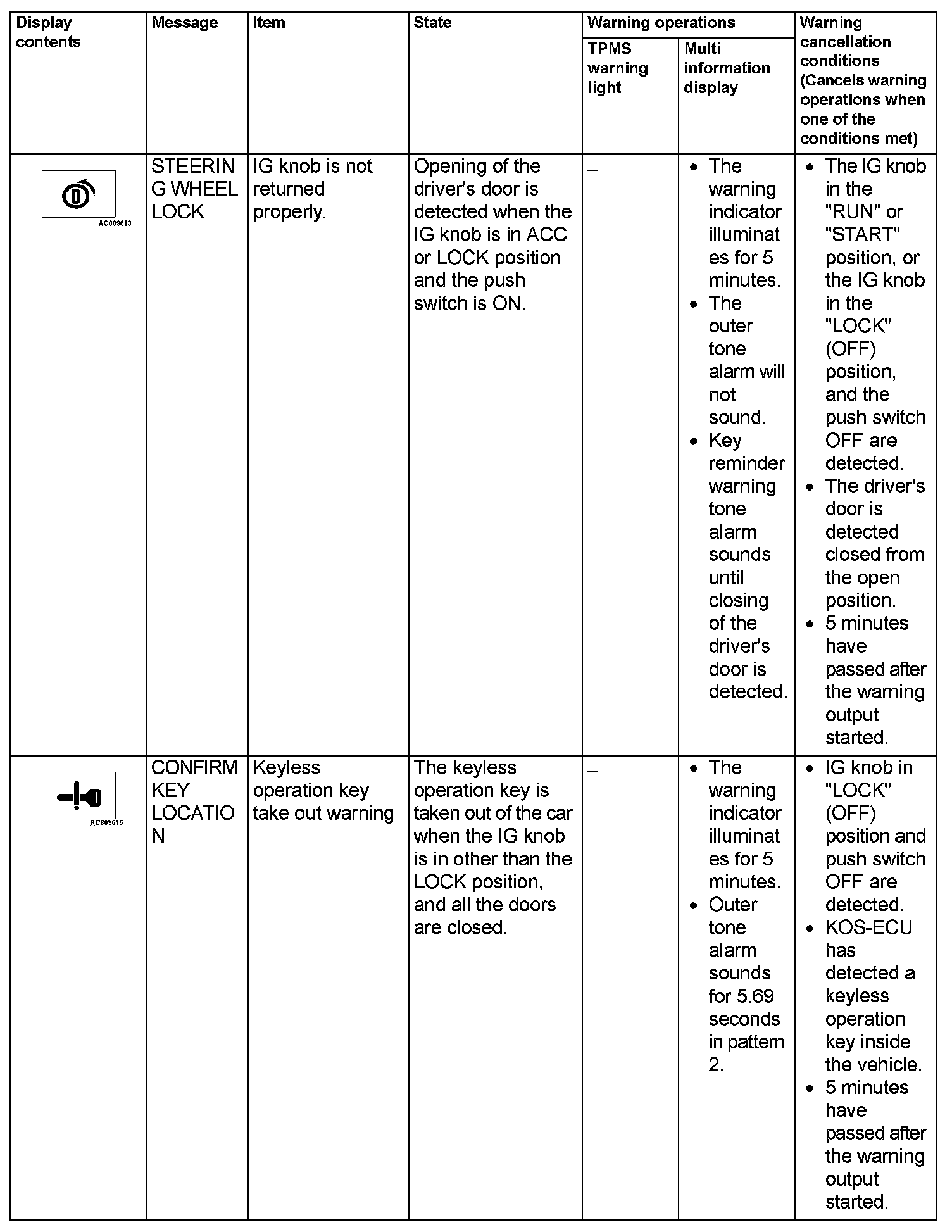

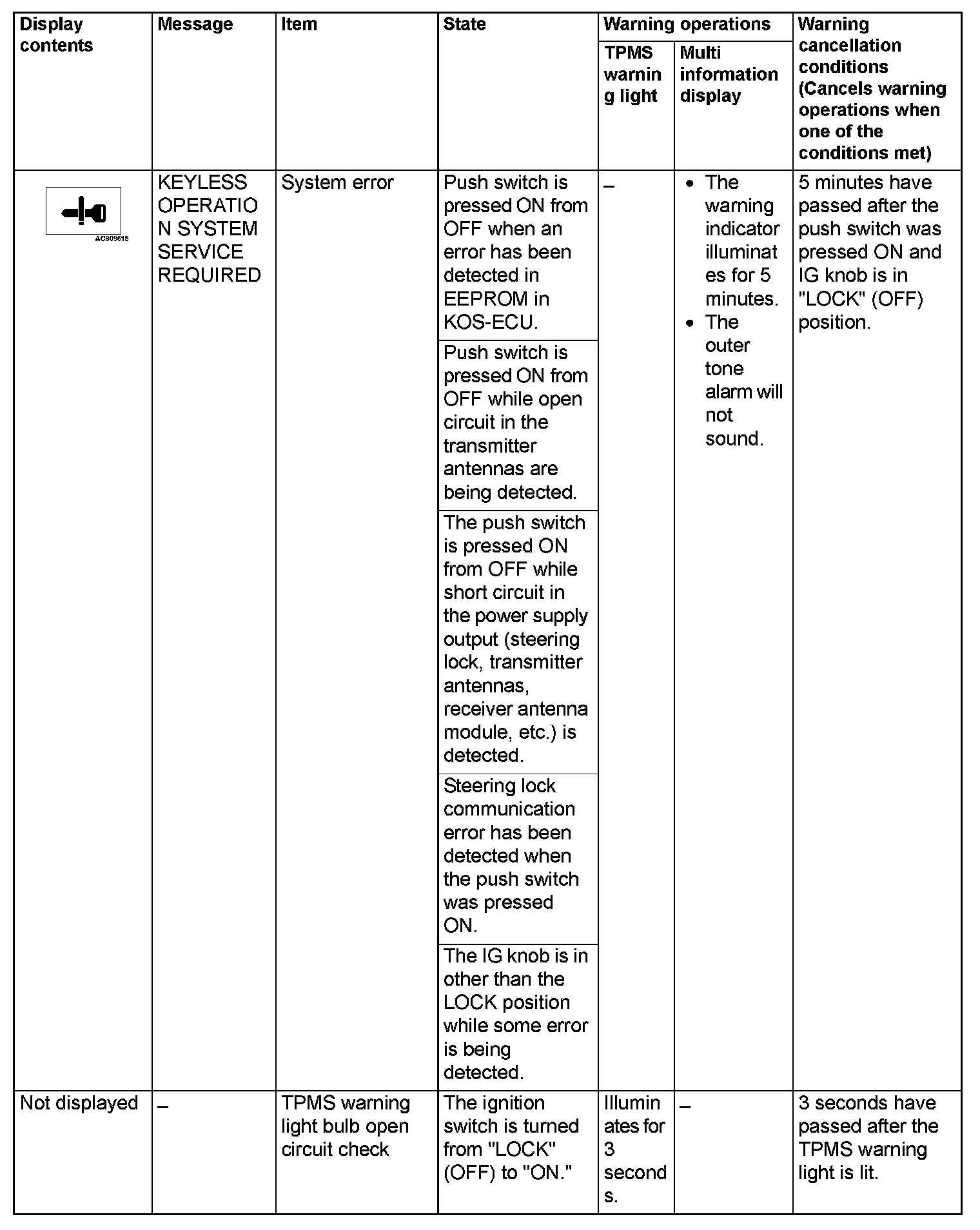

Part 1:

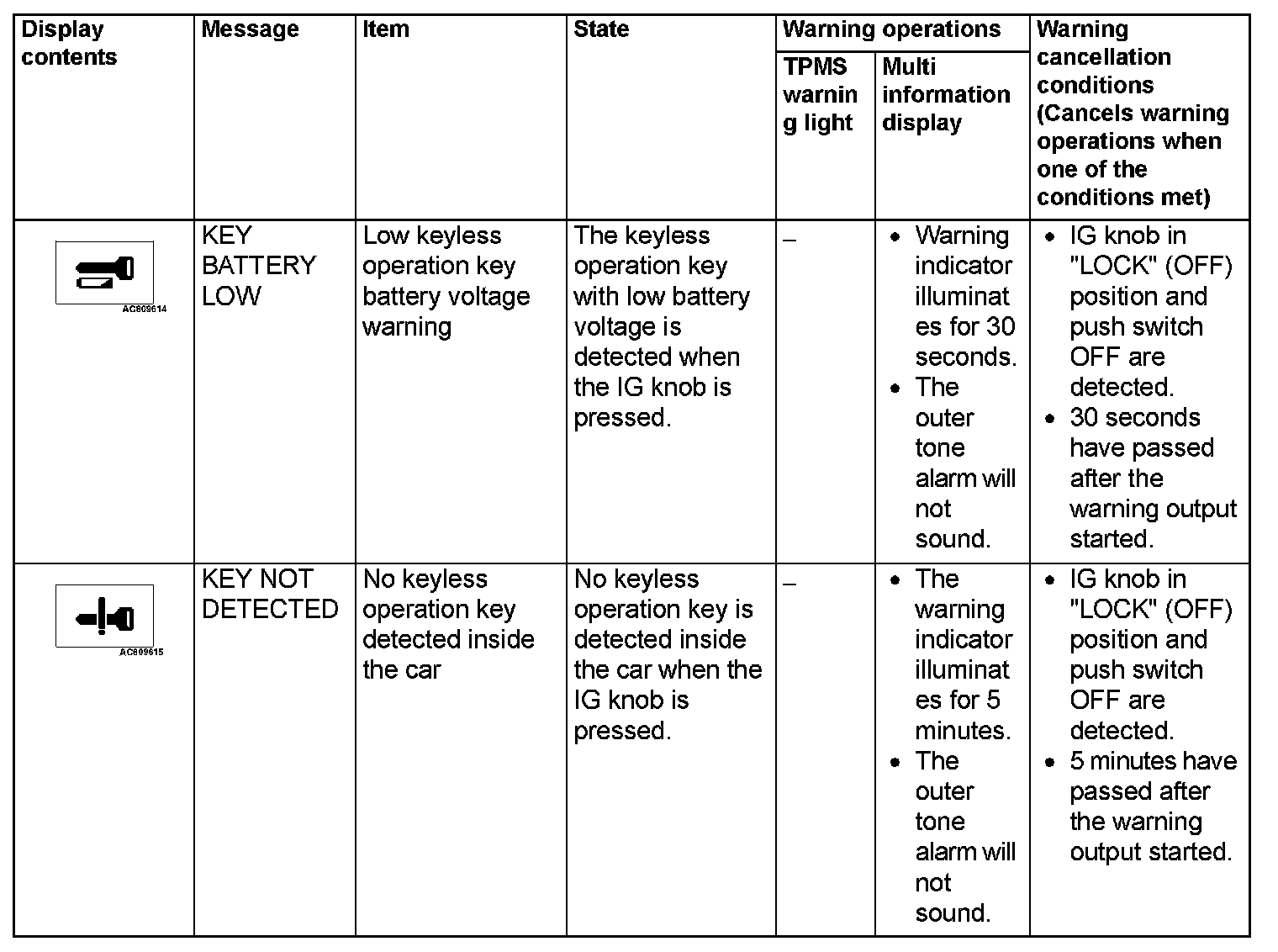

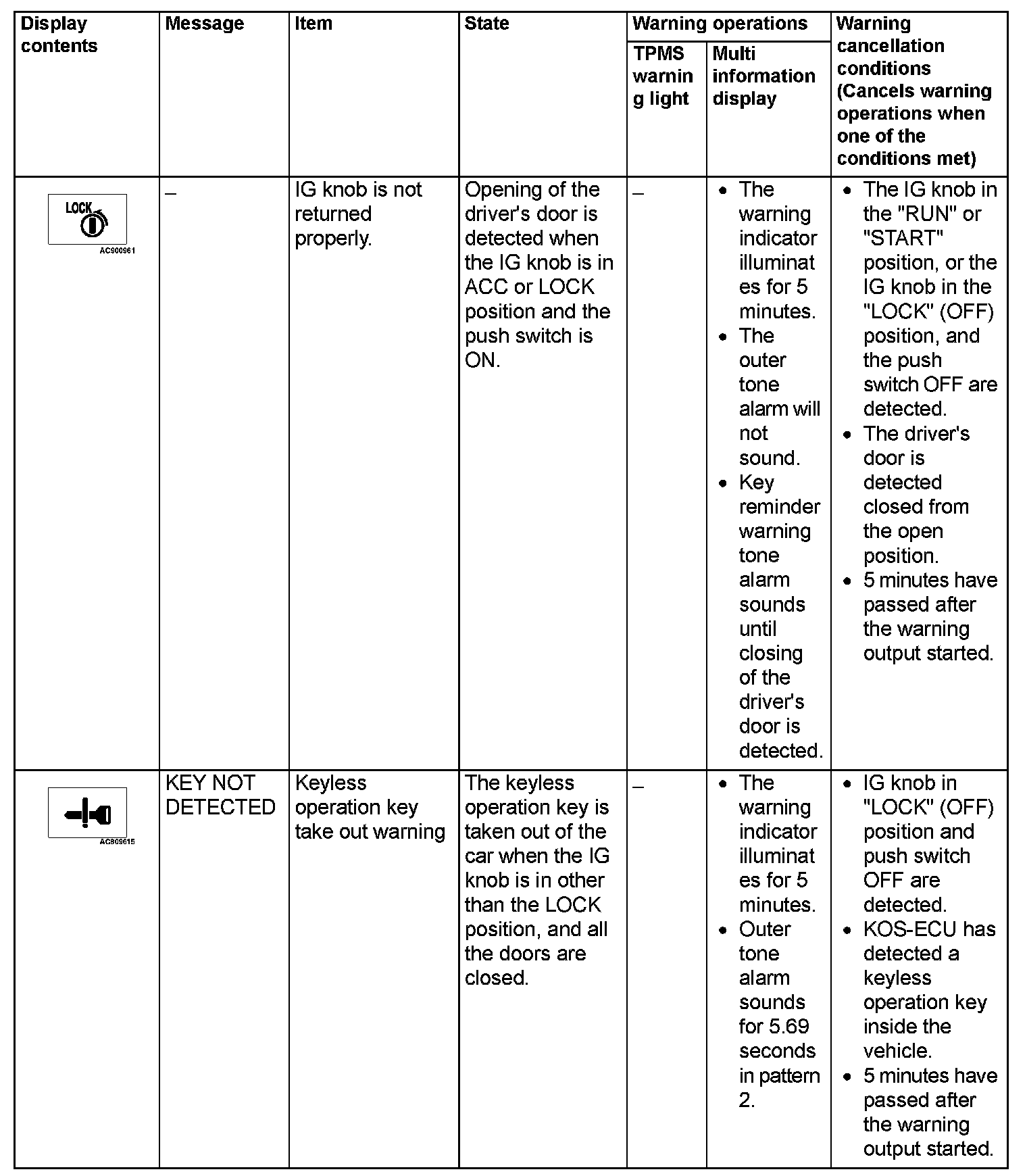

Part 2:

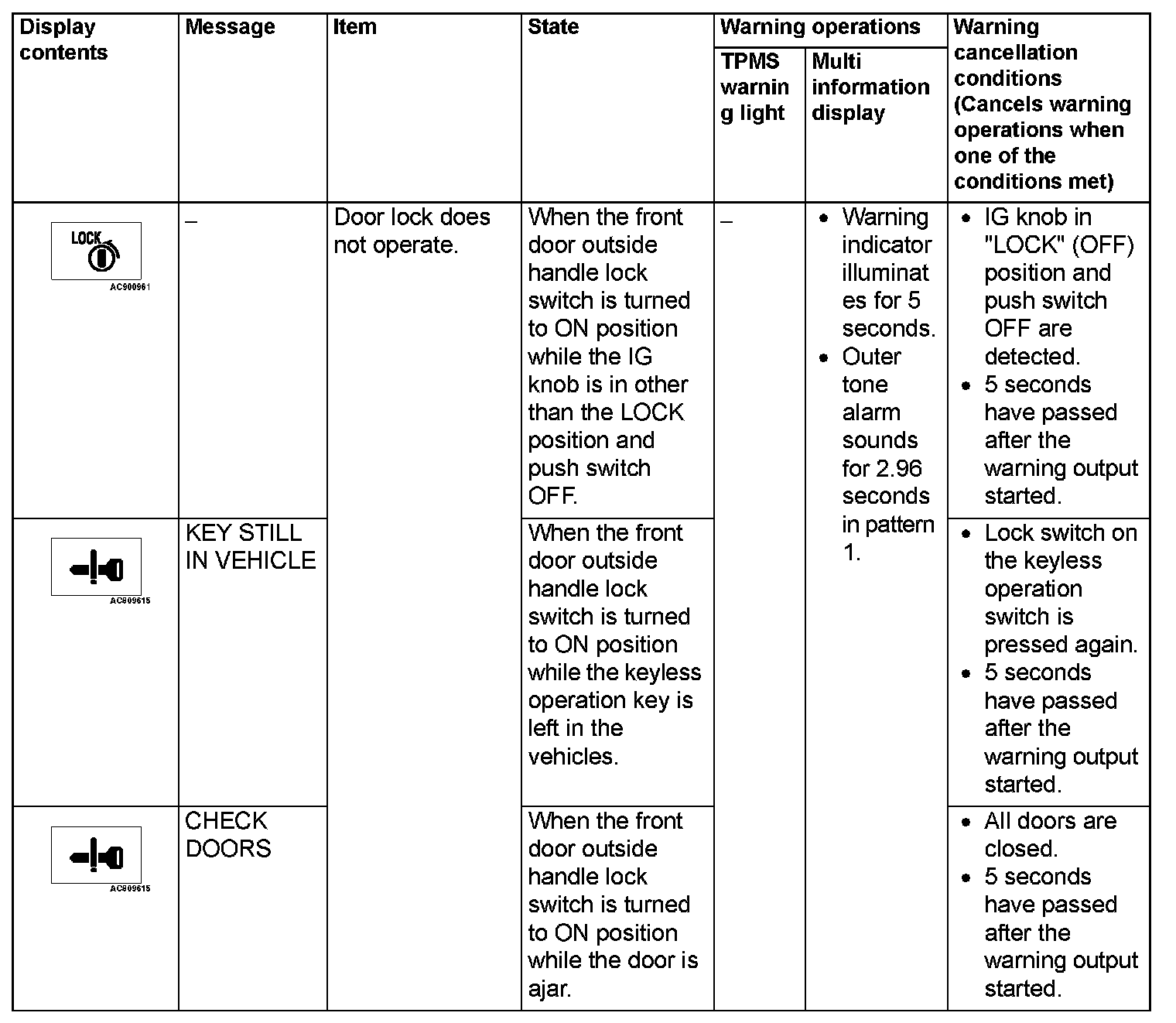

Part 3:

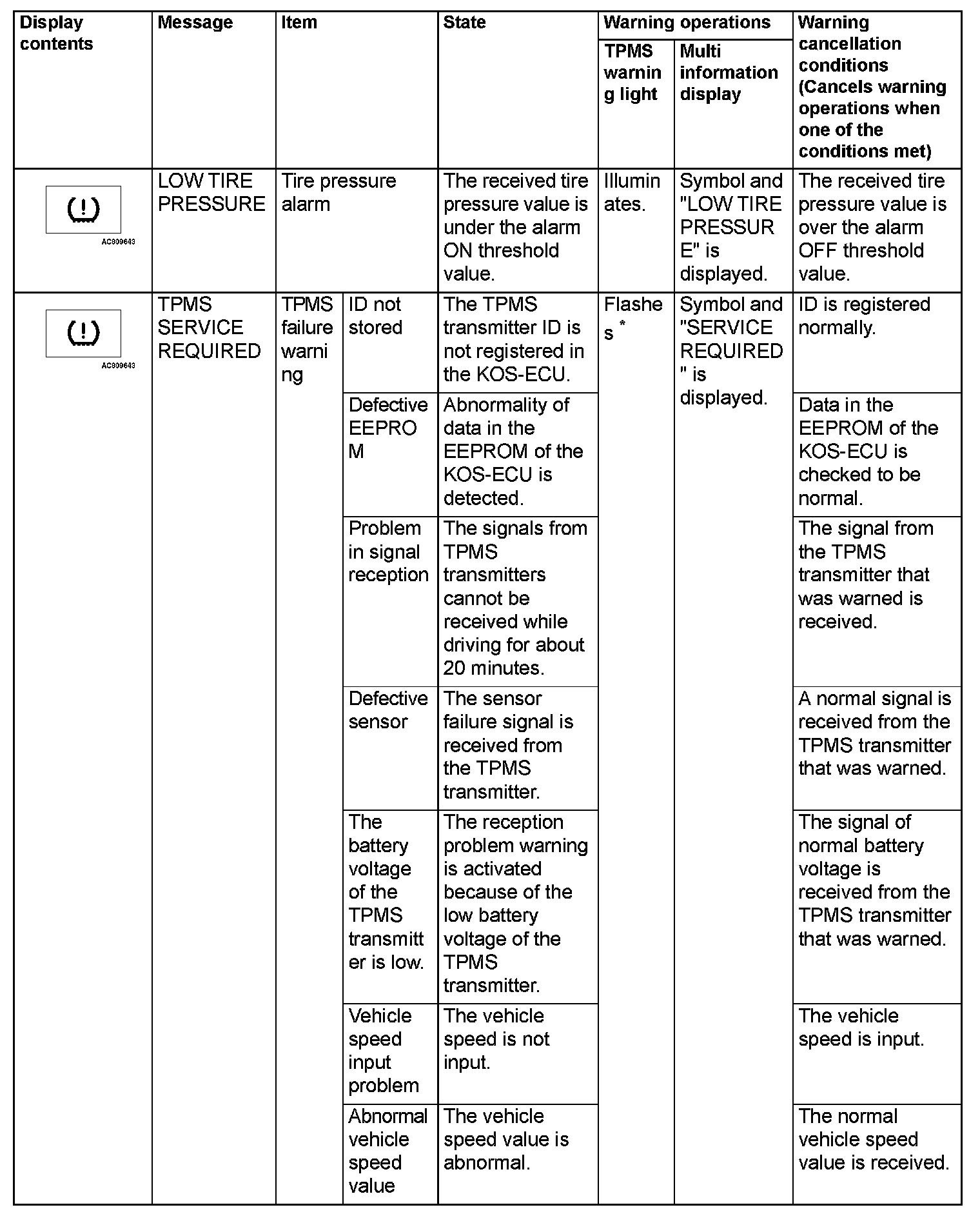

Part 4:

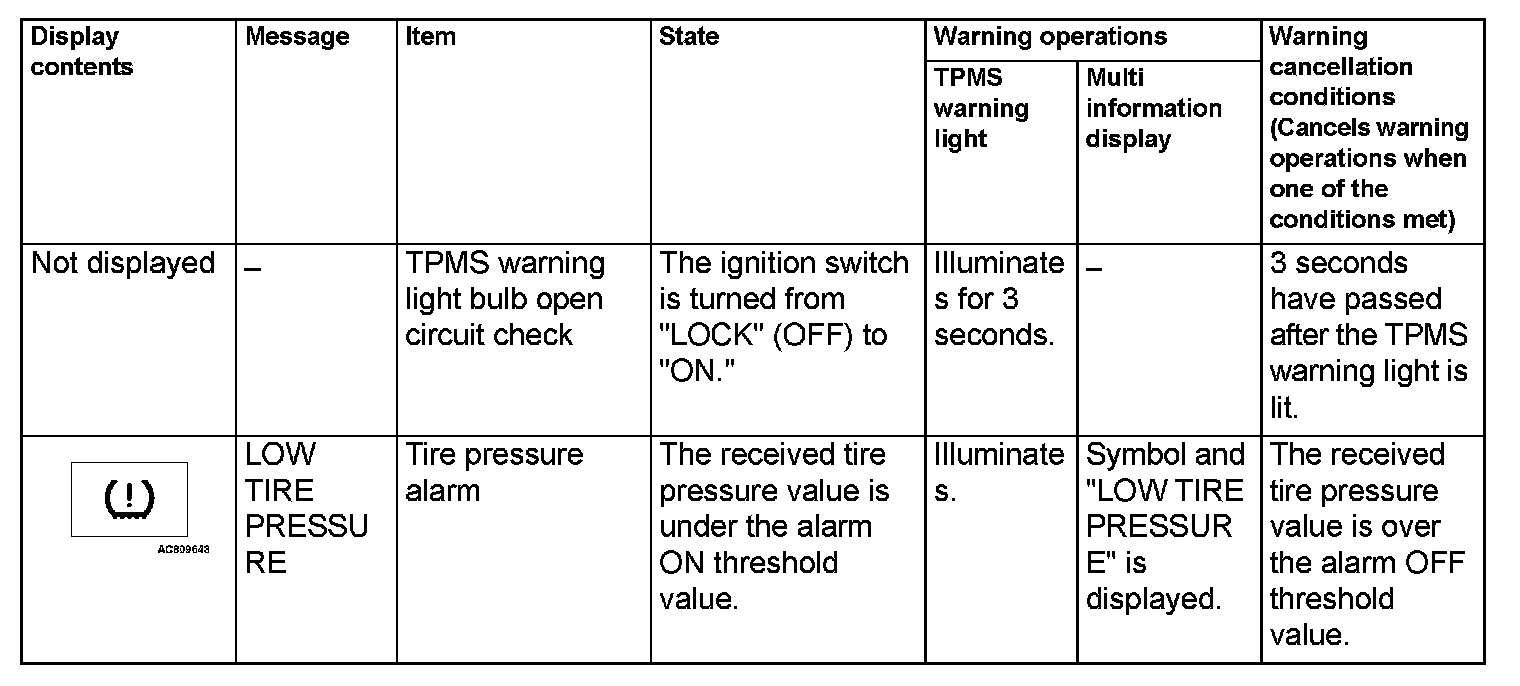

Part 5:

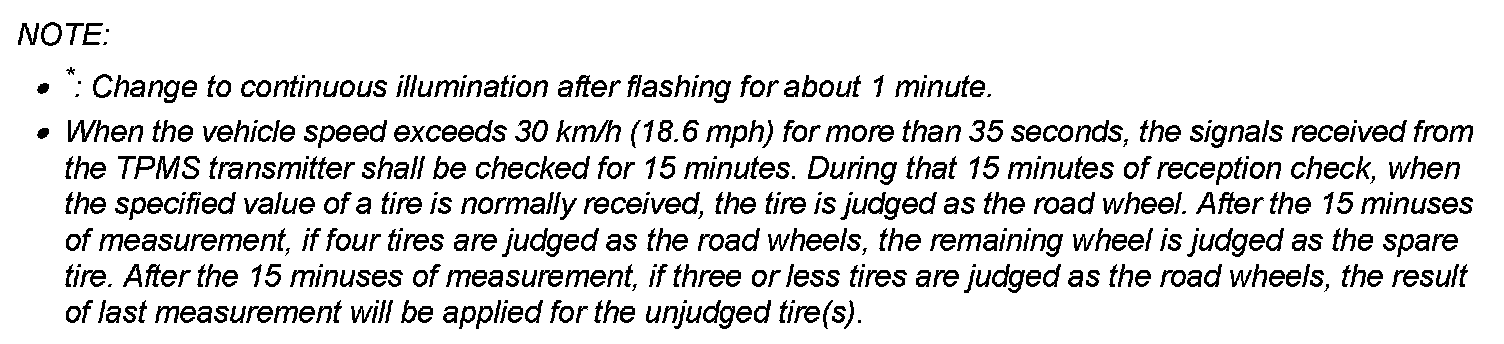

Part 6:

WARNING AND WARNING INDICATOR LIST [VEHICLES WITH COLOR LIQUID CRYSTAL DISPLAY]

If the KOS failed, operated improperly, KOS-ECU warns the driver of this by setting off the outer tone alarm and the keyless operation warning indicator, on the multi information display in the combination meter. If the TPMS fails or the tire pressure is low, KOS-ECU warns the driver of that state by the TPMS warning light and the multi information display in the combination meter.

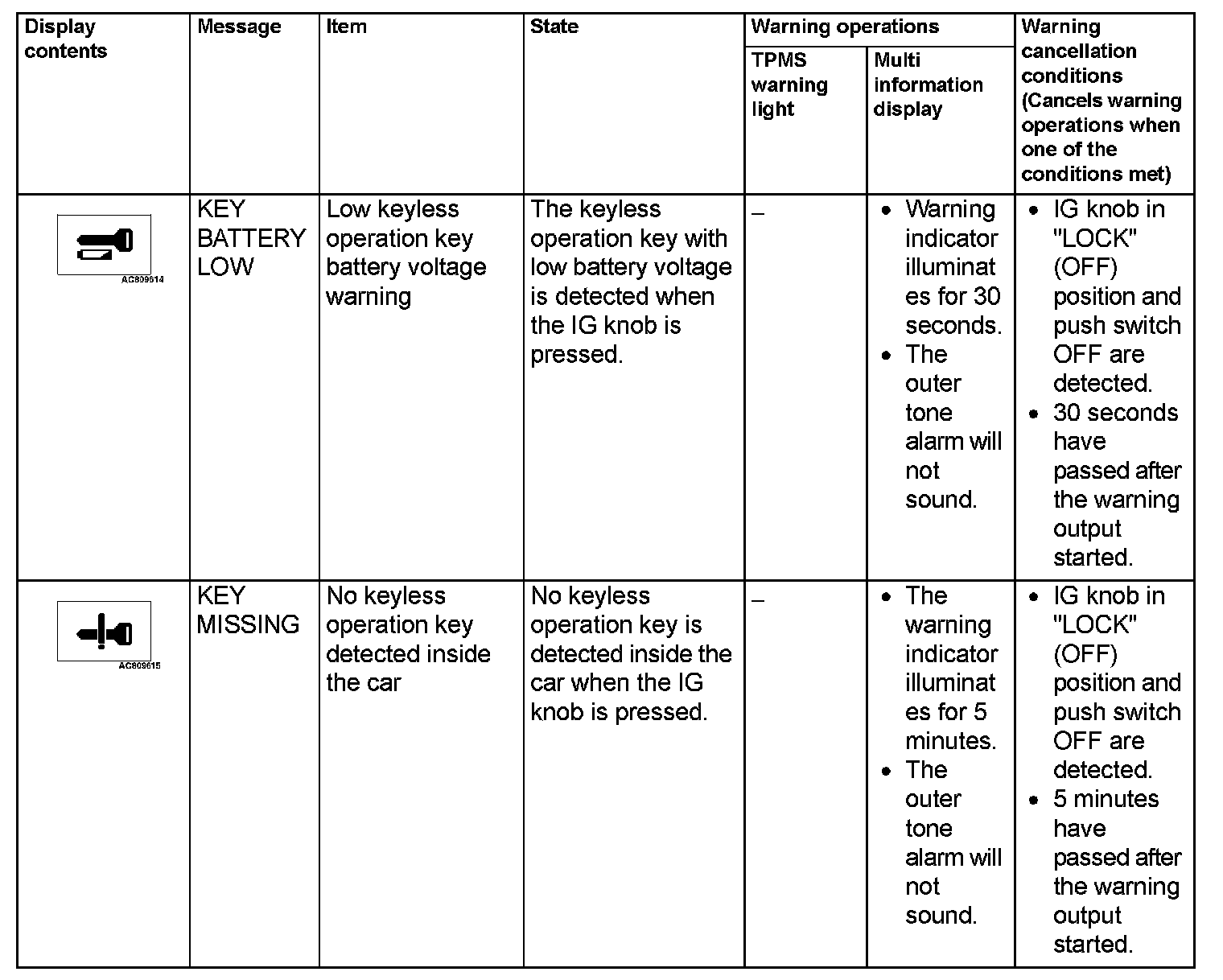

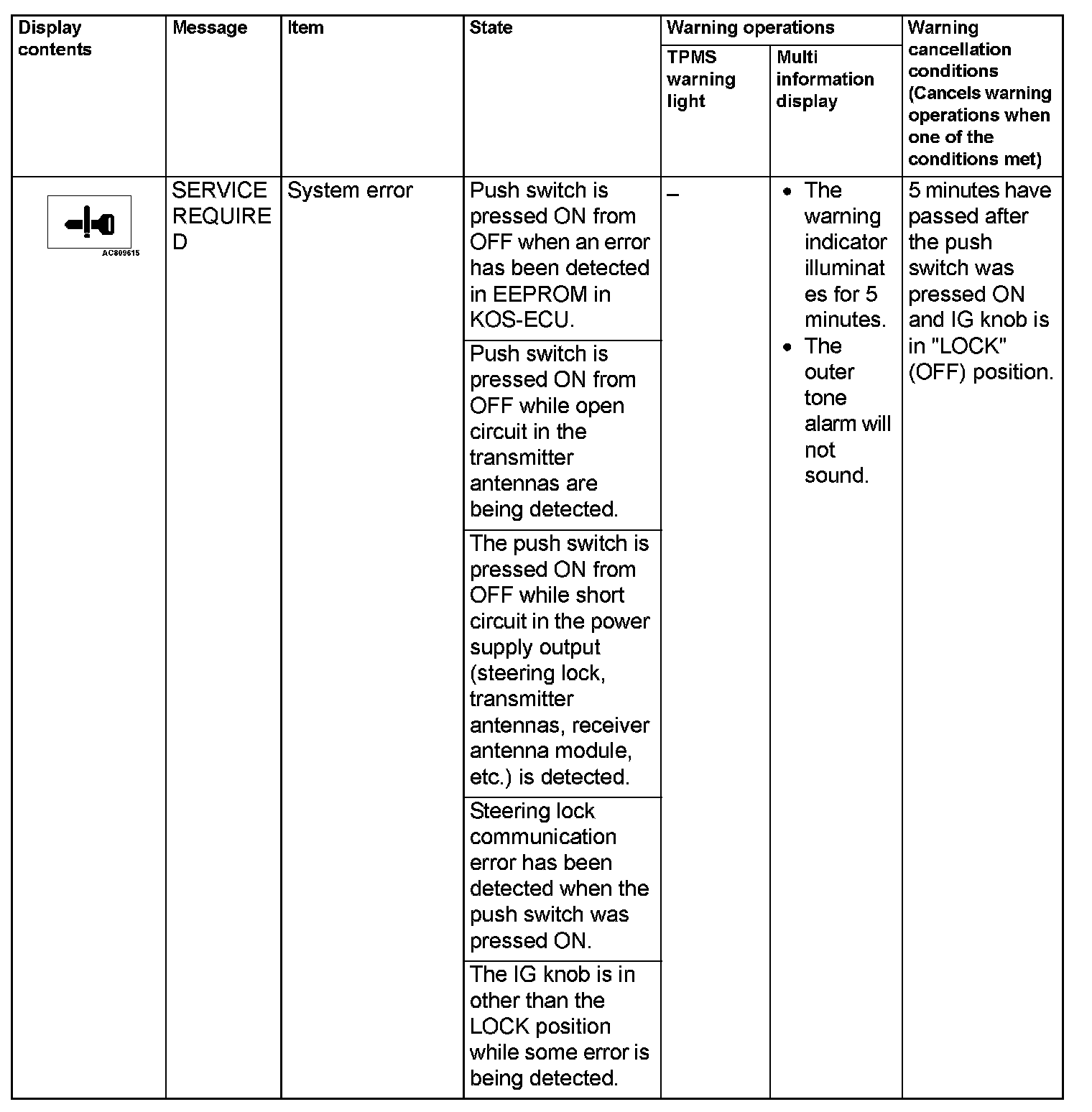

Part 1:

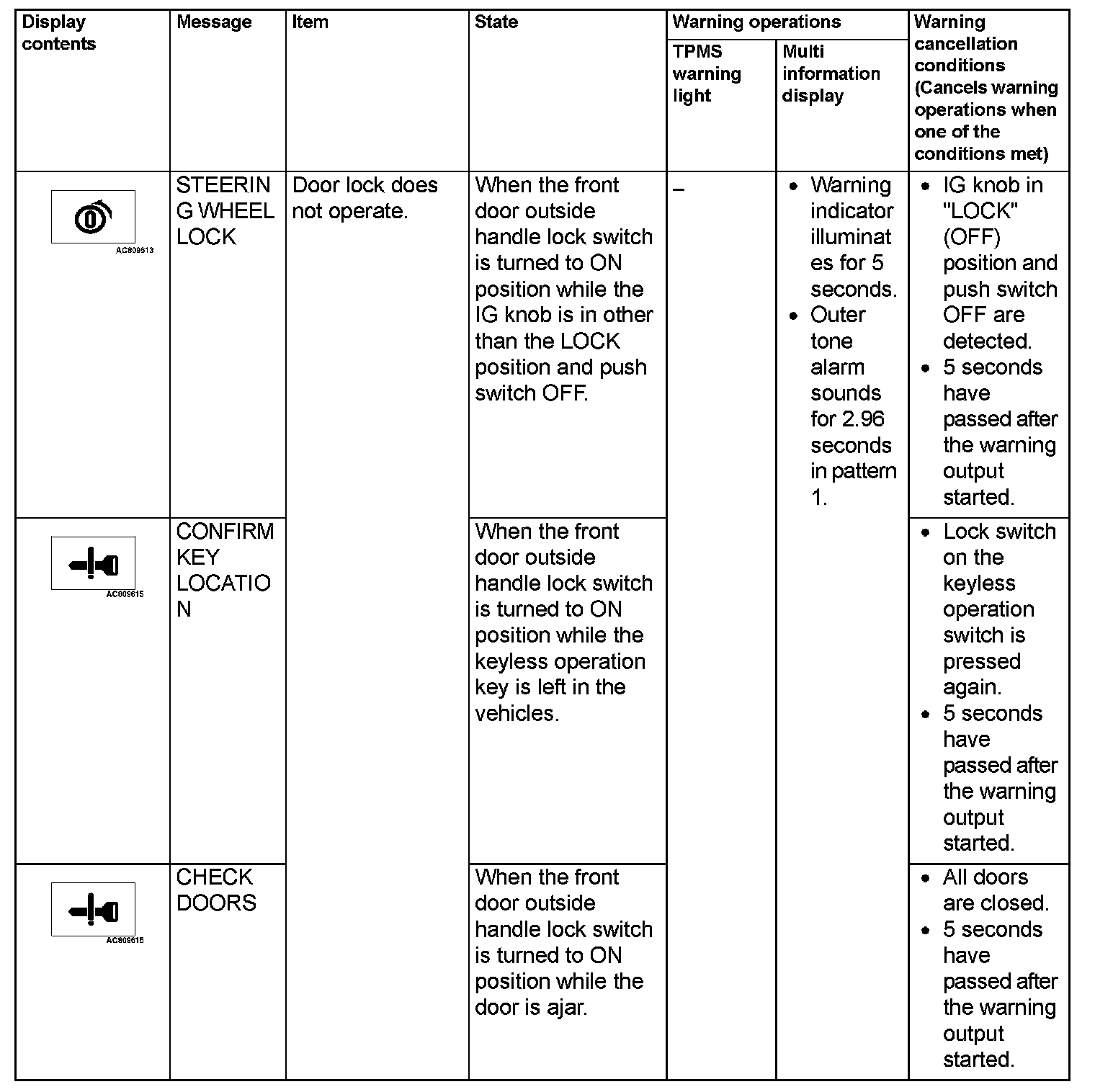

Part 2:

Part 3:

Part 4:

Part 5:
