Protector Film

PROTECTOR FILM [Vehicles without side air dam]

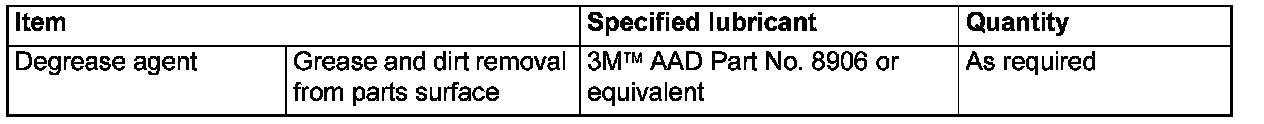

LUBRICANT

Lubricant:

REMOVAL AND INSTALLATION

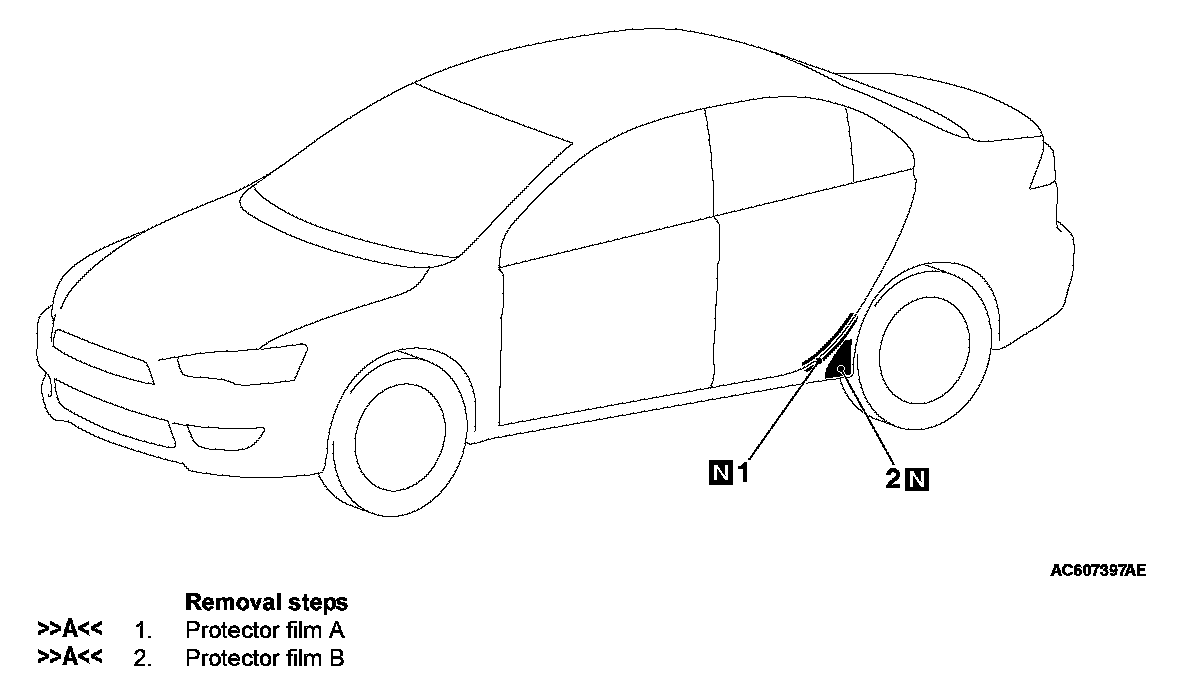

Removal Steps 1-2:

INSTALLATION SERVICE POINT

]]A[[ FILM INSTALLATION

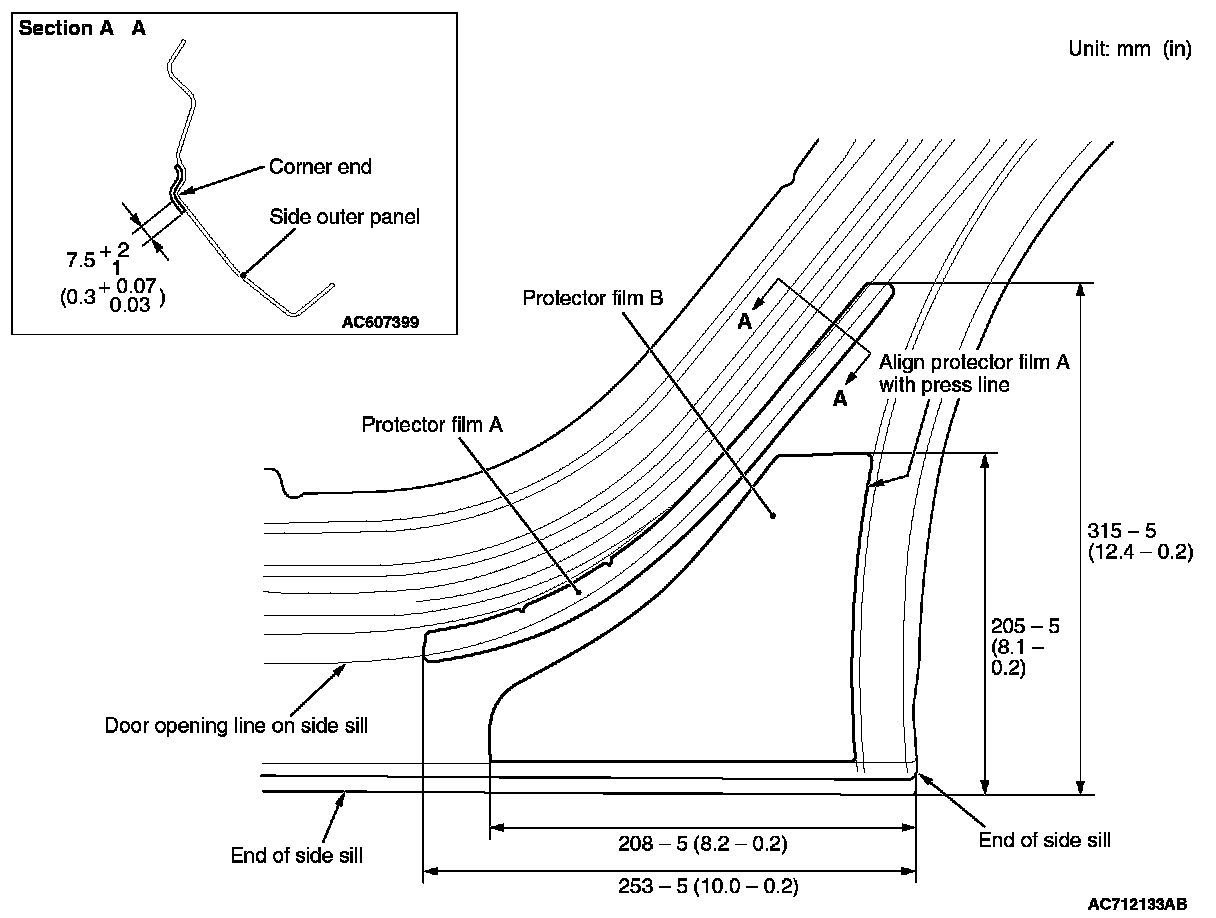

Installation point







CAUTION:
- The ambient temperature should be 20 to 38° C (68 to 100° F). Ensure that the working area is clean.
- If ambient temperature is less than 20° C (68° F), heat the protector film and application surface to a temperature of 20 to 30° C (68 to 86° F).
- Be careful that air bubbles are not formed under the protector film.

Installation procedure

1. Use 3M(TM) AAD Part number 8906 or equivalent to degrease the protector film application surface on the doors and body.
2. Remove backing paper from the protector film, and apply the film to the specified position.
