Adjustment of Clearance Around Hood

ADJUSTMENT OF CLEARANCE AROUND HOOD [Except RALLIART]

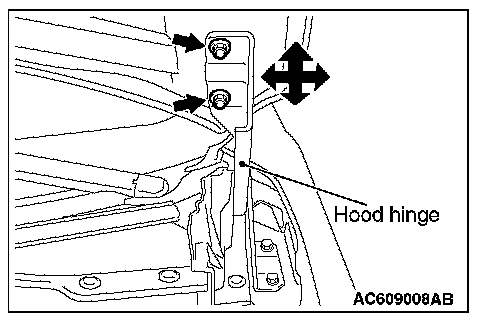

1. Loosen the hood hinge mounting nuts but do not remove them. Move the hood hinge back/forth and left/right to align the hood level.
2. After the adjustment, tighten the hood hinge mounting nuts to 9.5 ± 3.5 N.m (84 ± 31 in-lb).
