Body Control Systems: Service Precautions

WIRELESS CONTROL MODULE (WCM)

WARNINGS/ALARMS [VEHICLES WITHOUT COLOR LIQUID CRYSTAL DISPLAY]

If the TPMS fails or the tire pressure is low, the WCM warns the driver of that state by the TPMS warning light and the multi information display in the combination meter.

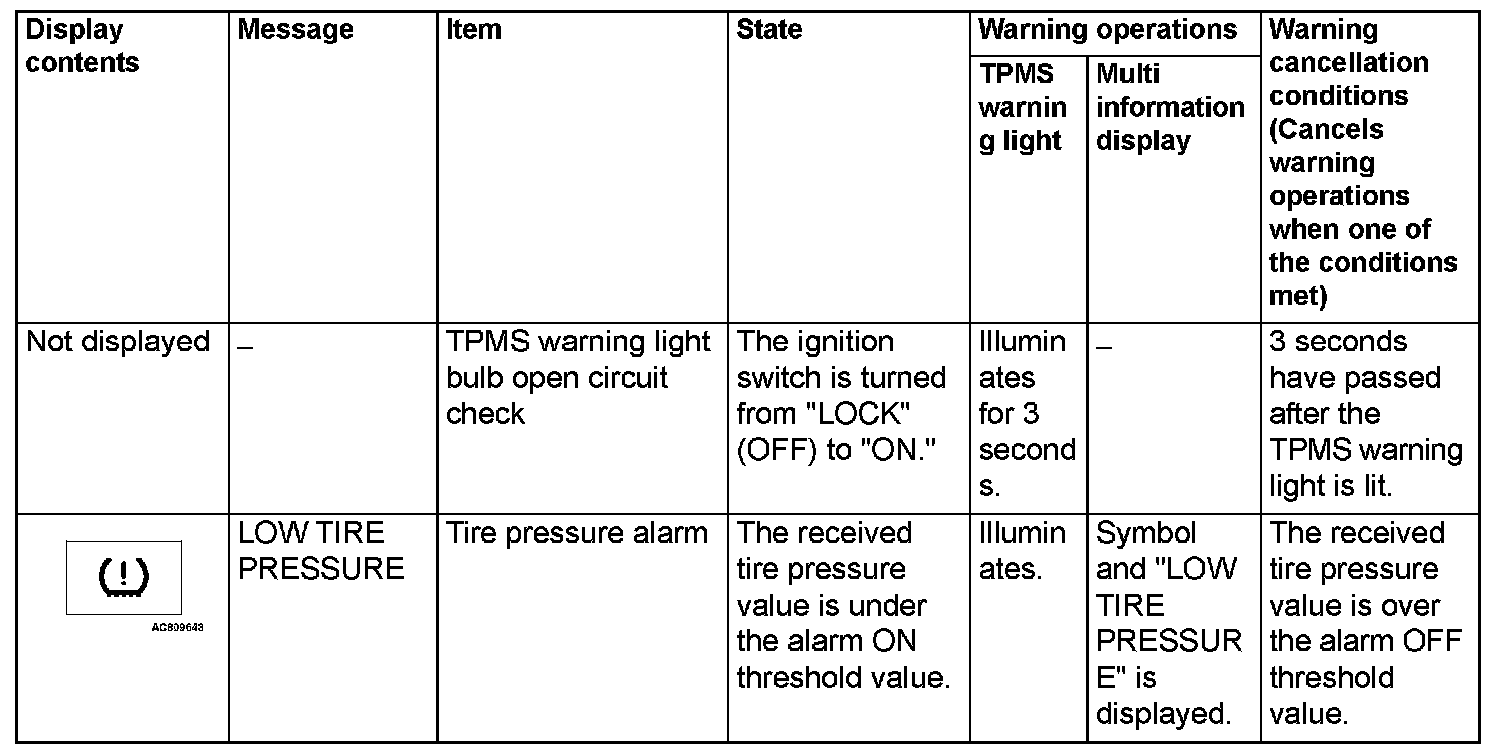

Part 1:

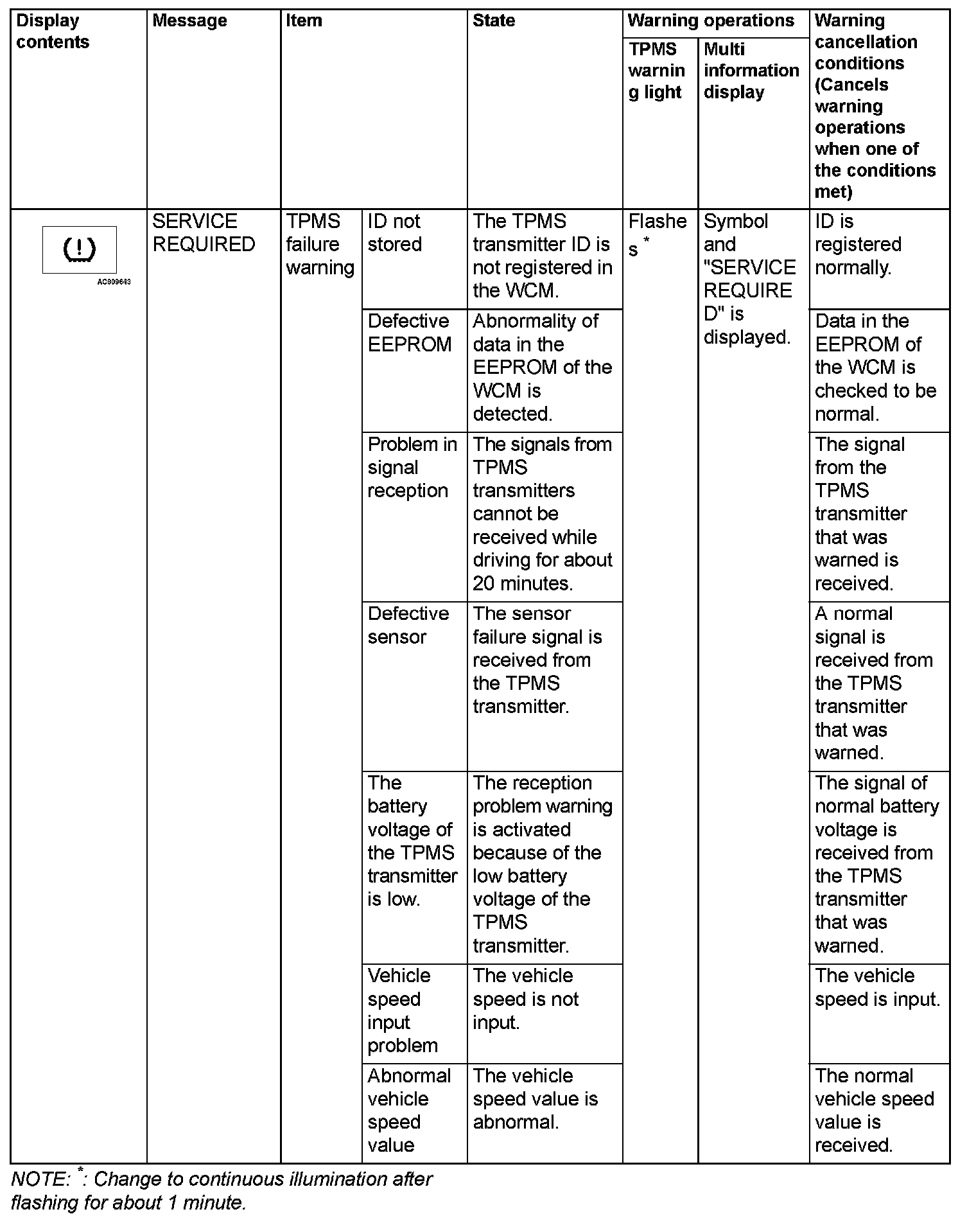

Part 2:

WARNINGS/ALARMS [VEHICLES WITH COLOR LIQUID CRYSTAL DISPLAY]

If the TPMS fails or the tire pressure is low, the WCM warns the driver of that state by the TPMS warning light and the multi information display in the combination meter.

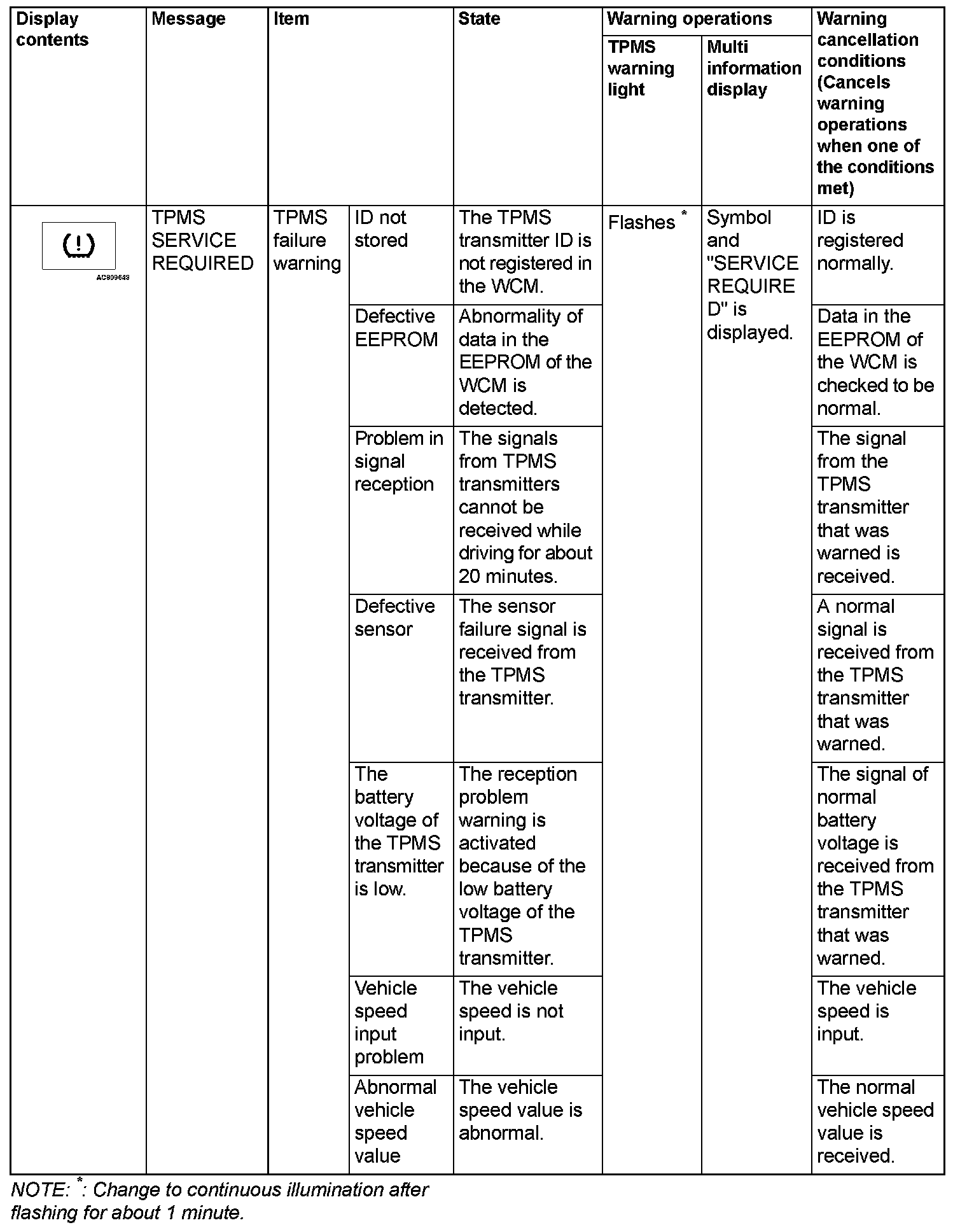

Part 1:

Part 2:
