Accessories and Optional Equipment: Service and Repair

MMCS

REMOVAL AND INSTALLATION

Multivision display

Pre-removal & Post-installation Operation:

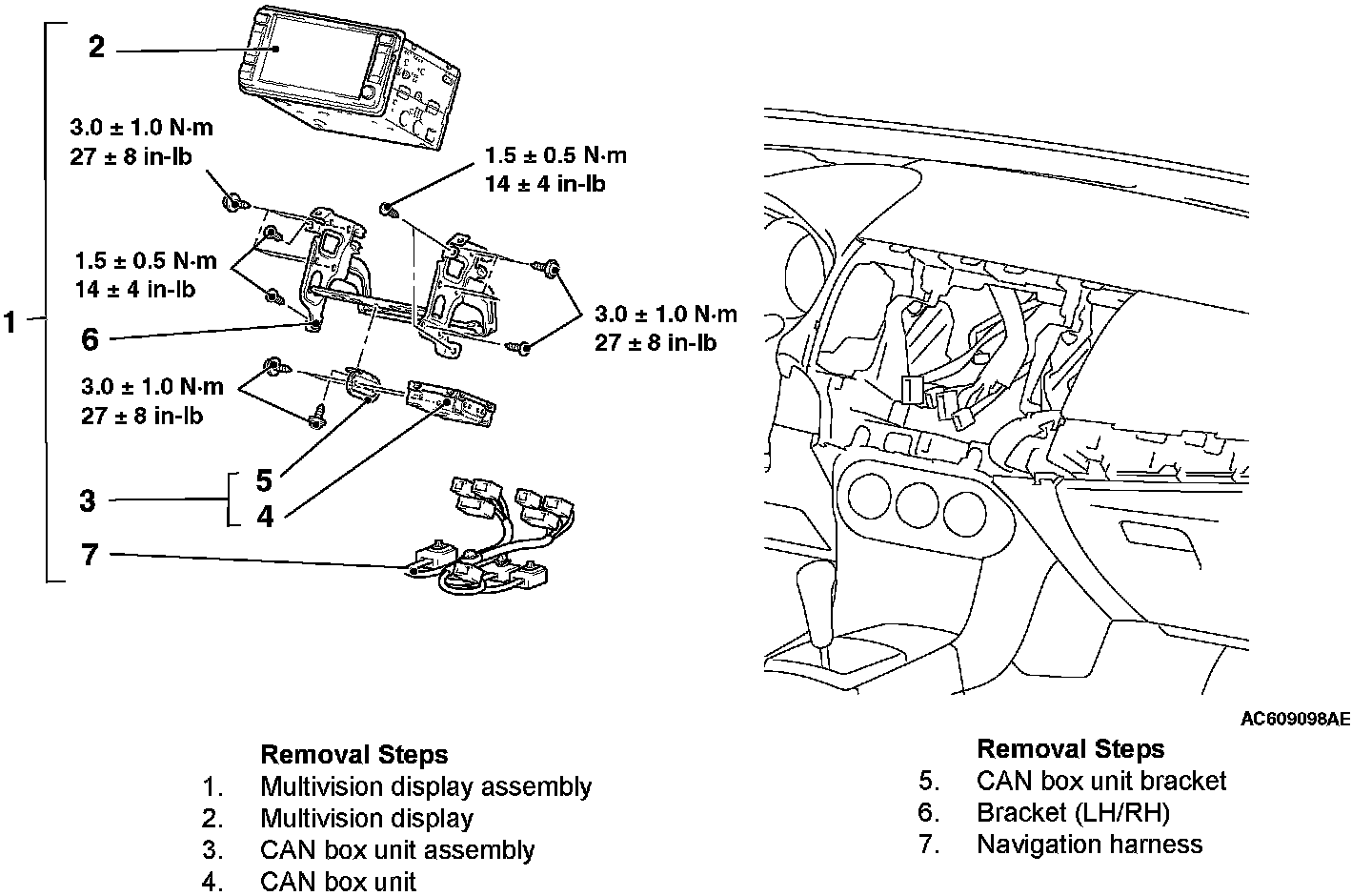

Removal Steps 1-7:

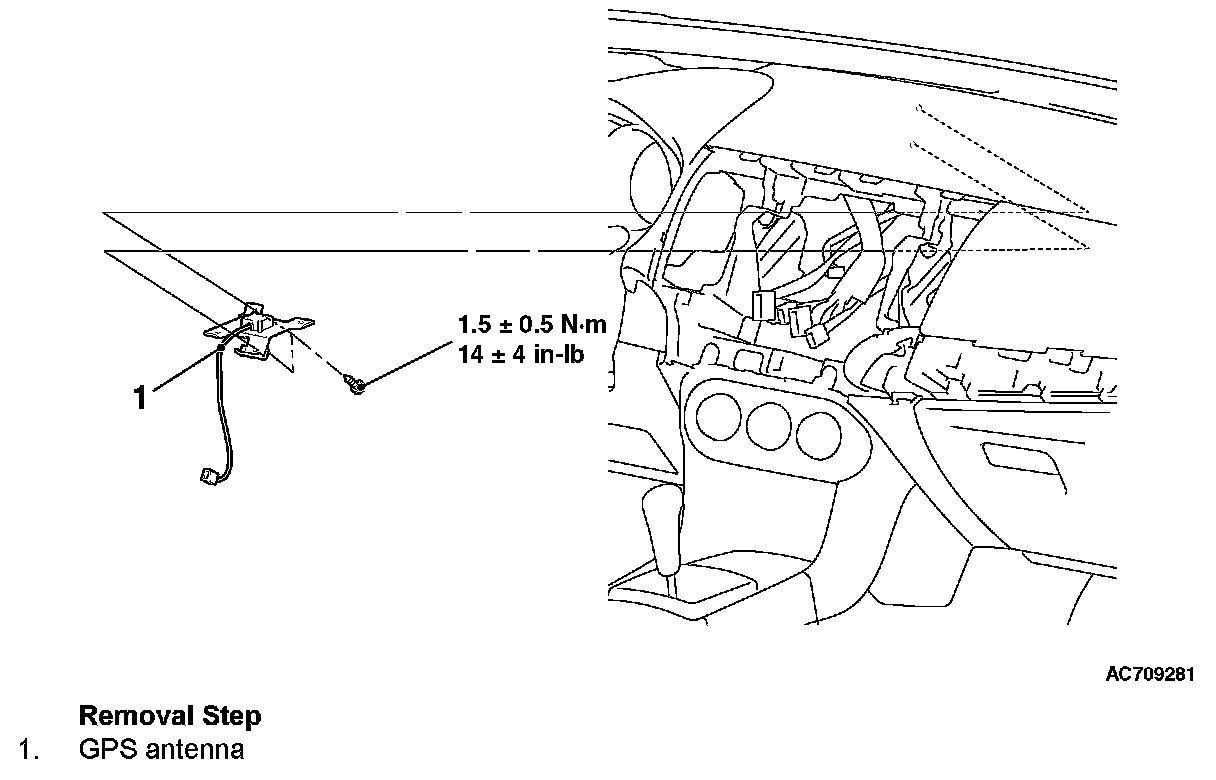

GPS antenna

Pre-removal & Post-installation Operation:

Removal Step 1:

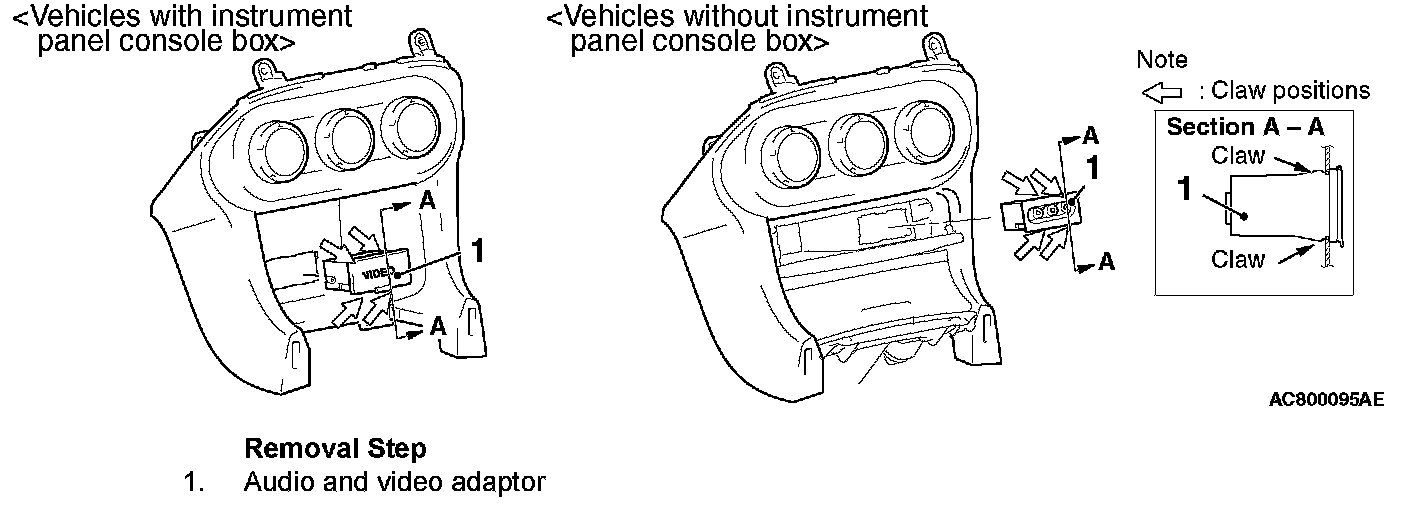

Audio and video adaptor

Pre-removal & Post-installation Operation:

Removal Step 1:

INSTALLATION SERVICE POINT

]]A[[ MULTIVISION DISPLAY

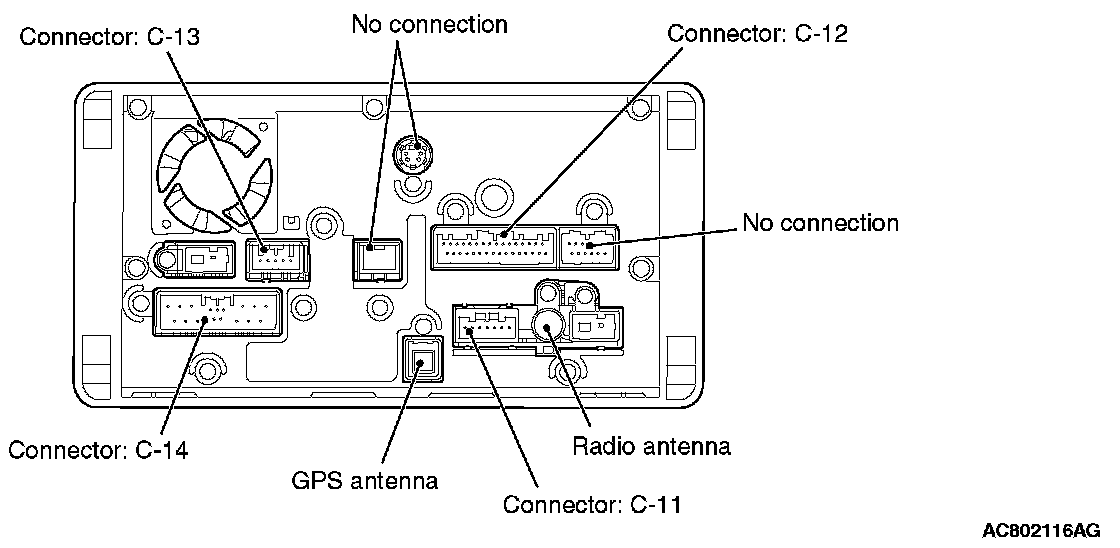

The connectors, antenna and cables connected to the multivision display are shown in the figure.
