Initial Inspection and Diagnostic Overview
RADIO AND CD PLAYERDIAGNOSIS
INTRODUCTION TO AUDIO SYSTEM DIAGNOSIS
RADIO AND CD PLAYER ERROR CODES
If the radio and CD player detects any malfunction in itself or the inserted CD, the error codes below will be shown on the display.

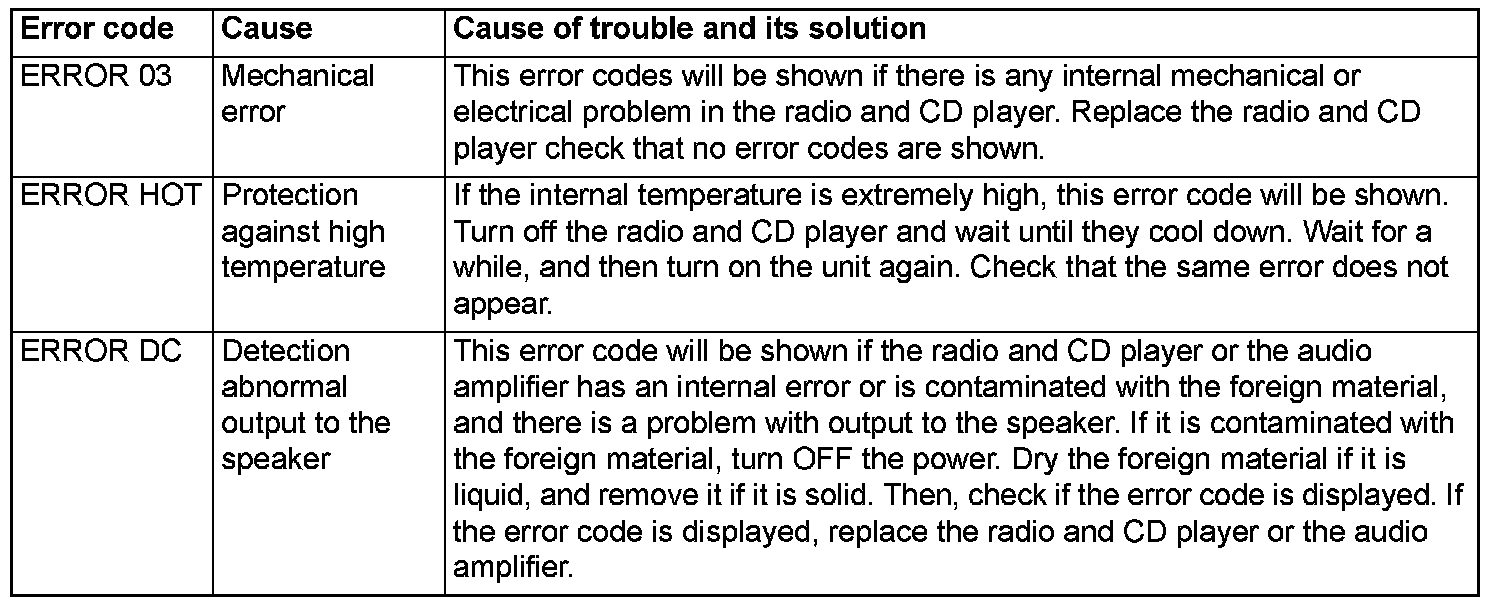

Radio And CD Player Error Codes (Part 1):
Radio And CD Player Error Codes (Part 2):
SATELLITE RADIO ERROR CODES [Vehicles with satellite radio tuner]
The display displays the error codes below if an abnormality related to the satellite radio is detected.

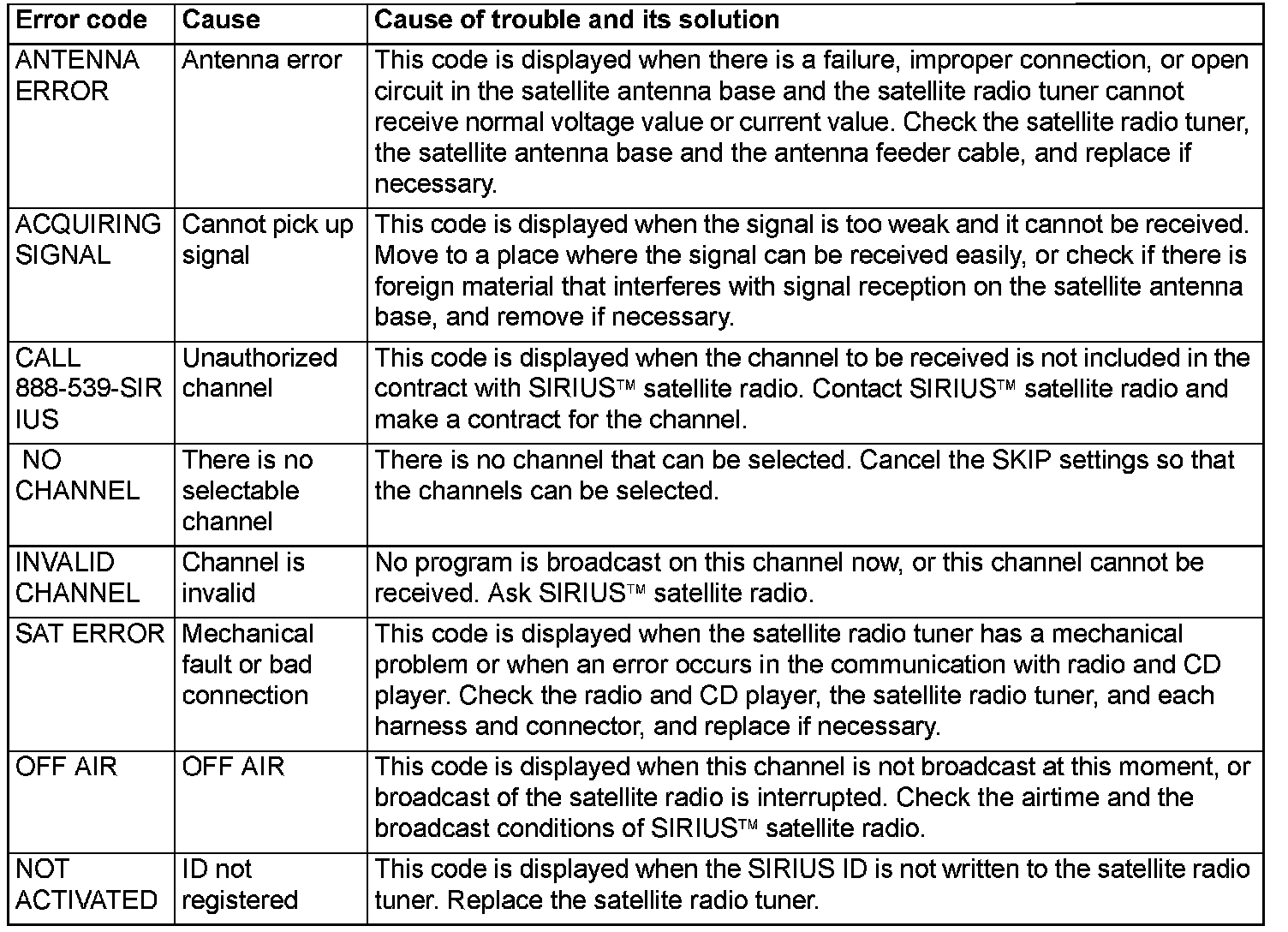

Satellite Radio Error Codes [Vehicles With Satellite Radio Tuner] (Part 1):

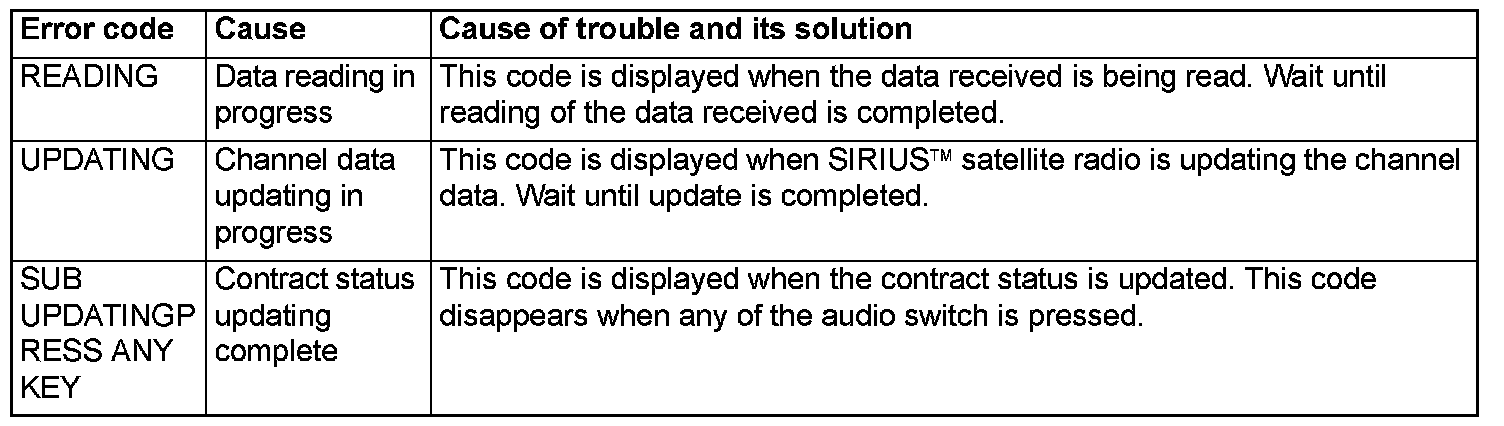

Satellite Radio Error Codes [Vehicles With Satellite Radio Tuner] (Part 2):
