Speaker: Service and Repair

REMOVAL AND INSTALLATION

DOOR SPEAKER

Pre-removal Operation:

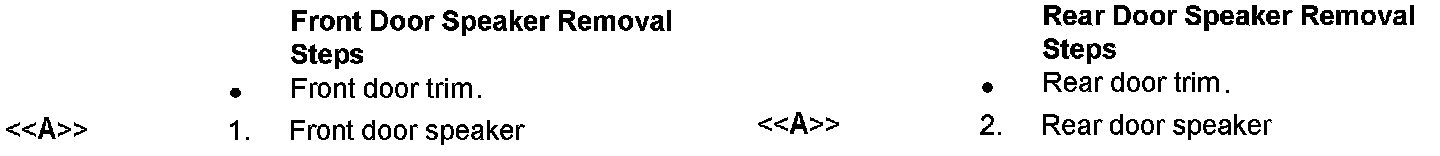

Removal Steps 1-2 (Part 1):

Removal Steps 1-2 (Part 2):

REMOVAL SERVICE POINT

[[A]] REMOVAL OF FRONT DOOR SPEAKER/REAR DOOR SPEAKER

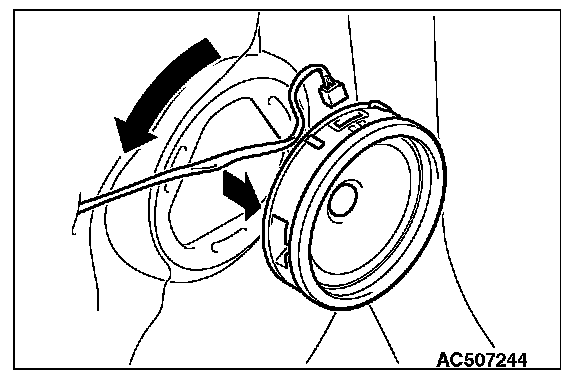

Disconnect the connector, and remove by twisting as shown in the figure.

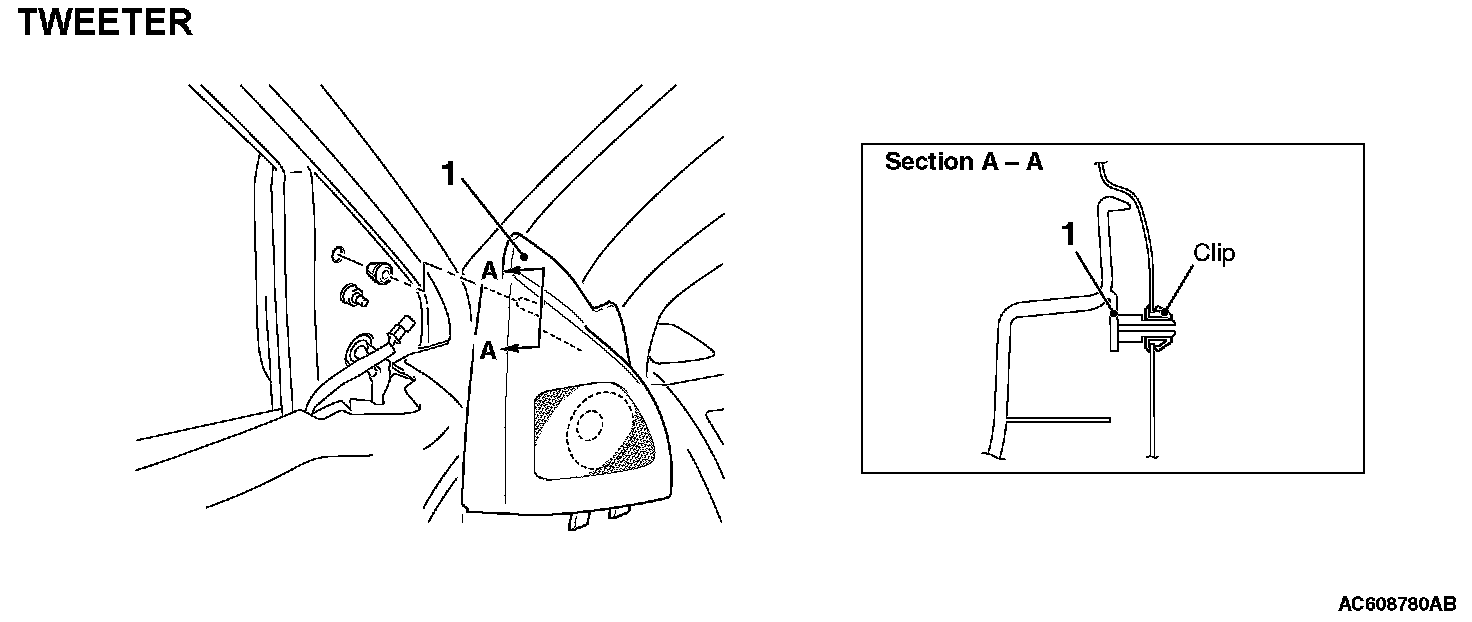

TWEETER

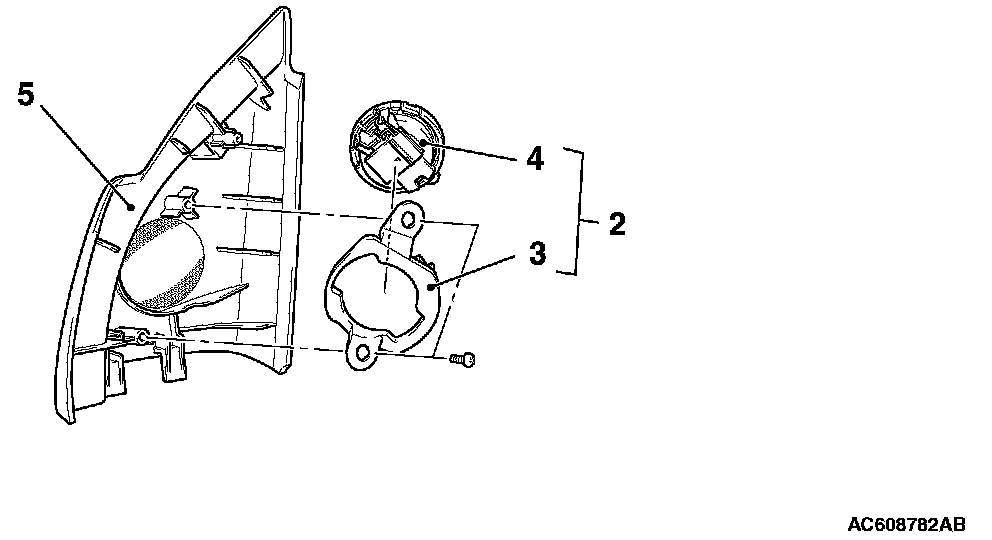

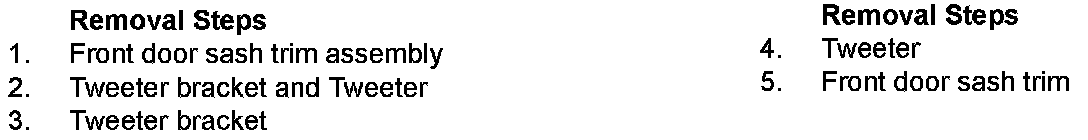

Removal Steps 1-5 (Part 1):

Removal Steps 1-5 (Part 1):

Removal Steps 1-5 (Part 2):

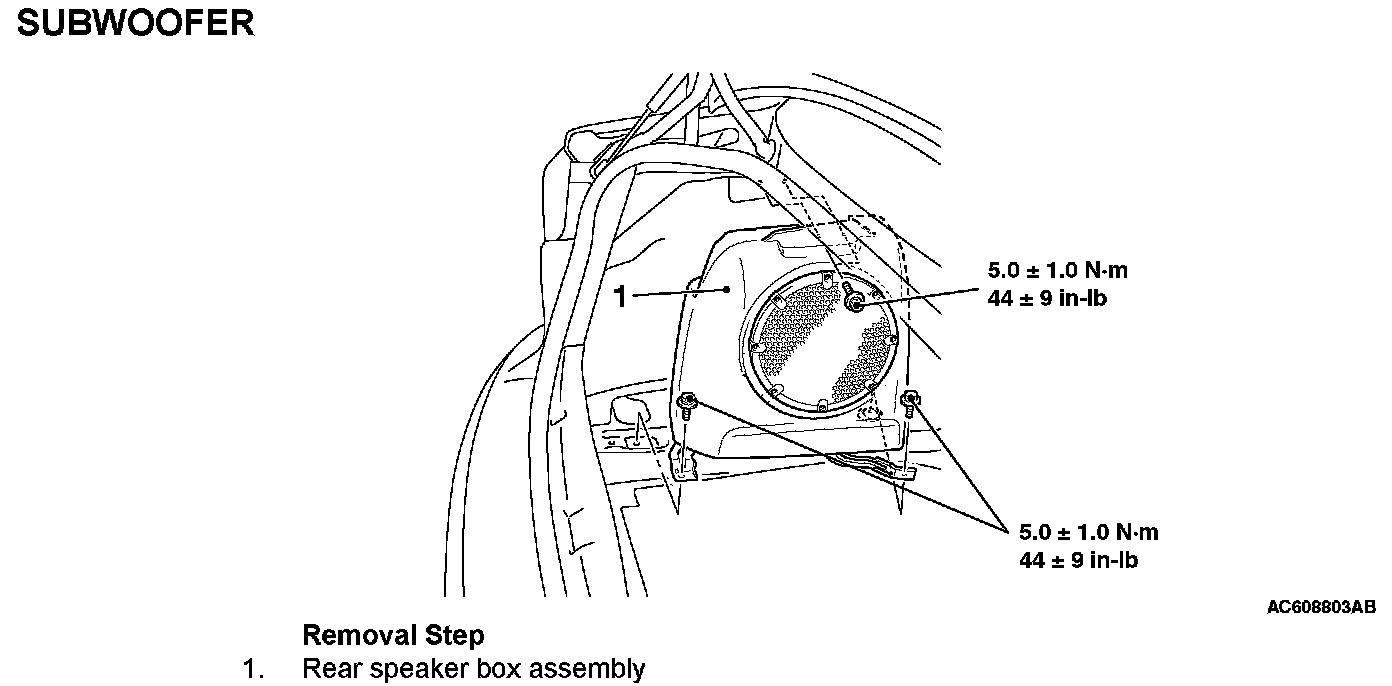

SUBWOOFER

Removal Step 1:
