Removal and Replacement

The contents of this article and images reflect the changes identified in TSB-10-54-009.

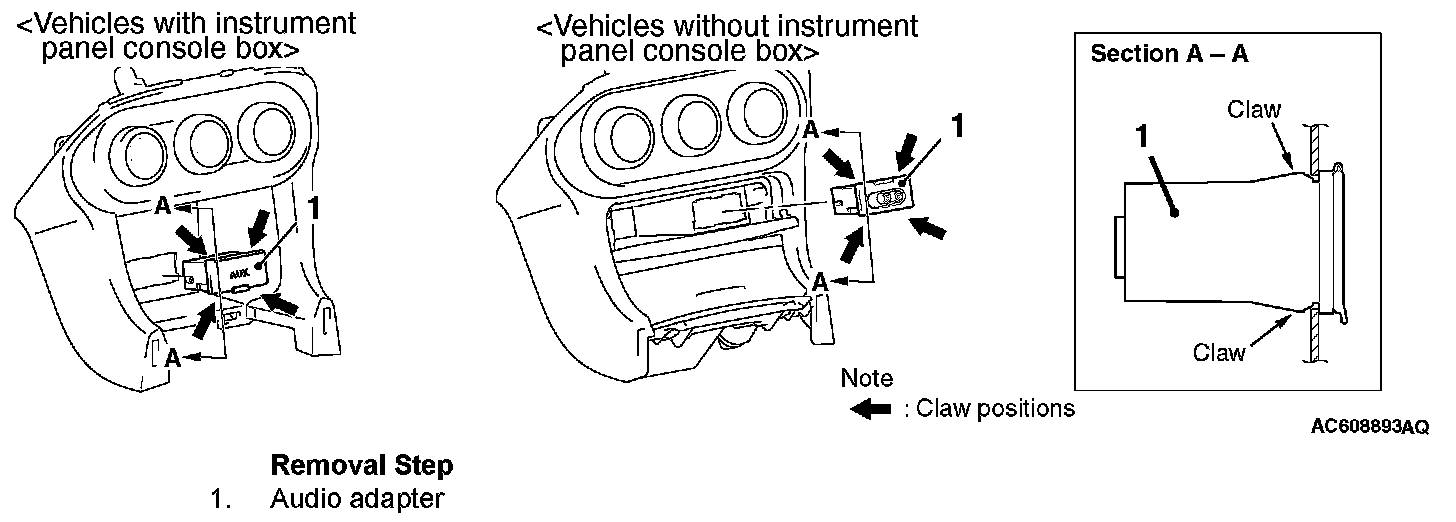

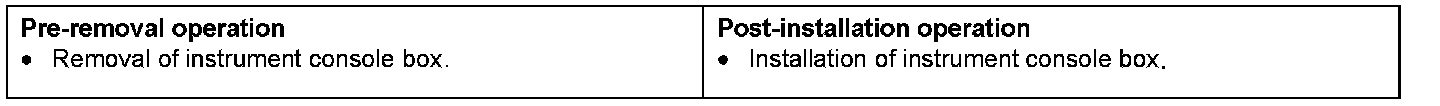

REMOVAL AND INSTALLATION

NOTE: When the radio and CD player (audio unit) are replaced, always turn the ignition switch to the ON position once and then carry out the operation check.

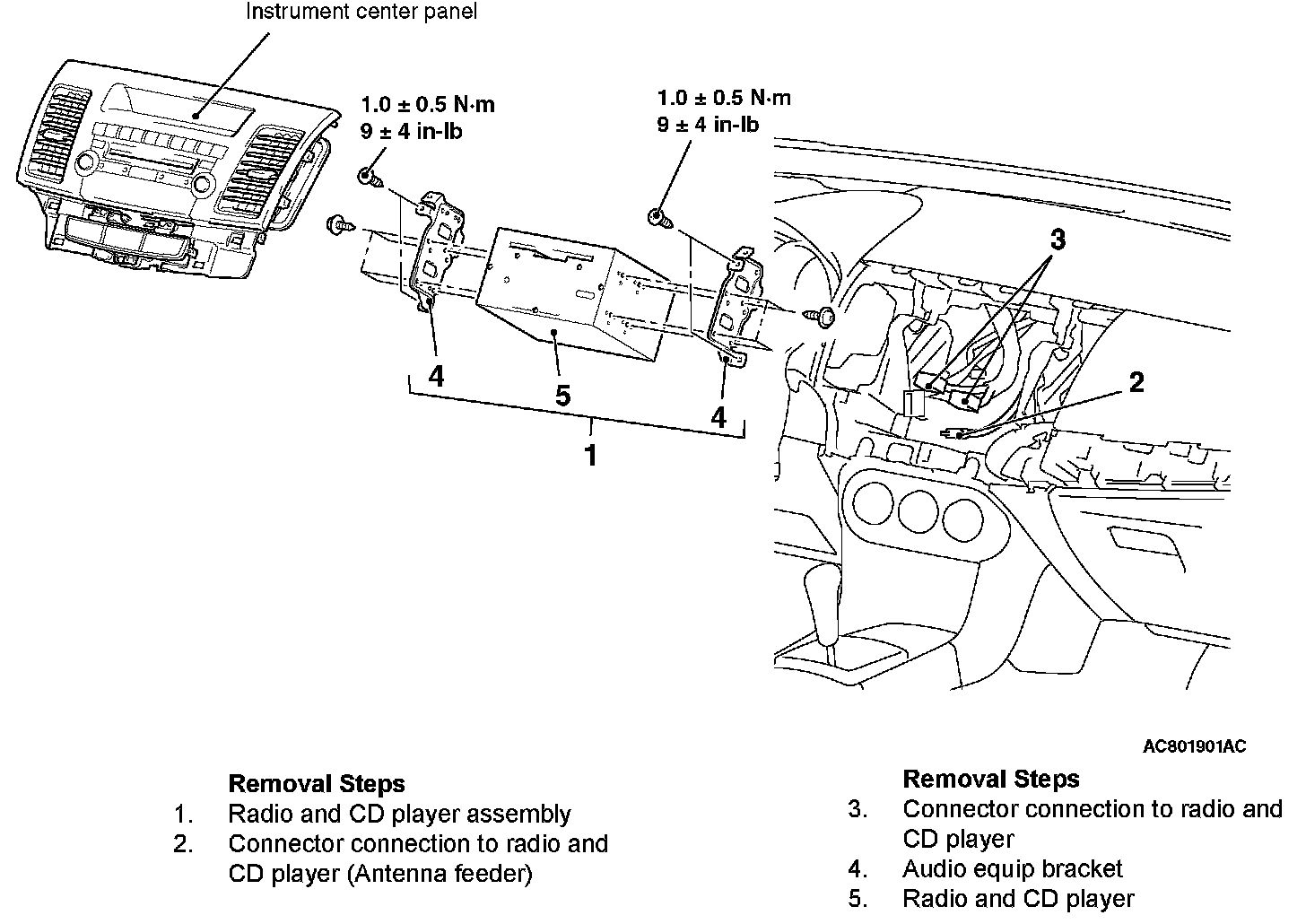

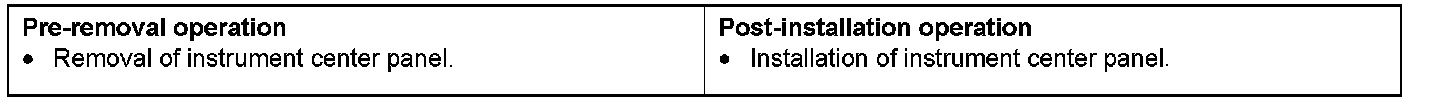

RADIO AND CD PLAYER
