Steering Wheel Voice Control Switch Check

HANDS FREE CELLULAR PHONE SYSTEM

STEERING WHEEL VOICE CONTROL SWITCH CONTINUITY CHECK [EXCEPT RALLIART]

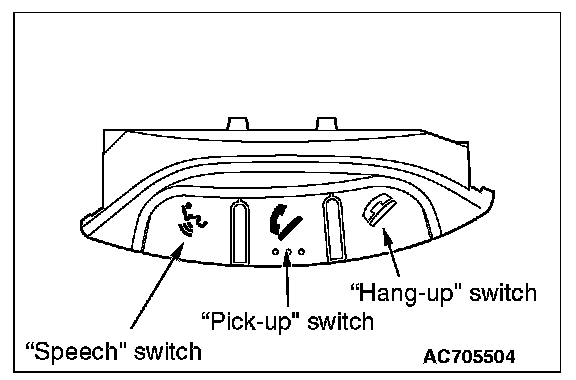

STEERING WHEEL VOICE CONTROL SWITCH CHECK

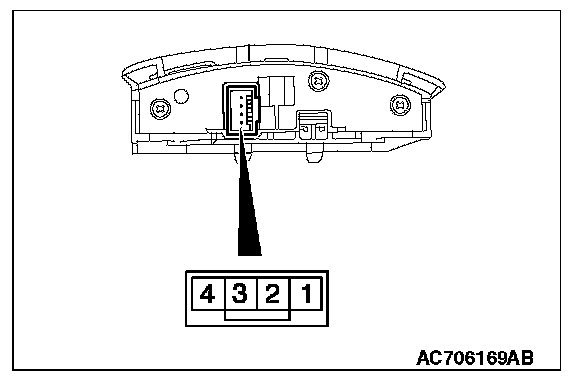

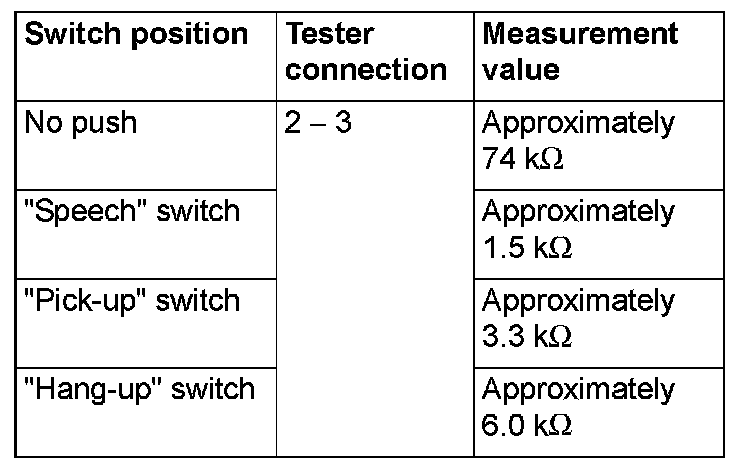

Use an ohmmeter to measure the resistance value between the terminal.







ILLUMINATION CHECK

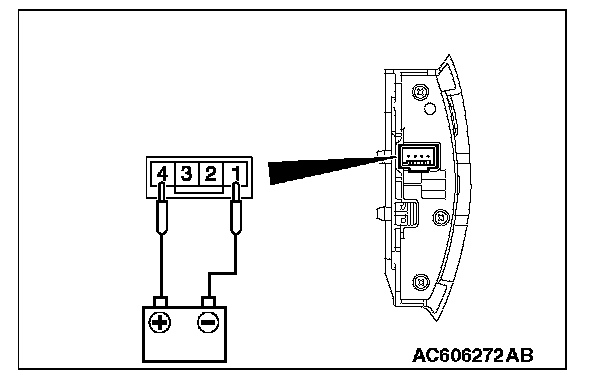

Apply the battery voltage of steering wheel voice control switch connector terminal No. 4 and 1, and check if the steering wheel audio remote control switch illuminates.

NOTE: Make sure that the polarity is correct.


[RALLIART]

STEERING WHEEL VOICE CONTROL SWITCH CHECK

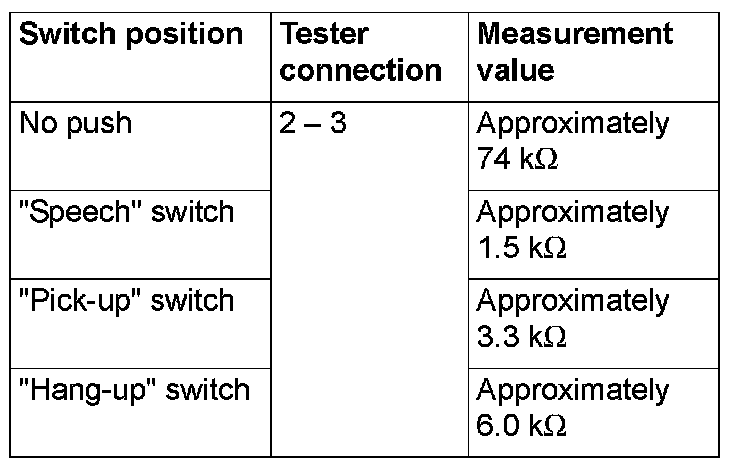

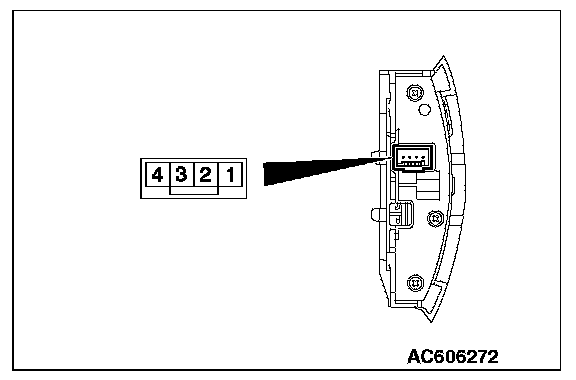

Use an ohmmeter to measure the resistance value between the terminal.







ILLUMINATION CHECK

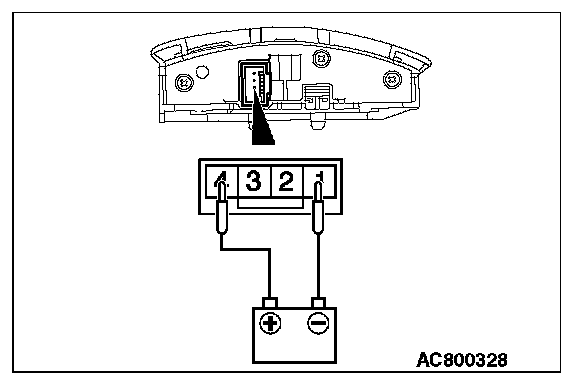

Apply the battery voltage of steering wheel voice control switch connector terminal No. 4 and 1, and check if the steering wheel voice control switch illuminates.

NOTE: Make sure that the polarity is correct.
