HANDS FREE
CELLULAR PHONE
SYSTEM
ACTUATOR TEST TABLE
The following actuators can be forcibly operated using scan tool.

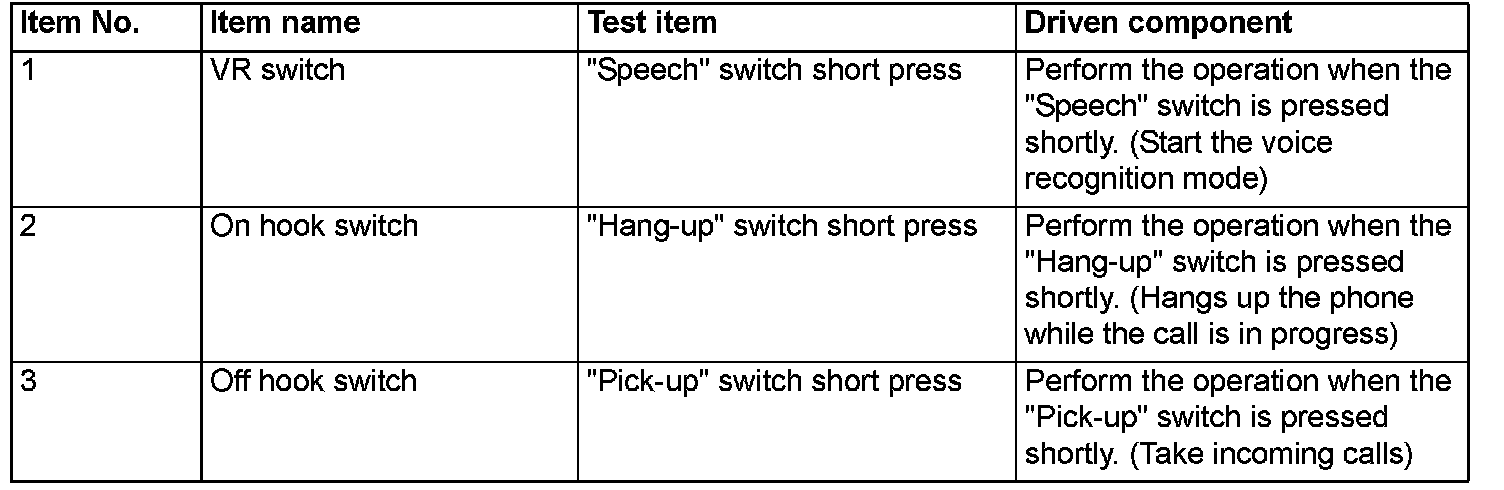

Actuator Test Table:
