Removal and Replacement

HANDS FREE CELLULAR PHONE SYSTEM

REMOVAL AND INSTALLATION

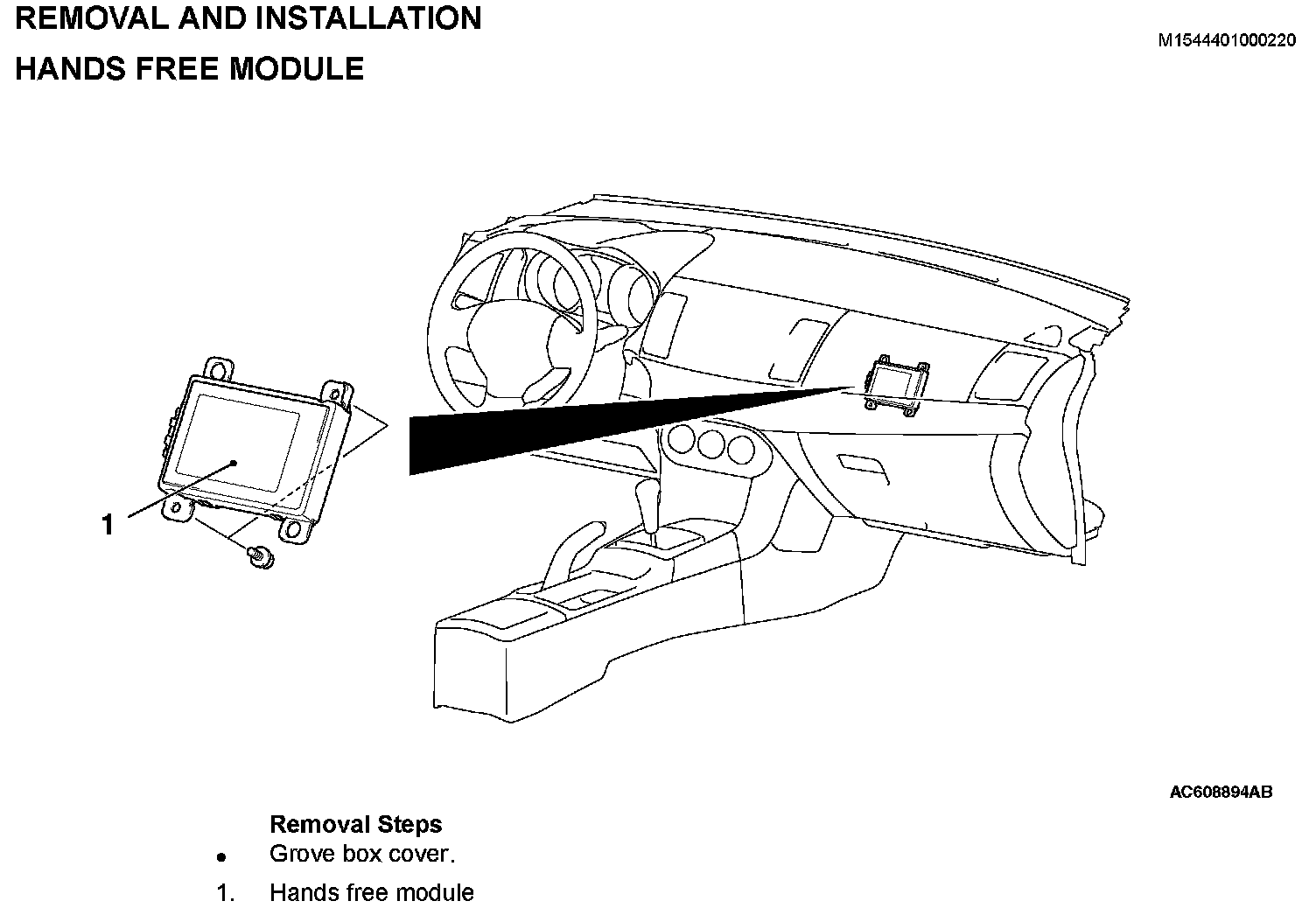

HANDS FREE MODULE


Removal Step 1:

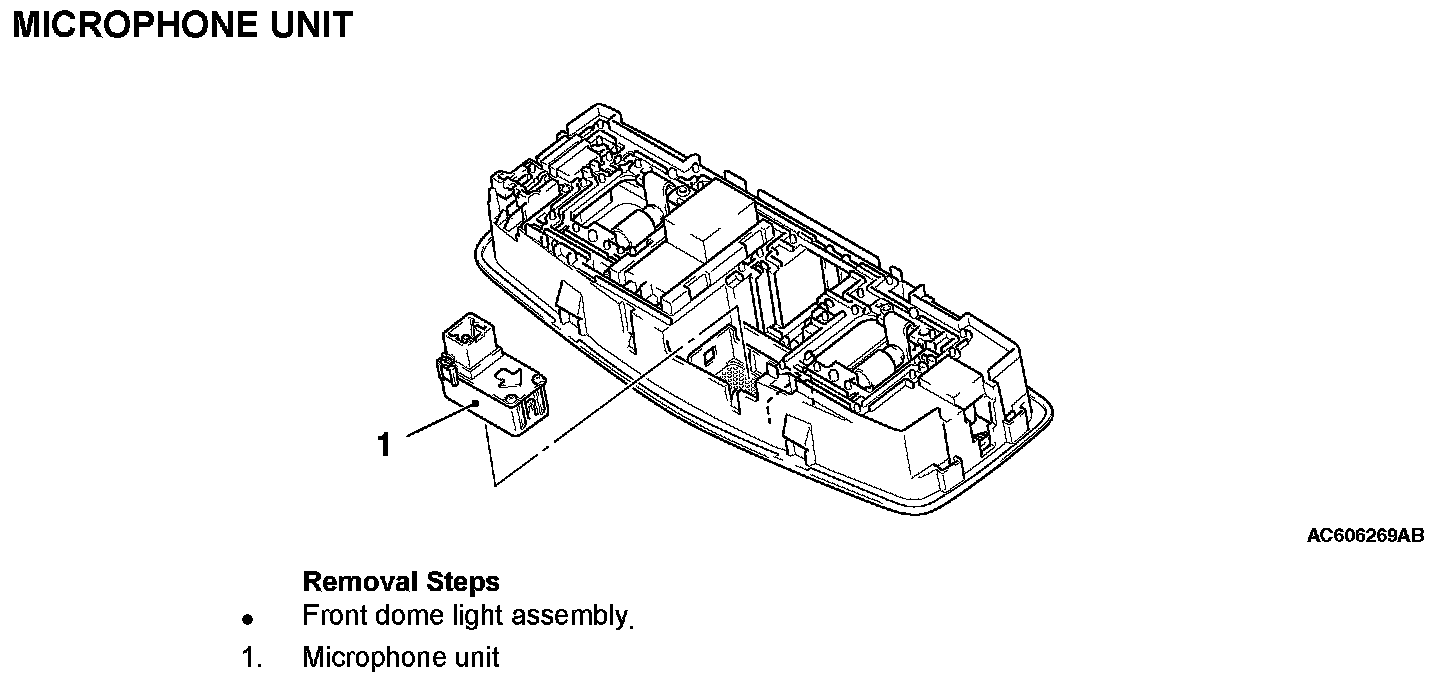

MICROPHONE UNIT


Removal Step 1:

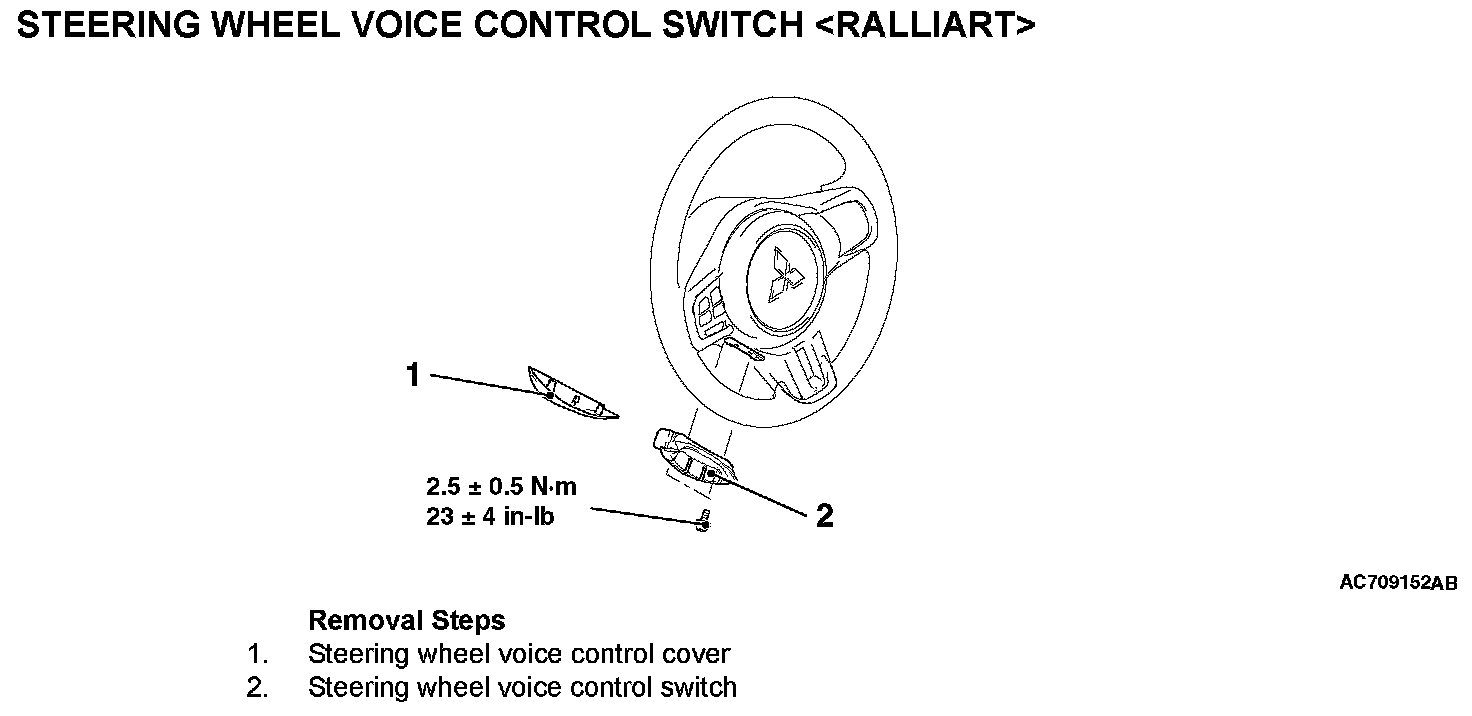

STEERING WHEEL VOICE CONTROL SWITCH [RALLIART]


Removal Steps 2:

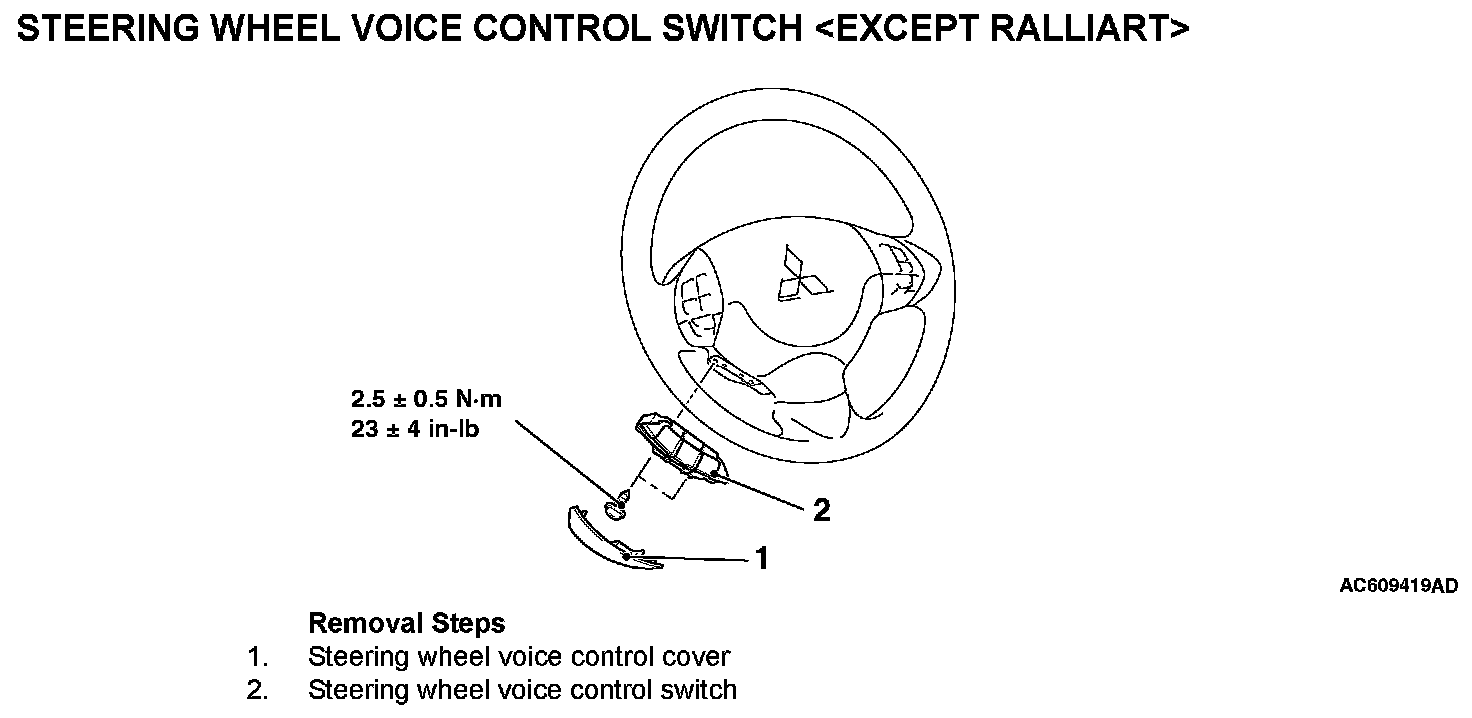

STEERING WHEEL VOICE CONTROL SWITCH [EXCEPT RALLIART]


Removal Steps 1-2:
