Antenna: Service and Repair

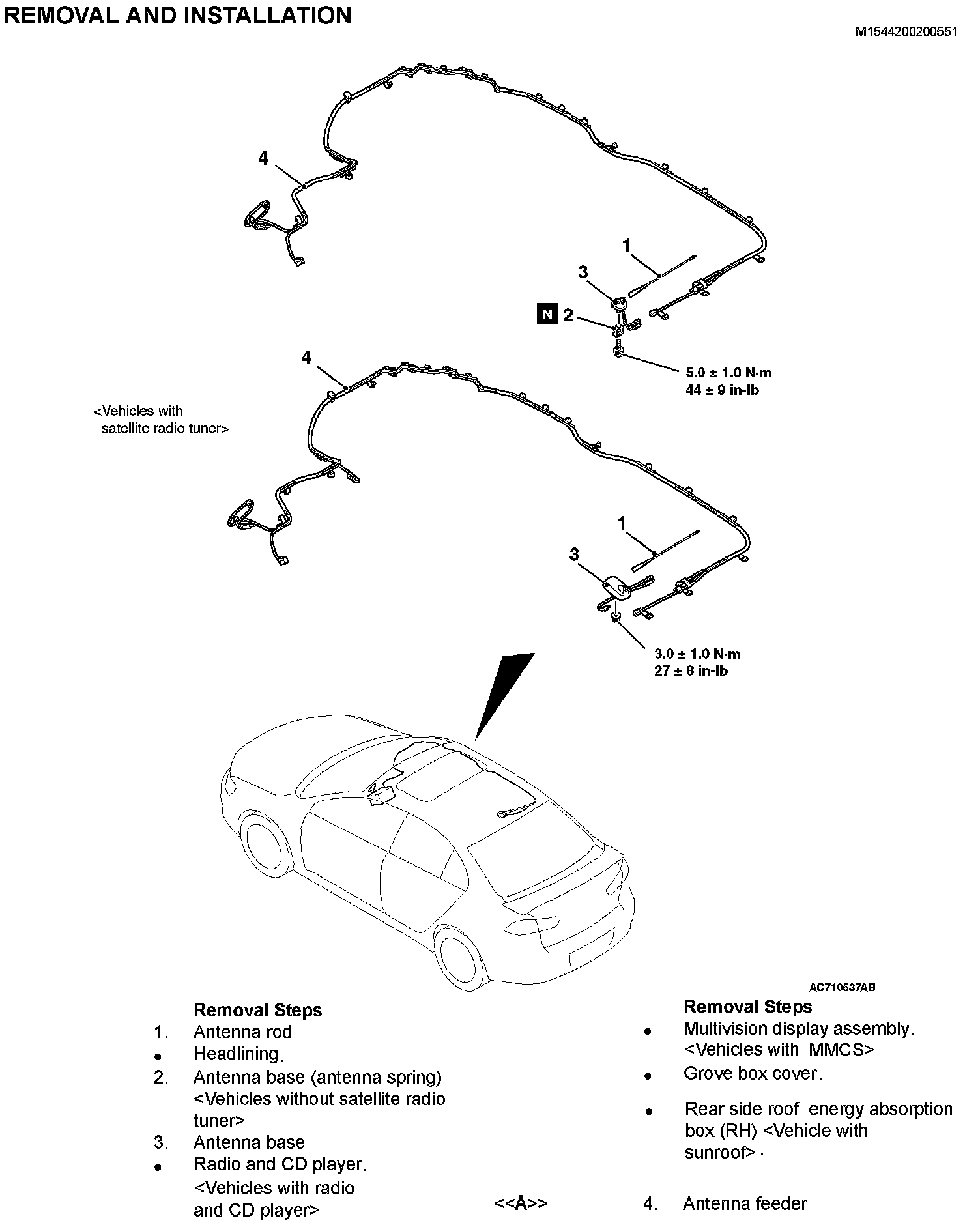

REMOVAL AND INSTALLATION

Removal Steps 1-4:

REMOVAL SERVICE POINT

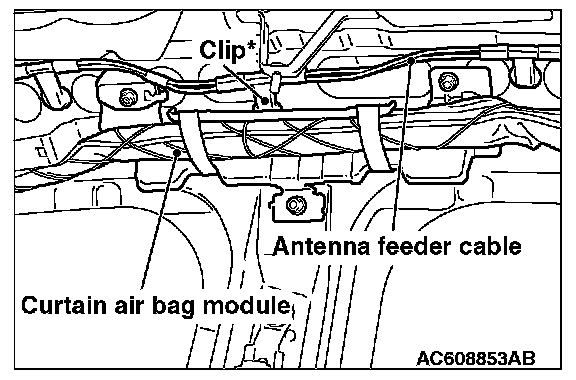

[[A]] REMOVAL OF ANTENNA FEEDER







Remove a part of the curtain airbag module, and remove the clip* of antenna feeder. [Vehicles with sun roof]
