FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2010
>>
Lancer L4-2.0L (4B11)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Electronic Time and Alarm Control System (ETACS)
Electronic Time and Alarm Control System (ETACS)
ETACS
DIAGNOSTIC TROUBLE CODE CHART

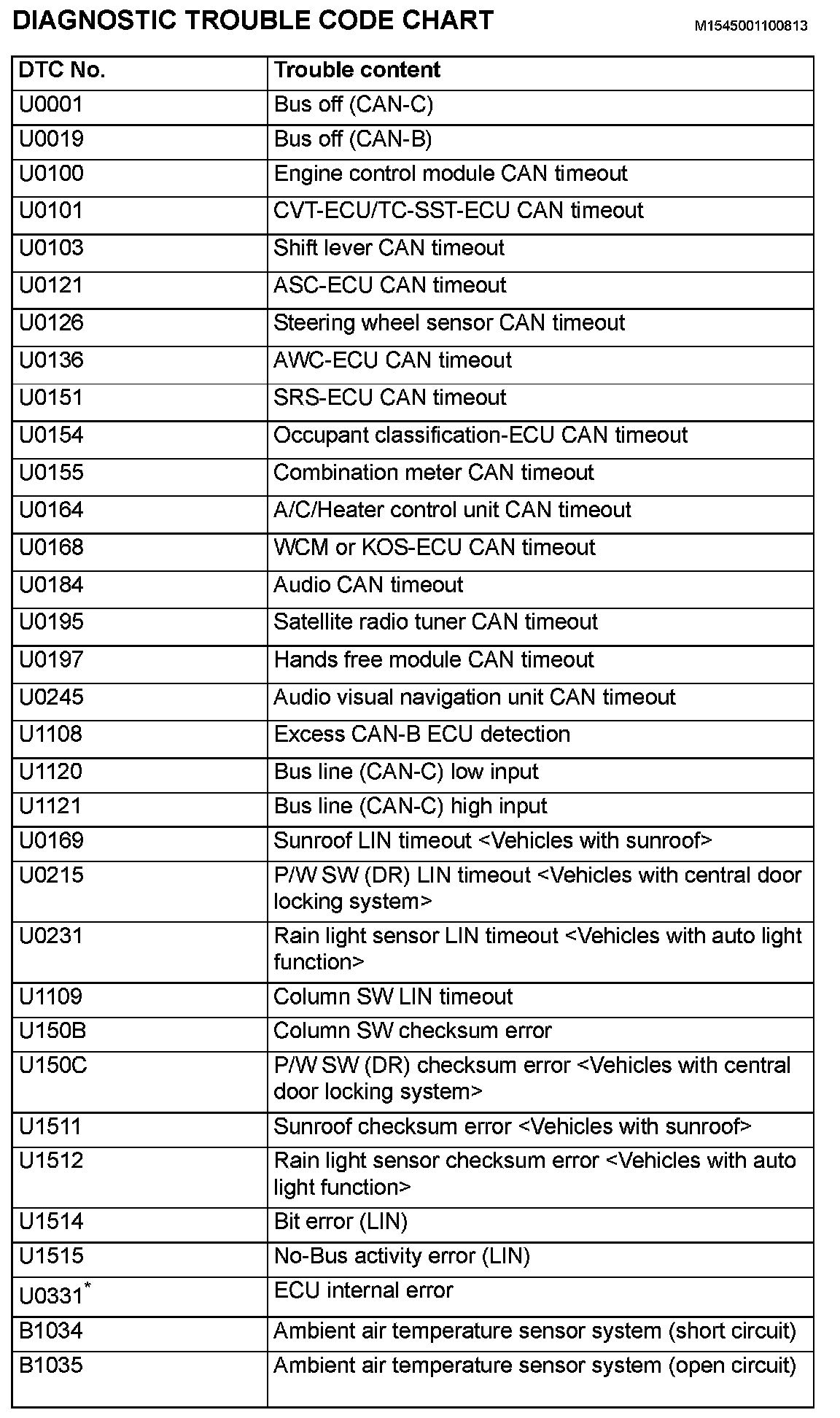

U0001-U0331 / B1034-B1035:

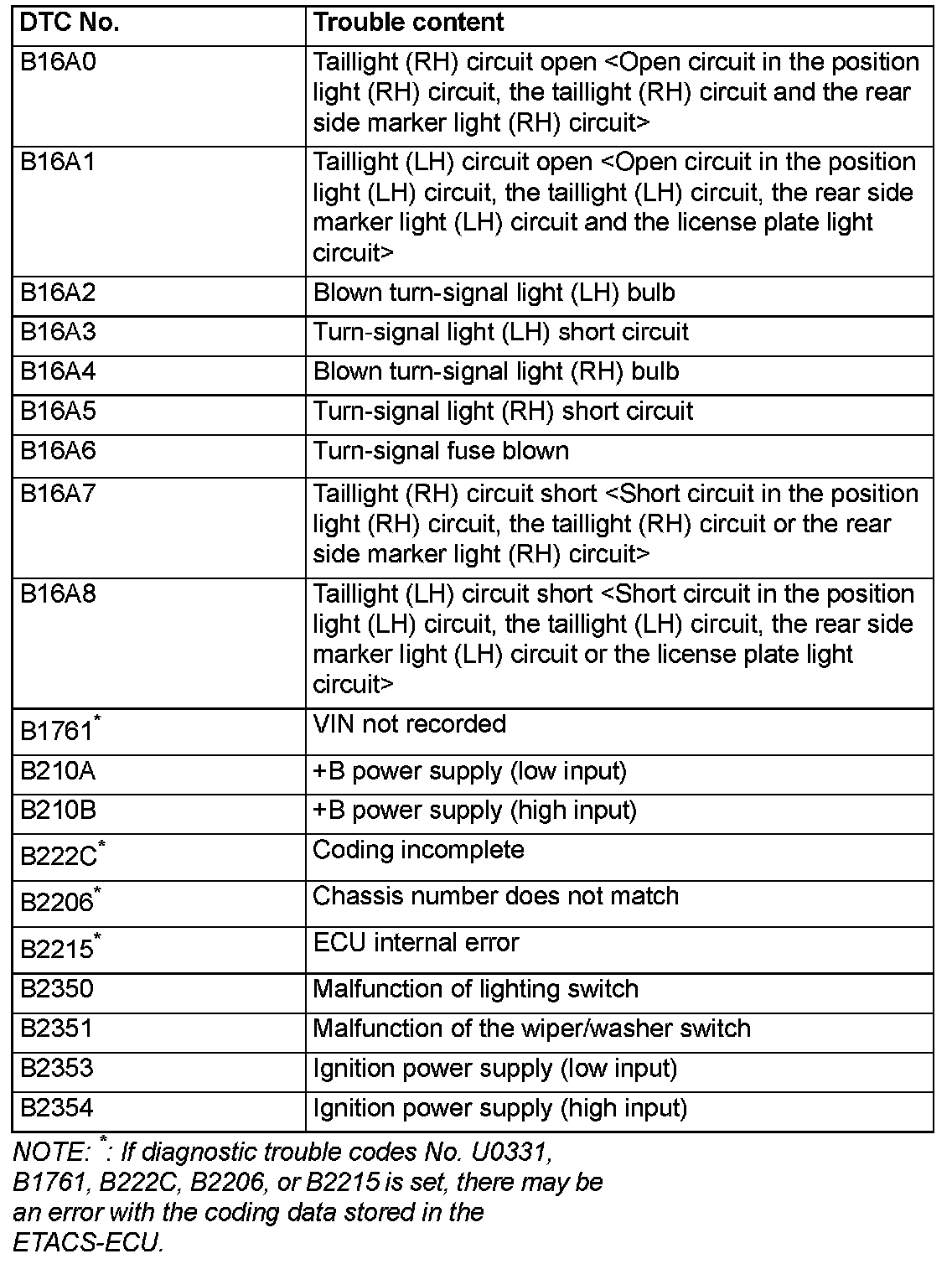

B16A0-B2354:
