Windshield Washer Switch: Testing and Inspection

WINDSHIELD WASHER SWITCH CHECK

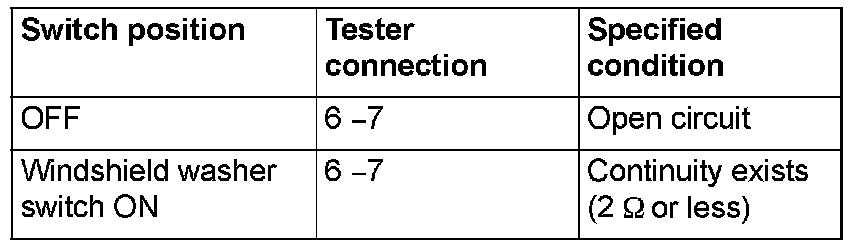

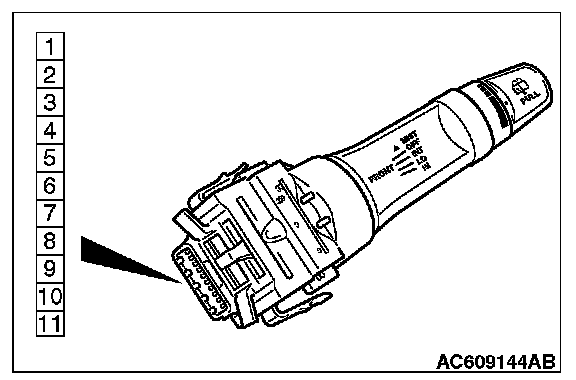

Check the continuity between the switch terminals.
