Washer System Inspection
INSPECTIONWINDSHIELD WASHER MOTOR CHECK
1. Remove the washer tank assembly with the washer hose attached. Then fill the washer tank with water.

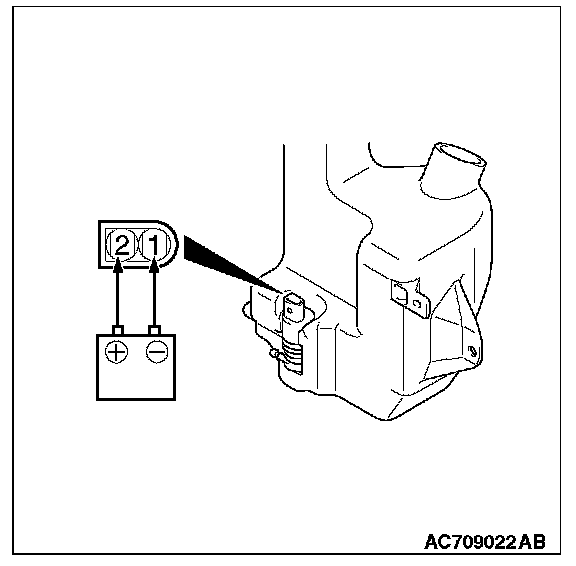

2. Check to see that the water is vigorously sprayed when connecting the positive battery terminal to terminal number 2 and terminal number 1 to ground.
WINDSHIELD WASHER SWITCH CHECK
Check the continuity between the switch terminals.
WINDSHIELD WASHER FLUID EJECTION CHECK
NOTE: Use the special tool, washer nozzle adjustment tool (MB992326) to adjust the splashing points of the washer nozzles if necessary.
Adjustment of the mist type washer nozzle injection position
CAUTION:
- Do not use tools other than the special tool (MB992326) to adjust the injection angle because the washer nozzle may get damaged.

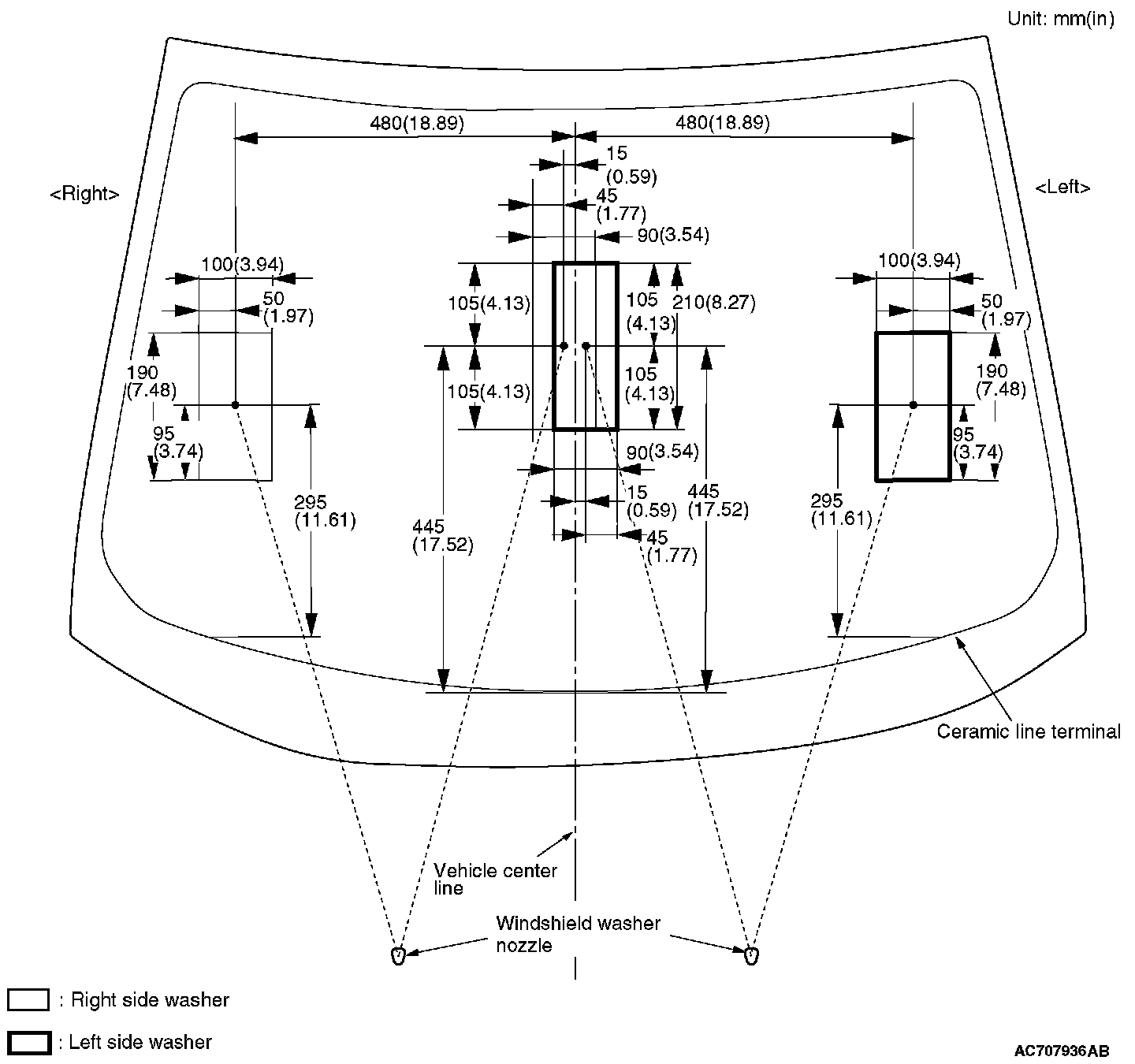

- Adjust the splashing position within the specified adjustment range, otherwise the windshield cannot be washed properly.

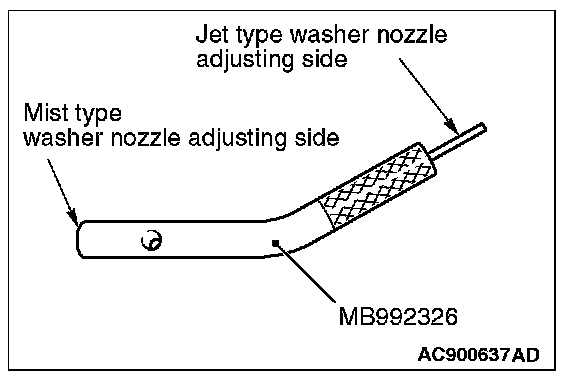

1. Use the special tool, washer nozzle adjustment tool (MB992326) to adjust the splashing points of the nozzle.

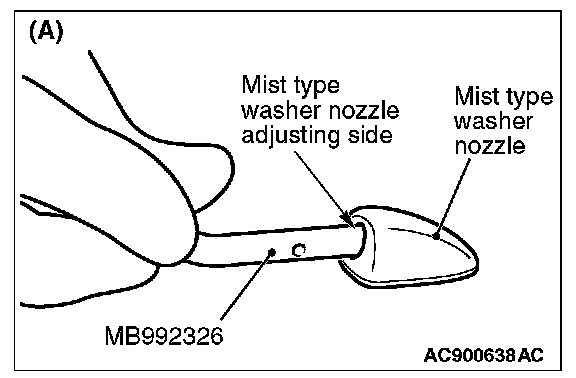

2. Insert the mist type washer nozzle adjusting side of the special tool (MB992326) into the injection part of the mist type washer nozzle as shown in the figure (A).

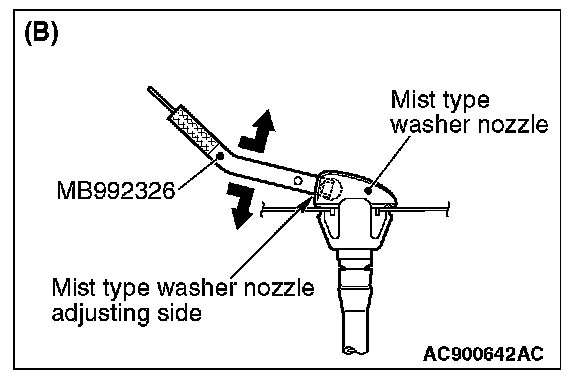

3. Move the special tool (MB992326) up and down to adjust the angle of the washer nozzle as shown in the figure (B).
NOTE: If the washer nozzle cannot be moved smoothly, adjust the angle while pressing the special tool (MB992326) against the washer nozzle.
