Windshield Washer

WINDSHIELD WASHER

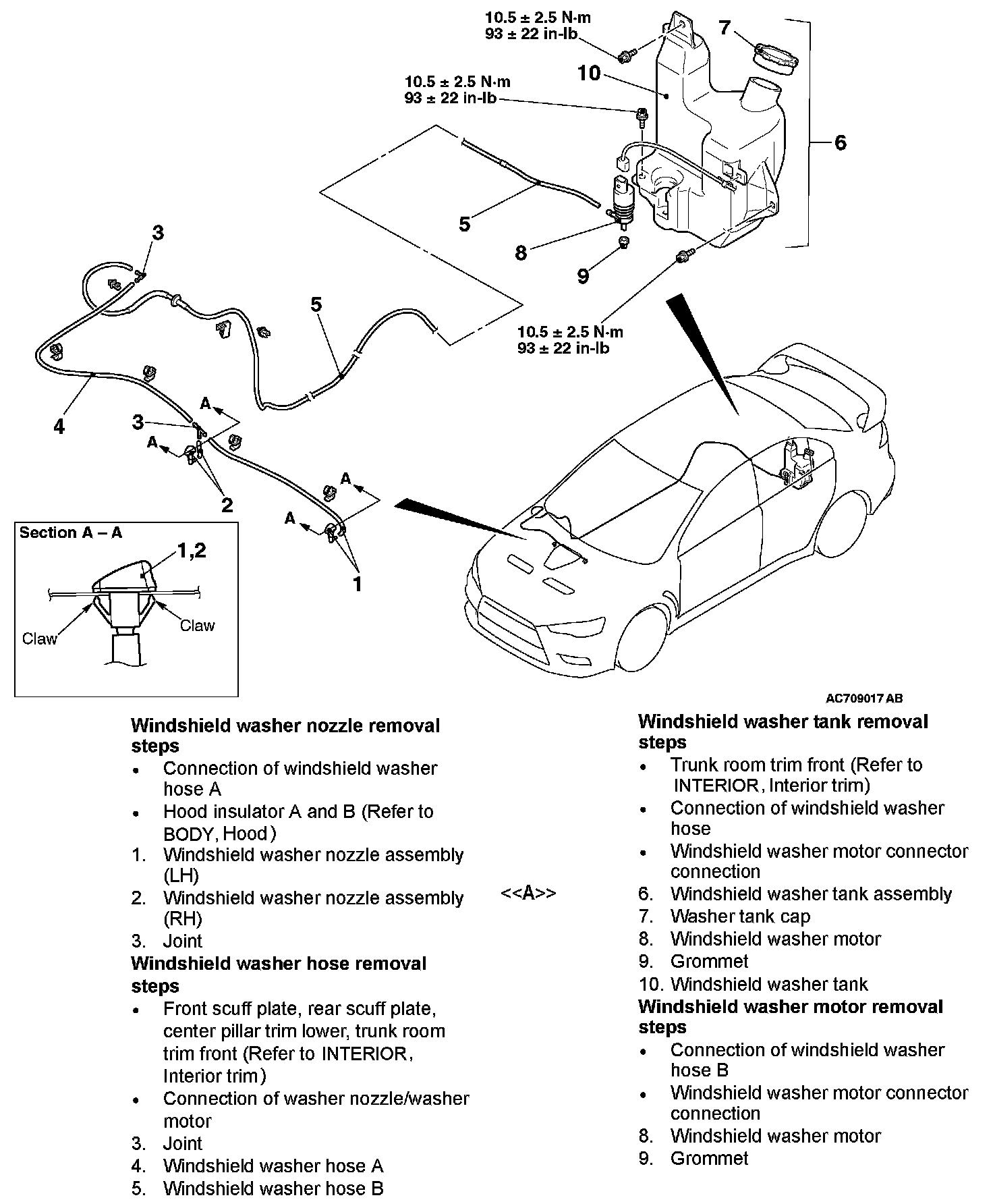

REMOVAL AND INSTALLATION

Removal Steps 1-9:

NOTE: For removal and installation of the wiper and washer switch, refer to chassis electrical, Column switch.

REMOVAL SERVICE POINT

[[A]] WINDSHIELD WASHER TANK ASSEMBLY REMOVAL

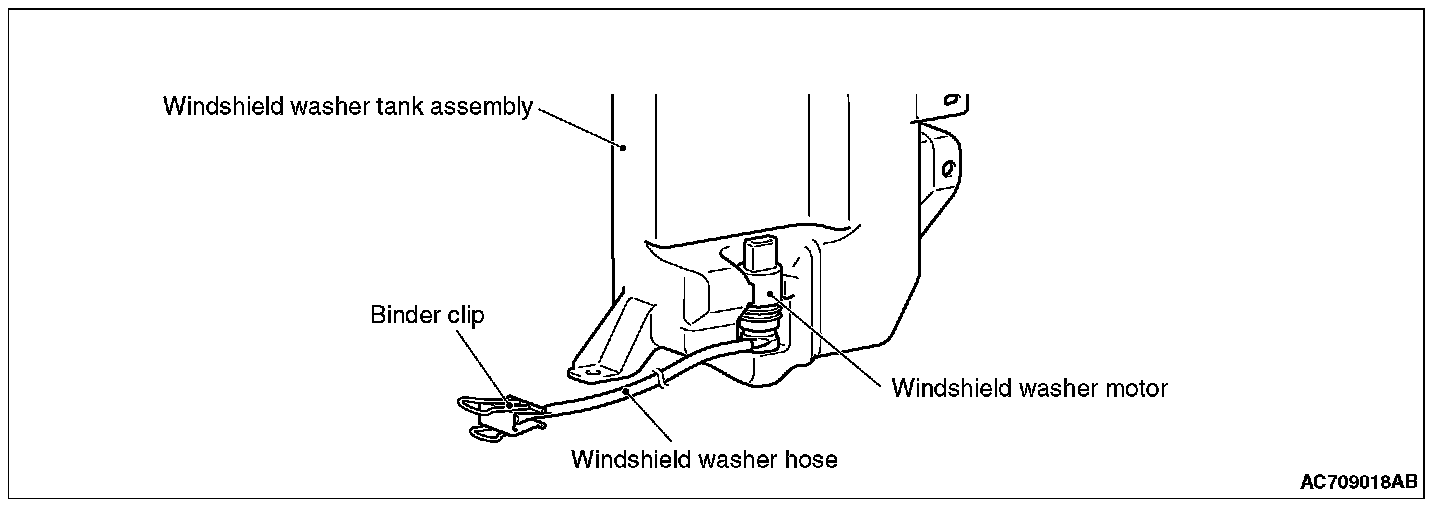

When removing the windshield washer tank assembly, close the windshield washer hose by a binder clip as shown, to prevent the windshield washer from flowing out.
