Home >> Mitsubishi >> 2010 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Wiper and Washer Systems >> Sensors and Switches - Wiper and Washer Systems >> Wiper Switch >> Testing and Inspection

Wiper Switch: Testing and Inspection

WINDSHIELD WIPER SWITCH CHECK

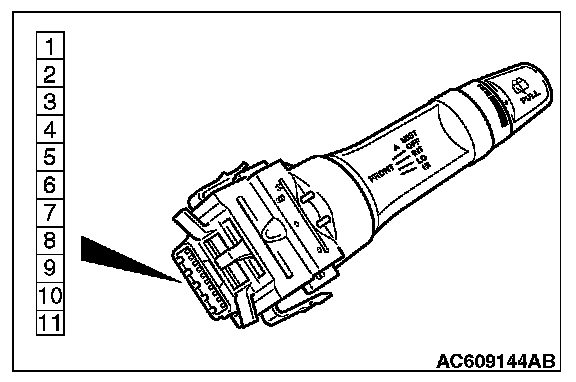

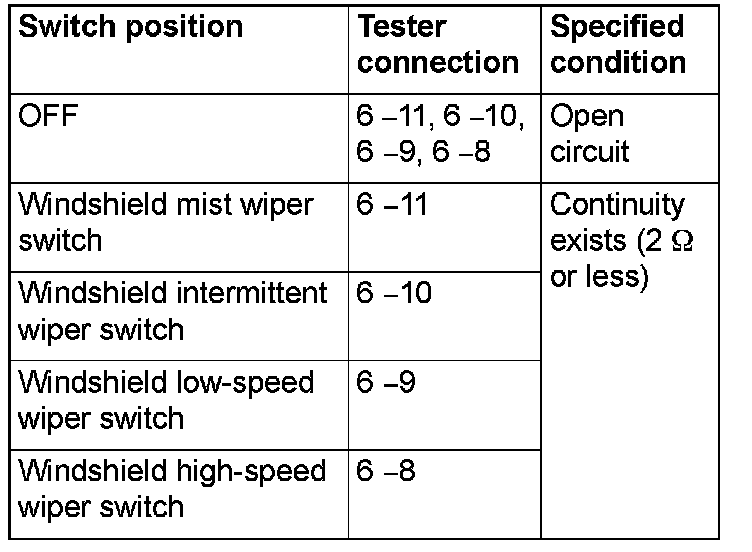

Check the continuity between the switch terminals.
