WINDOW GLASS DIAGNOSTIC TROUBLE SYMPTOM CHART

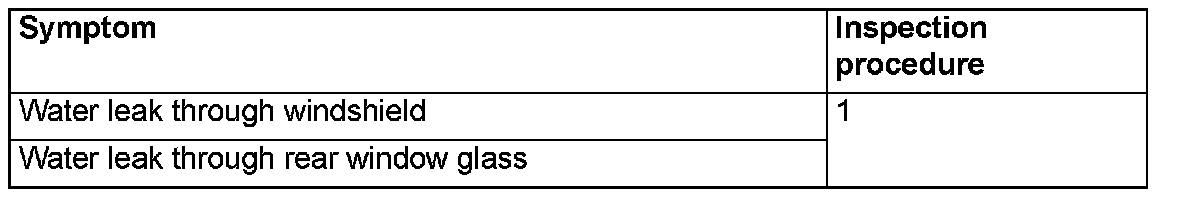

Window Glass Diagnostic Trouble Symptom Chart:






SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Water Leak Through Windshield/Rear Window Glass

DIAGNOSIS

STEP 1. Check if the seal is faulty.

Q: Is the seal faulty?

YES: Repair the seal, then go to Step 3.

NO: Go to Step 2.

STEP 2. Check if the body flange is deformed.

Q: Is the body flange deformed?

YES: Replay the body flange, then go to Step 3.

NO: Go to Step 3.

STEP 3. Retest the system.

Q: Is any water leaking?

YES: Return to Step 1.

NO: This diagnosis complete.
