Inspection Procedure 2

INSPECTION PROCEDURE 2: Driver's Power Window does not work by means of the Power Window Main Switch.

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

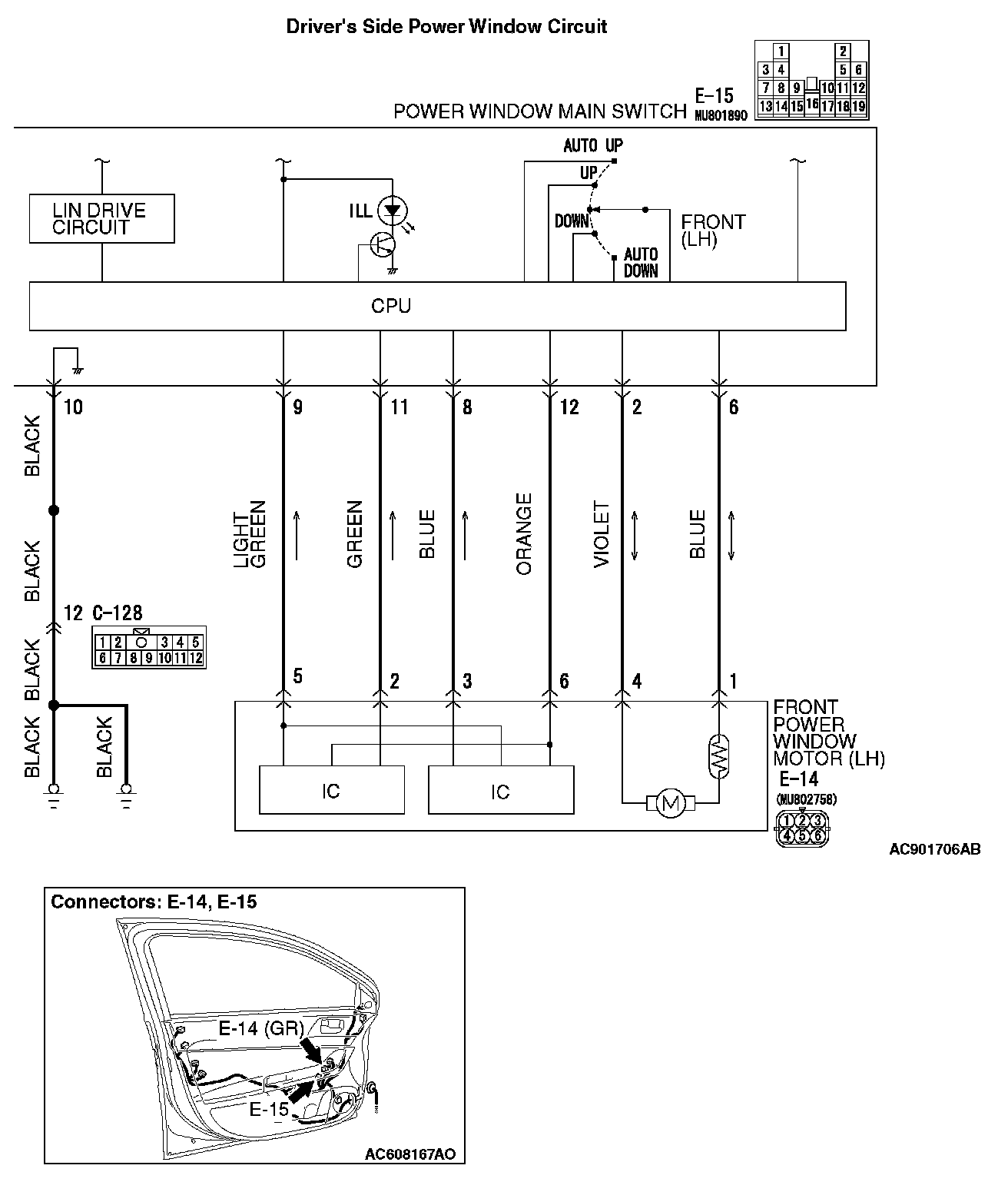

Driver's Side Power Window Circuit:

CIRCUIT OPERATION
The front power window motor (LH) receives a signal ("UP", "DOWN", "AUTO UP" or "AUTO DOWN") from the front power window main switch and controls the driver's power window.

TECHNICAL DESCRIPTION (COMMENT)
The power window main switch or the front power window motor (LH) may be defective.

TROUBLESHOOTING HINTS
- The power window main switch may be defective
- The front power window motor (LH) may be defective
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector

DIAGNOSTIC PROCEDURE

Required Special Tools:
- MB992006: Extra fine probe
- MB991223: Harness set
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicles Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic trouble code.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

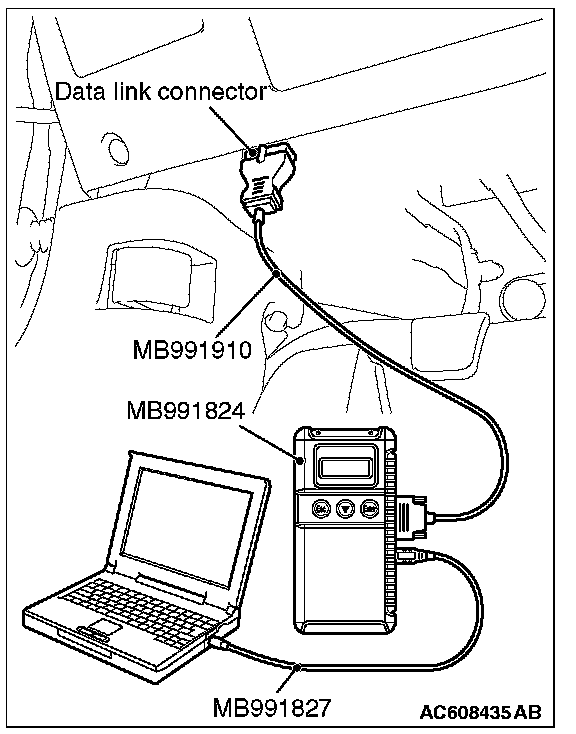

1. Connect scan tool MB991958. Refer to "How to connect scan tool (M.U.T.-III)"
2. Turn the ignition switch to the "ON" position.
3. Check whether the power window main switch related DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES: Diagnose the power window main switch. Refer to Diagnostic trouble code chart. Symptom Chart

NO: Go to Step 2.

STEP 2. Check the power window main switch.
Check that the passenger's or rear power window works by means of the power window main switch.

Q: Is the check result normal?

YES: Go to Step 3.

NO: Refer to inspection procedure 1 "Power windows do not work at all". Inspection Procedure 1

STEP 3. Check power window main switch connector E-15, front power window motor (LH) connector E-14 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are power window main switch connector E-15, front power window motor (LH) connector E-14 in good condition?

YES: Go to Step 4.

NO: Repair or replace the damaged component(s). Refer to general (electrical), Harness Connector Inspection. Verify that the power window works normally.

STEP 4. Check the wiring harness between power window main switch connector E-15 (terminals Nos. 2, 6) and front power window motor (LH) connector E-14 (terminals Nos. 4, 1).

Q: Is the wiring harness between power window main switch connector E-15 (terminals Nos. 2, 6) and front power window motor (LH) connector E-14 (terminals Nos. 4, 1) in good condition?

YES: Go to Step 5.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Check that the power works normally.

STEP 5. Retest the system.
Check that the driver's power window works by means of the power window main switch.

Q: Is the check result normal?

YES: No action is necessary and testing is complete.

NO: Replace the front power window motor (LH). Check that the power works normally.
