TC-SST Teach-In

TC-SST TEACH-IN

CAUTION
^ Check the Diag. Version before Teach-in. If the Diag. Version is 0000, reprogram the ECU. (The software with Diag. Version 0000 does not have Teach-in function.)
^ When the mechatronic assembly is replaced, reprogram the ECU and carry out the following Teach-in.
^ When the clutch assembly is replaced, the following Teach-in must be carried out.

TEACH-IN ITEM

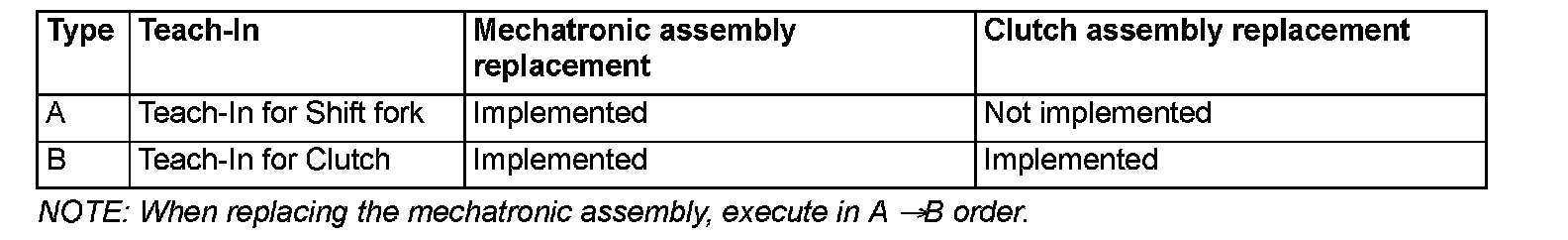

1. Teach-in operation type
There are two types of Teach-In operation and the type to be implemented varies depending on the replacement part.





2. Scan tool item execution
To complete each Teach-In operation, multiple items must be executed using scan tool MB991958, and those items shall be executed in a designated order.

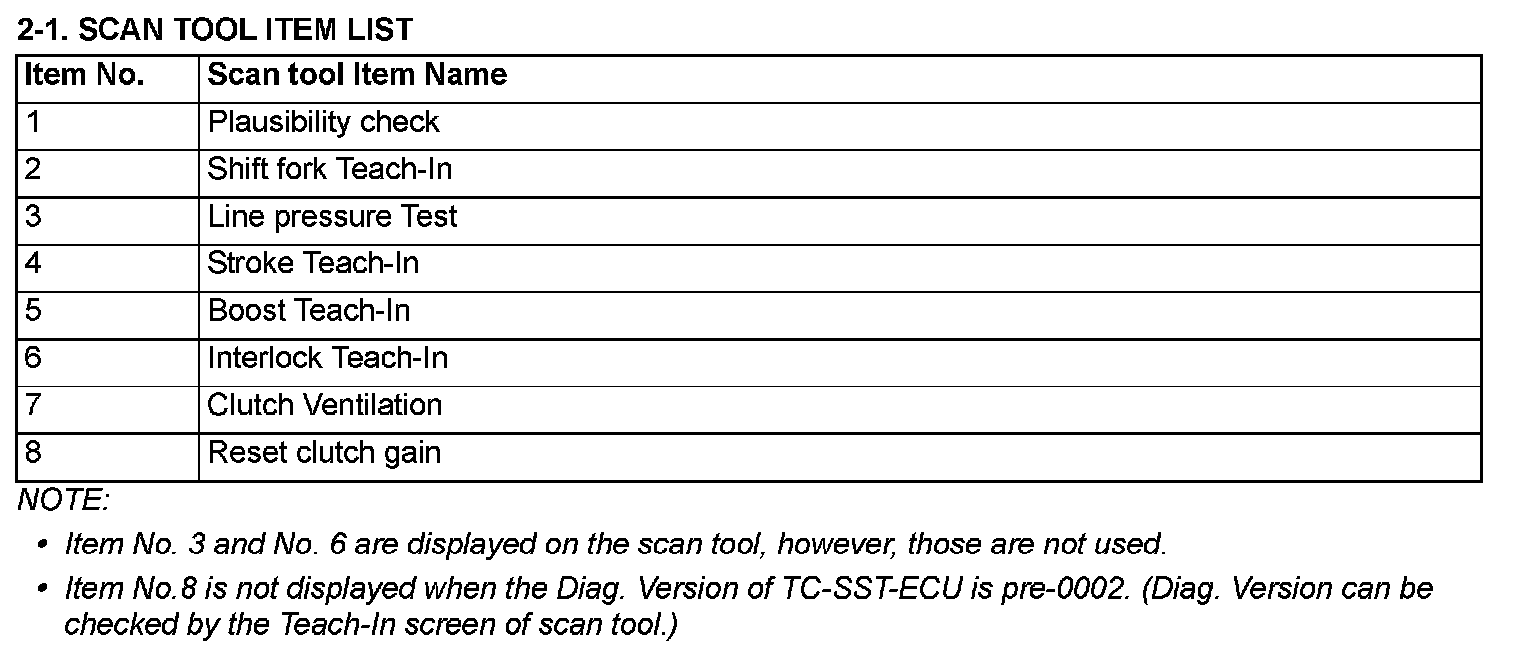

2-1. SCAN TOOL ITEM LIST

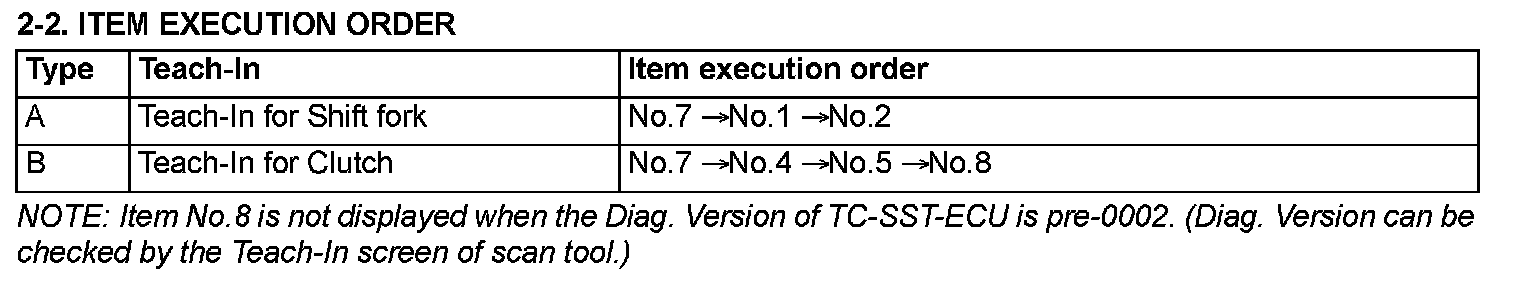

2-2. ITEM EXECUTION ORDER

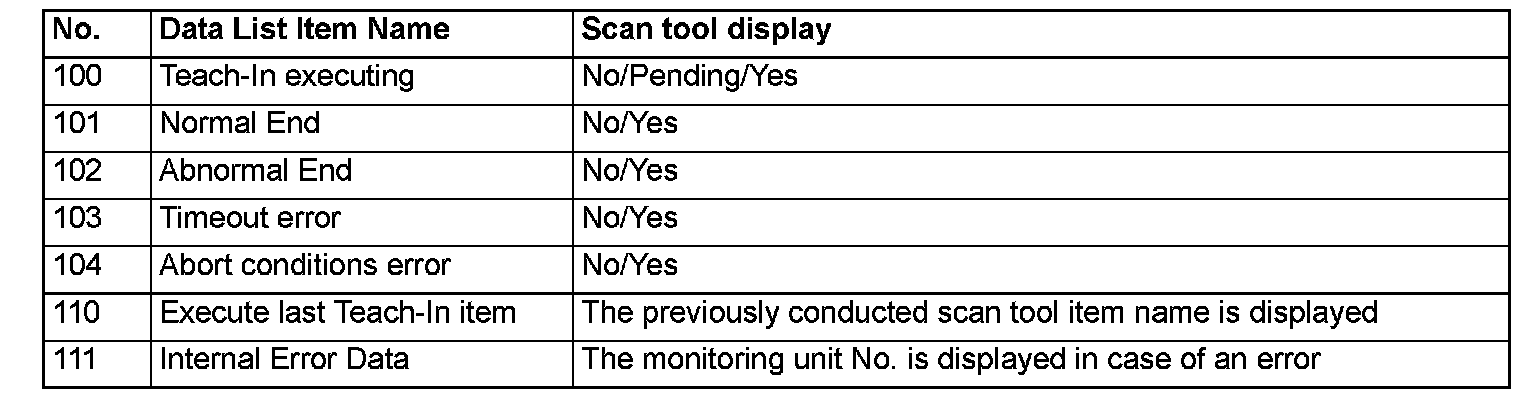

3. Confirmation of Teach-in operation status
Using the data list simultaneously displayed with Teach-In, the execution status and results can be confirmed.





TEACH-IN PROCEDURE

NOTE:
^ According to the transmission fluid state (fluid-filled state), Teach-In executed time is not equal.
^ Item No. 8 is not displayed when the Diag. Version of TC-SST-ECU is pre-0002. (Diag. Version can be checked by the Teach-In screen of scan tool.)

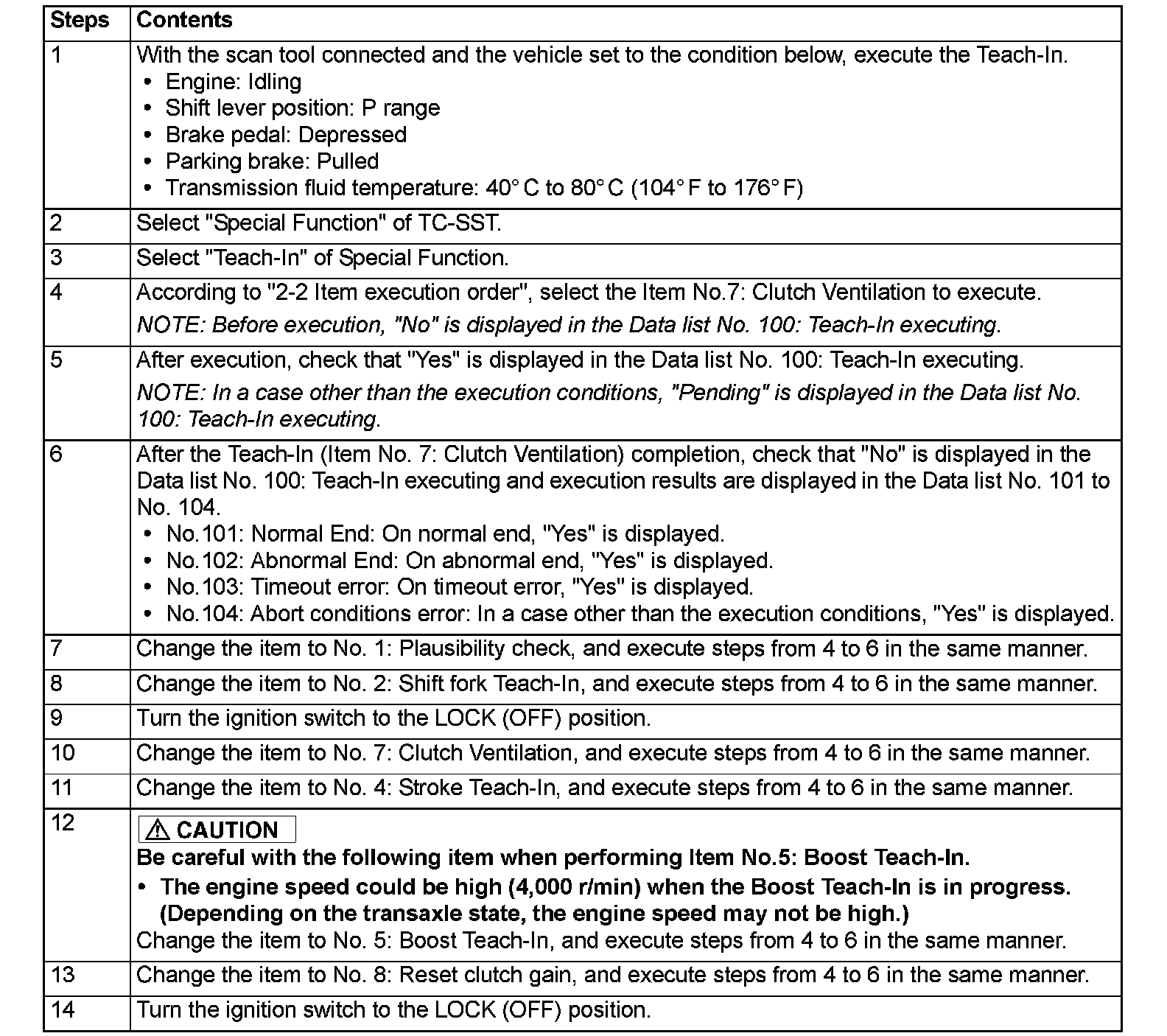

[MECHATRONIC ASSEMBLY REPLACEMENT]

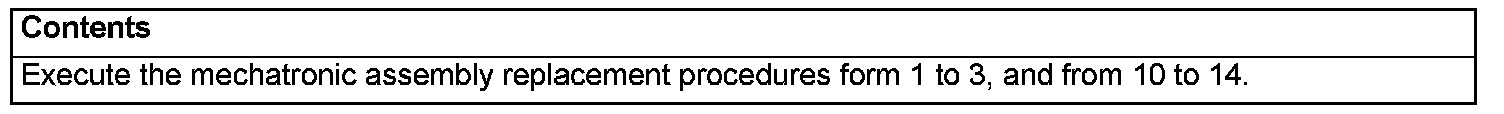

[CLUTCH ASSEMBLY REPLACEMENT]
