Shift Lever

DIAGNOSIS FUNCTION

WARNING INDICATOR

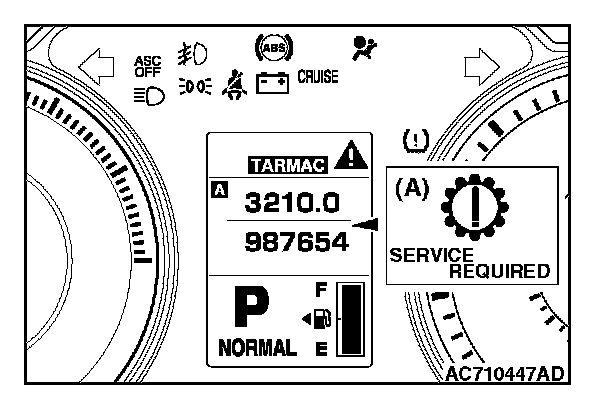

When a malfunction occurs to the shift lever, the figure (A) remains displayed on the information screen of multi information display.
If the figure (A) remains displayed on the information screen of multi information display, check whether or not a diagnostic trouble code is set.
