Control Module: Service and Repair
AWC-ECU
REMOVAL AND INSTALLATION

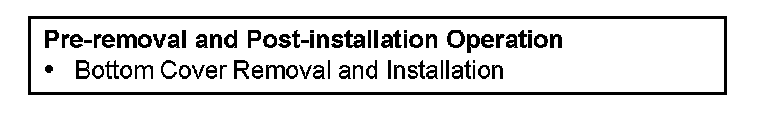

Pre-removal and Post-installation Operation:

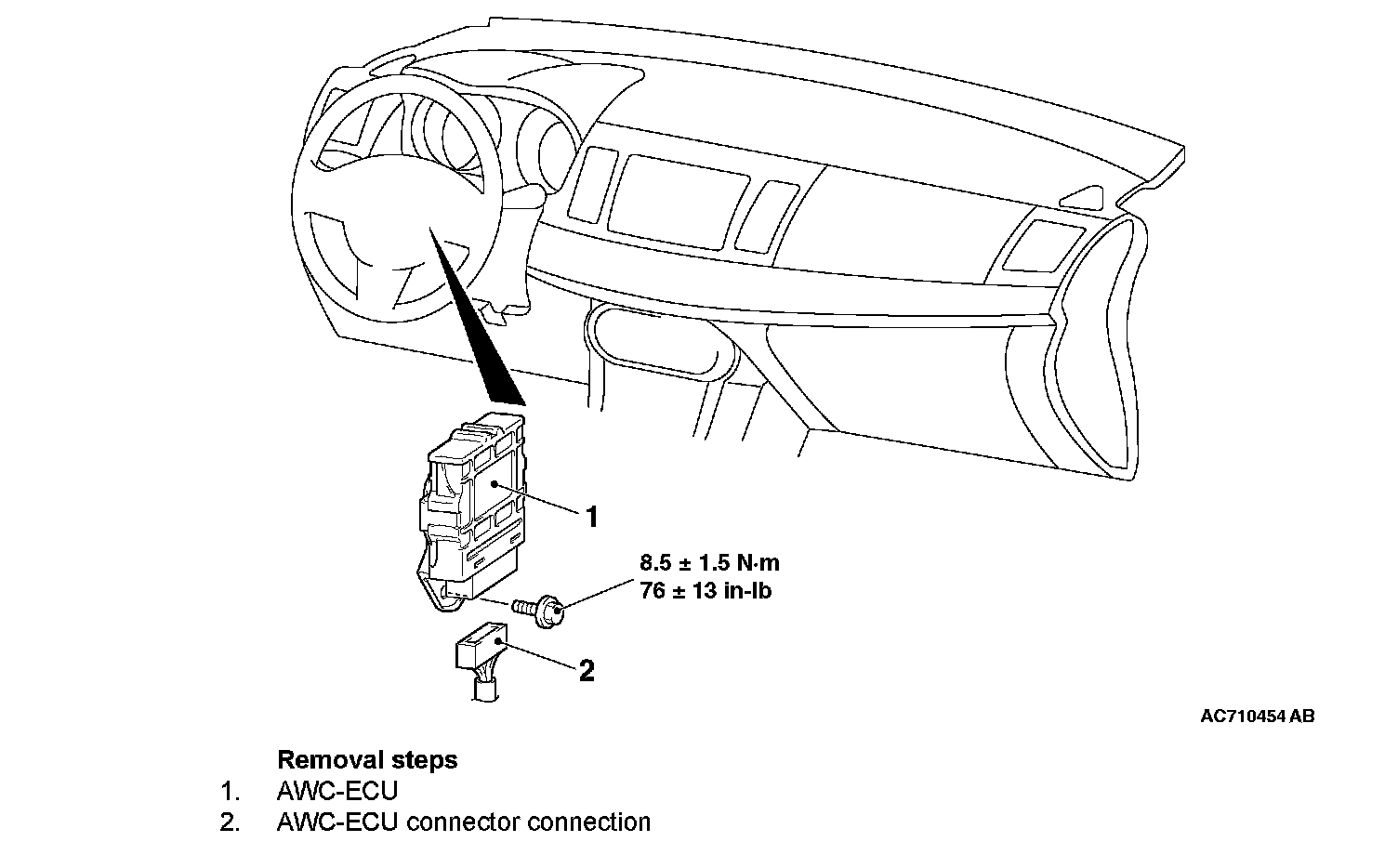

Removal Steps 1-2:
