Manual Transaxle

TRANSFER ASSEMBLY

REMOVAL AND INSTALLATION

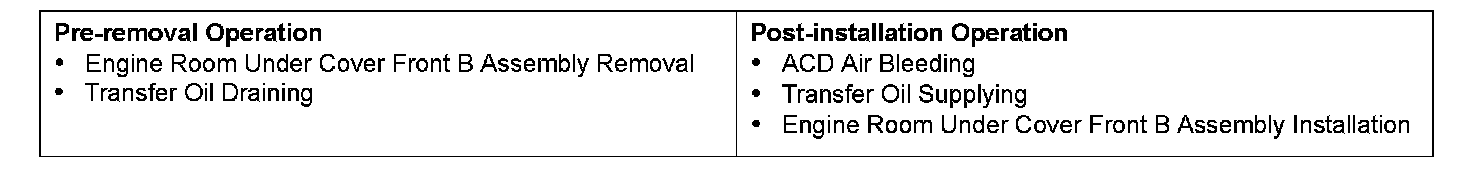

Pre-removal & Post-installation Operation:

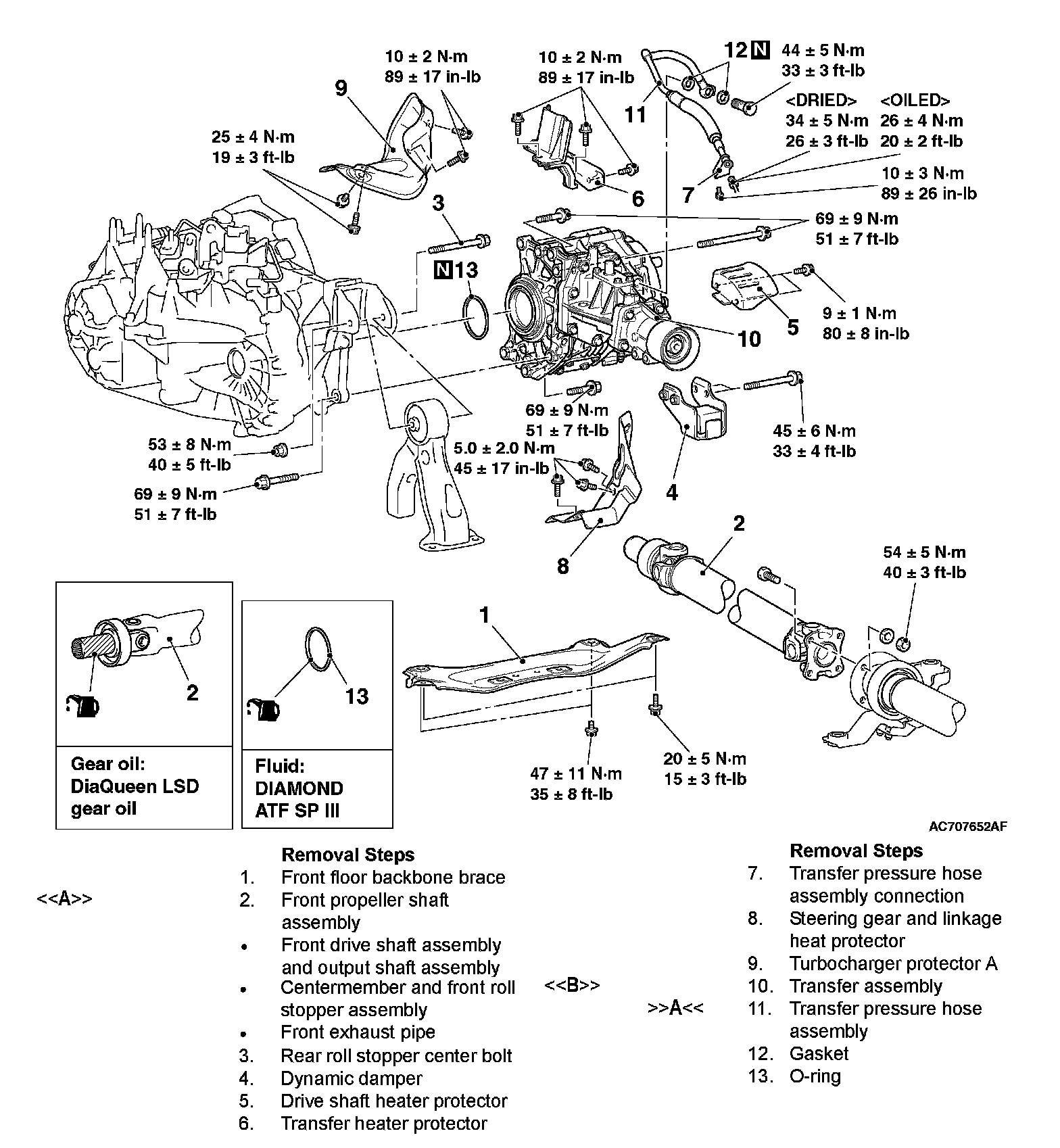

Removal Steps 1-13:

REMOVAL SERVICE POINT

[A] FRONT PROPELLER SHAFT ASSEMBLY REMOVAL

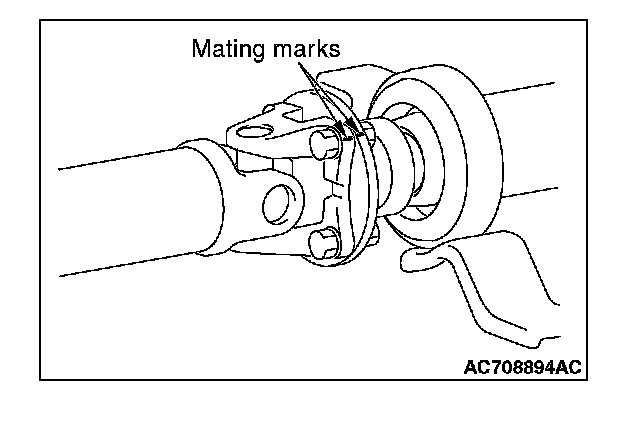

Make mating marks on the front propeller shaft assembly and companion flange, then remove the connecting nut.

[B] TRANSFER ASSEMBLY REMOVAL
Move the engine and transaxle assembly toward the front of the vehicle to create a gap between the engine/transaxle assembly and the crossmember. Pull out the transfer assembly through this gap.

INSTALLATION SERVICE POINT

[A] TRANSFER PRESSURE HOSE ASSEMBLY INSTALLATION

CAUTION
When installing the transfer pressure hose assembly, use caution that the assembly does not interfere with surrounding components.
