Transfer Oil Replacement
TRANSFER OIL CHANGE1. Remove the engine room under cover front B assembly.

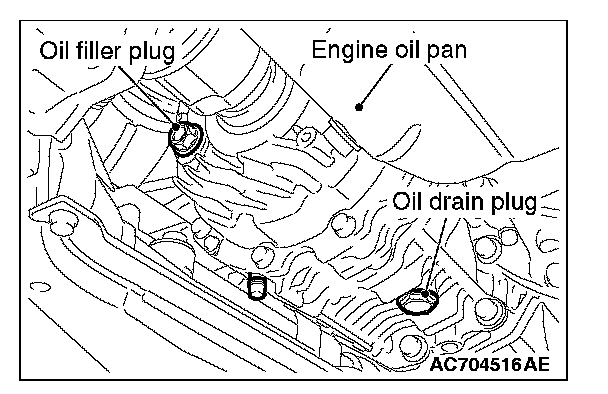

2. Remove the drain plug and gasket to drain the oil.
3. Install the drain plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)

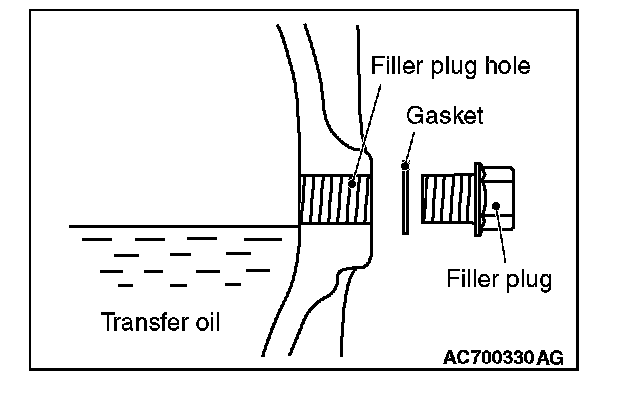

4. Remove the filler plug and gasket, then fill the oil up to the lower edge of the filler plug hole.
Brand name: DiaQueen LSD gear oil
Quantity: 0.8 dm3 (0.85 quarts)
5. Install the filler plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)
6. Install the engine room undercover front B assembly.
