Four Wheel Drive Selector Switch: Testing and Inspection

AWC SWITCH CHECK

[VEHICLES WITH STEERING WHEEL VOICE CONTROL SWITCH]

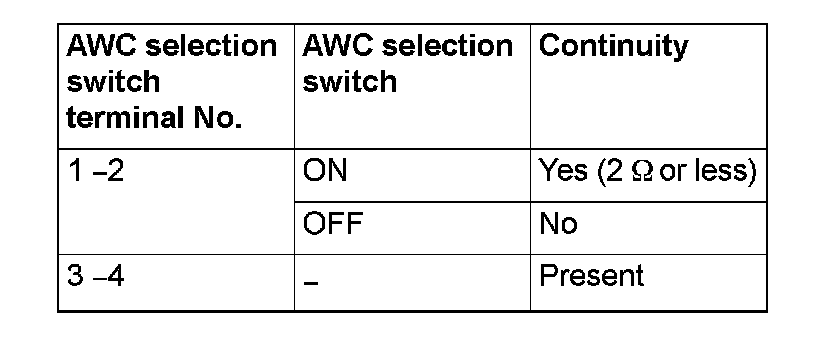

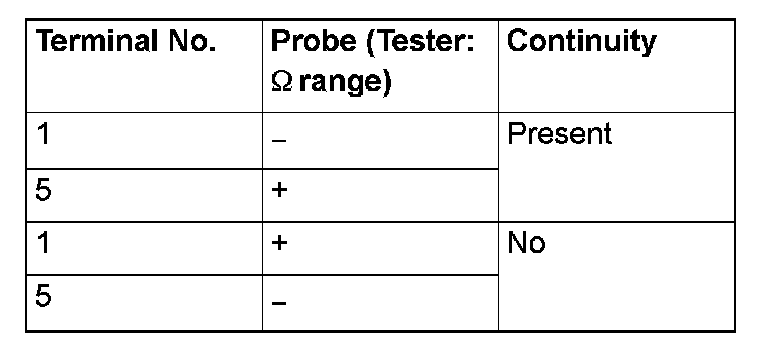

1. Check the continuity between the AWC switch connector terminals.








2. When other than above, replace the AWC switch.

[EXCEPT VEHICLES WITH STEERING WHEEL VOICE CONTROL SWITCH]

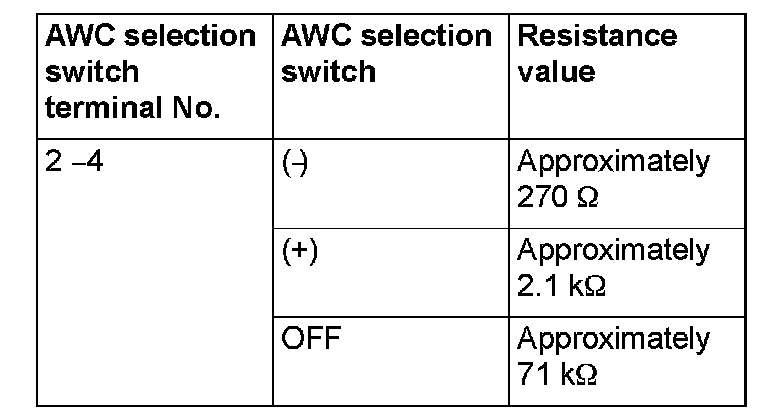

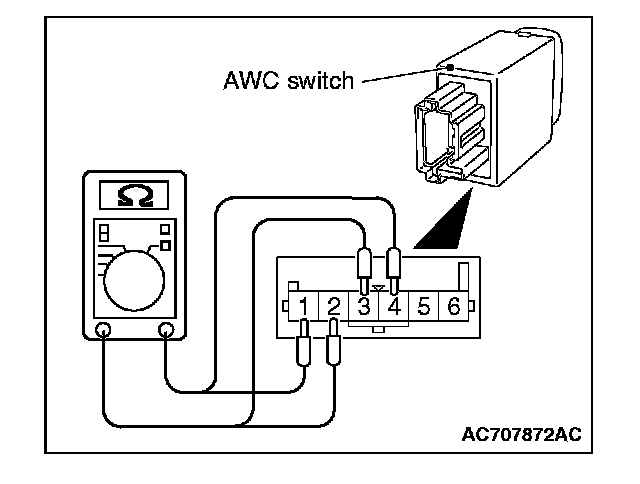

1. Check the resistance and continuity between the AWC switch connector terminals.











2. When other than above, replace the AWC switch.
