Freeze Frame Data Check

FREEZE FRAME DATA CHECK
Data of when the diagnostic trouble code is determined is obtained, and the status of S-AWC is stored. By analyzing each data using the scan tool, troubleshooting can be carried out efficiently.
Display items of the freeze frame data are as follows.

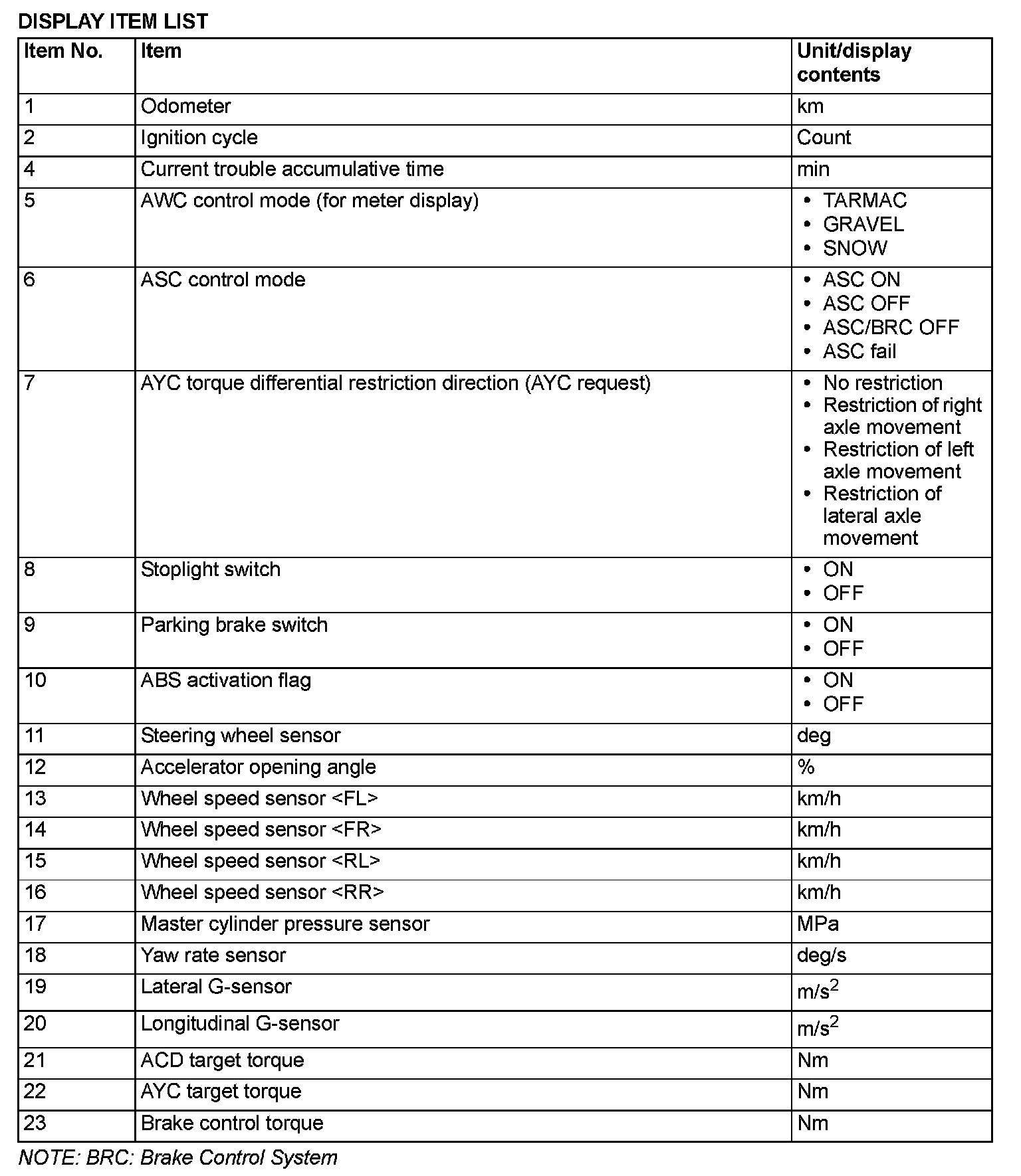

DISPLAY ITEM LIST
