Fail-Safe Function

FAIL-SAFE FUNCTION
If an abnormality occurs to the signal of sensors, switches, solenoids, or others, the AWC-ECU performs a control for the driver safety and system protection. The control contents are as follows.

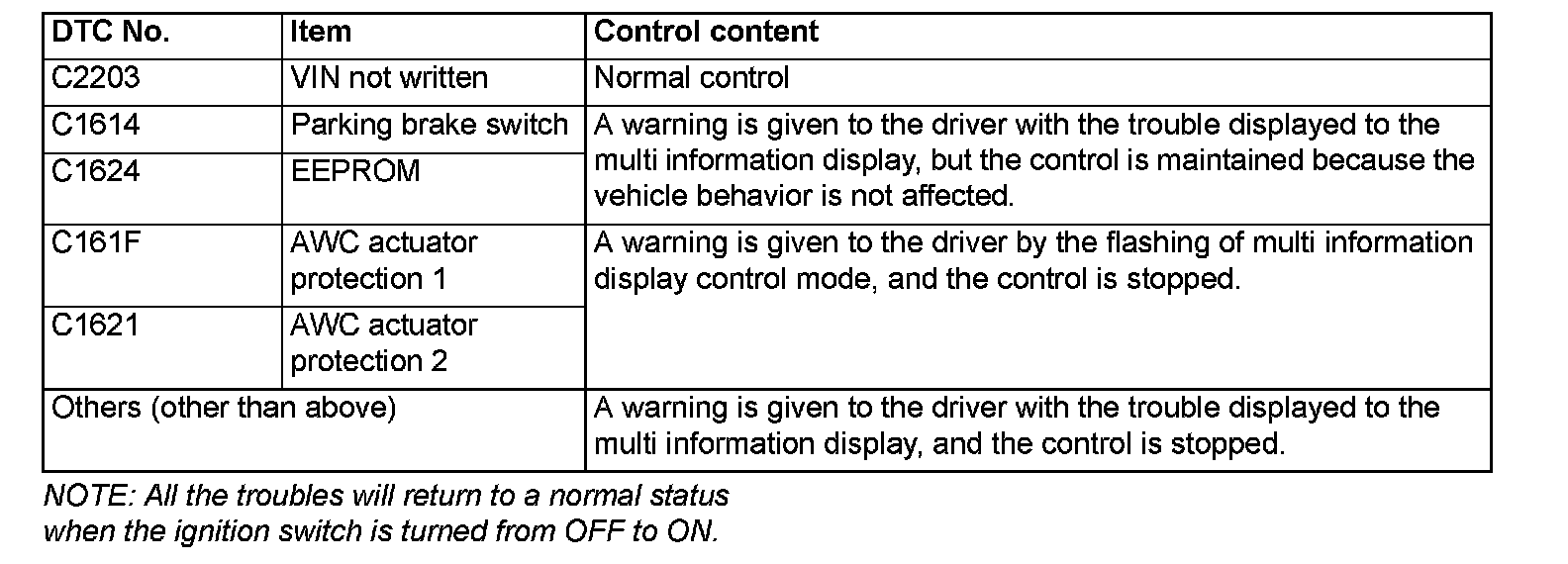

FAIL-SAFE REFERENCE TABLE

C161F-C2203:
