Inspection

INSPECTION

REVERSE IDLER GEAR

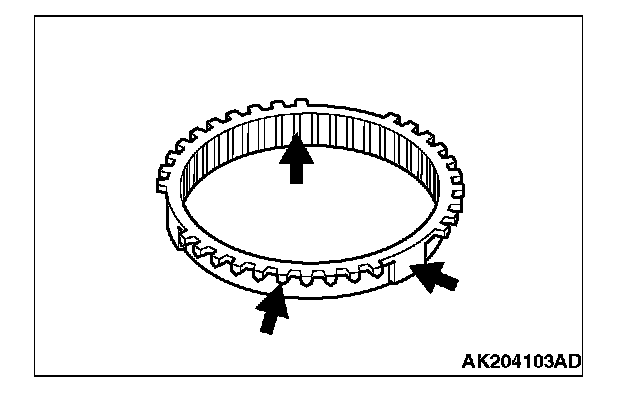

1. Check that the synchronizer ring clutch gear teeth are free of damage.
2. Check that the inside surface of the synchronizer ring cone is free of damage and wear.
3. Check that the synchronizer ring and synchronizer key are not damaged or worn in the contact surface.
4. Press the synchronizer ring against the gear and check clearance "A". If "A" is less than the limit value, replace the synchronizer ring.
Limit: 0.5 mm (0.02 inch)

NEEDLE BEARING
1. Assemble the needle bearing with the reverse idler shaft and gear, and check that the bearing rotates smoothly without noise or play.
2. Check that needle bearing retaining sleeve for deformation.

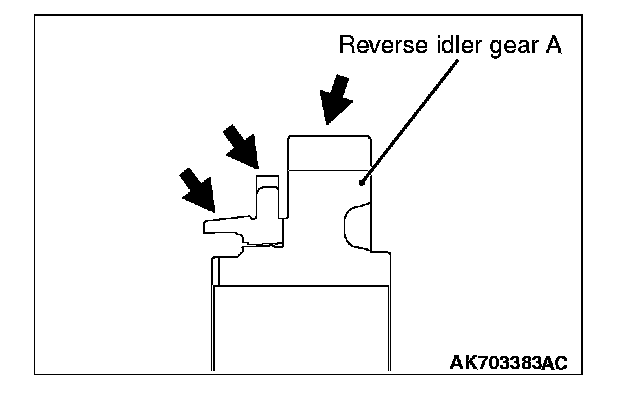

REVERSE IDLER GEAR





1. Check that the helical gear and the tooth surfaces of the clutch gear of the reverse idler gear A are free of damage or wear.
2. Check that the synchronizer ring of the reverse idler gear A is not roughened, damaged or worn in the surface.
3. Check that the helical gear of the reverse idler gear is free of damage or wear.
